Colortrac SmartLF Scan

A REVOLUTION IN PORTABLE SCANNING

Colortrac SmartLF Scan!

The new Colortrac SmartLF Scan is the first truly portable, easy to use, low cost wide format scanner on the market today using Colortracs patented SingleSensor technology at its core!

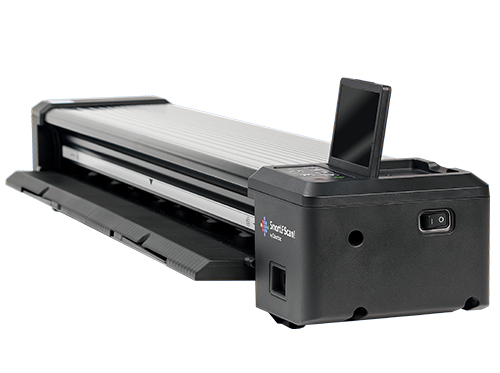

Scanning made simple

The scanner is a self-contained lightweight scanning solution that requires no PC. Simply connect the scanner to a power source and begin scanning.

  • Scan to internal memory
  • Scan to internal memory
  • Scan to network
  • Scan to network
  • Scan to memory stick
  • Scan to USB stick
  • Scan to cloud
  • Scan to cloud

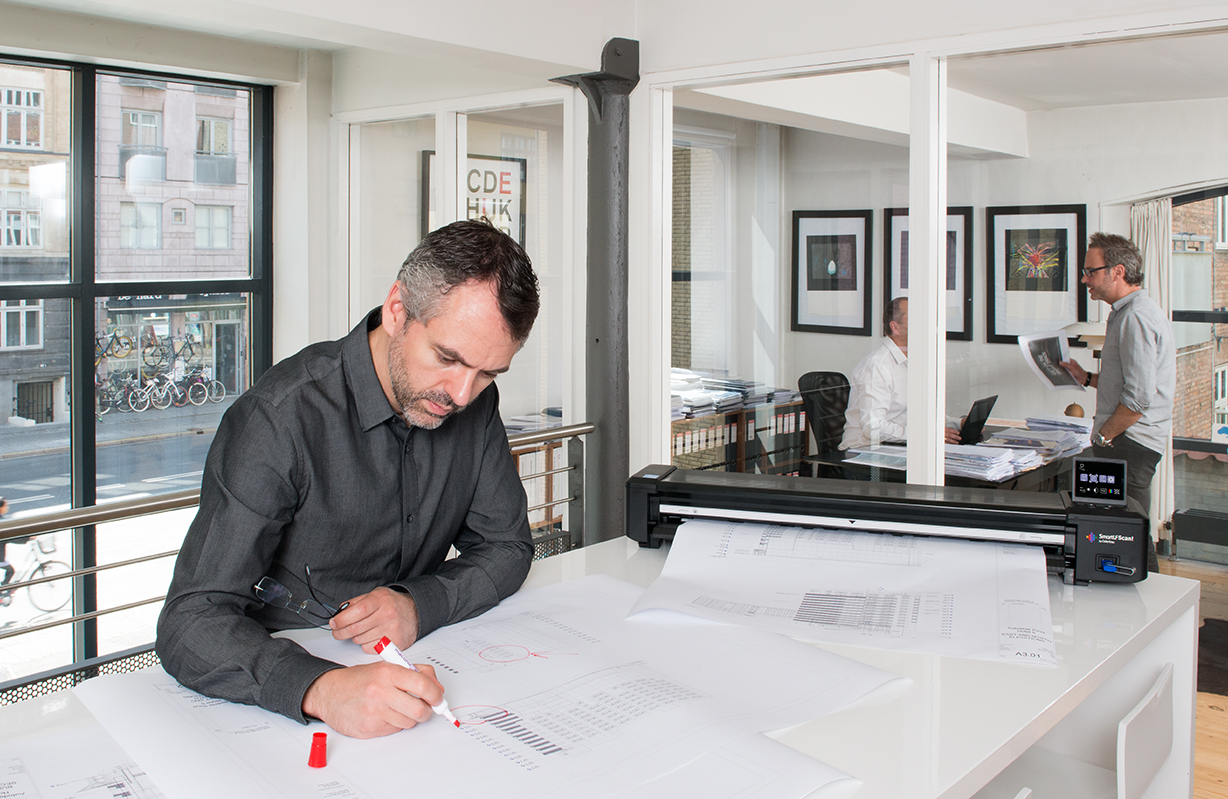

Accurate scans everytime

Using Colortrac's patented SingleSensor technology this ultra lightweight scanning solution produces stunningly accurate scans that can be saved to USB drive, network or internal 6GB storage.

  • 600dpi optical scanning resolution
  • 600dpi optical scanning resolution
  • Scanning speeds of up to 3 inches per second (200 dpi)
  • Scanning speeds of up to 3 inches per second (200dpi colour)
  • Colortrac SingleSensor CIS scanning technology
  • Colortrac SingleSensor CIS scanning technology
  • 6GB internal storage
  • 6GB internal storage

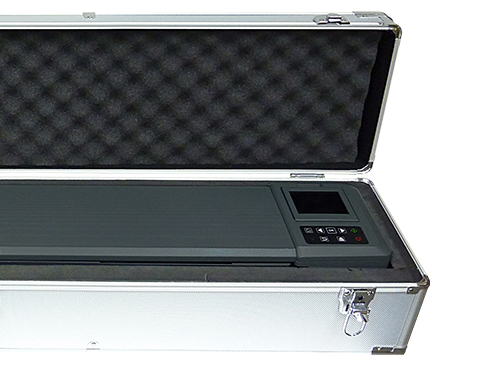

Portable and rubust

Weighing in at only 5.2kg this lightweight device is supplied with a toughened carry case that allows you to transport the device to multiple sites with ease.

  • Lightweight and portable device
  • Lightweight and portable device
  • Robust toughened carry case
  • Robust, toughened carry case

AWARDS / REVIEWS

  • SmartLF Scan! produces the high scan quality the SmartLF brand is known for but in a completely new way. Based on Colortracs patented SingleSensor, SmartLF Scan! is the worlds first completely self-contained large format scanner. Imagine an engineer working on a high pressure project finding it hard to keep up. Thanks to SmartLF Scan! they can now scan and share documents when the need arises, not just when they visit a copy shop
  • Andrew Hand
  • PSW Paper & Print Limited
  • We are very proud of our latest product, SmartLF Scan! and delighted that it has been recognised by the Construction Computing Awards 2016. Feedback from customers shows that SmartLF Scan! is particularly popular because of the flexibility it provides. It is perfect as an office and a mobile scanner. Our customers say they love the fact that it, essentially, provides two products in one
  • Siobhan Scott
  • Product Marketing Manager, Colortrac

SPECIFICATIONS

  • Technical specifications
    • Minimum scan width
      610mm (24") / 914mm (36")
    • Maximum image length
      1270mm (50")
    • Minimum media width
      150mm (6")
    • Minimum media thickness
      0.07mm (0.0003")
    • Optical resolution
      600dpi
    • Scanning accuracy
      0.2% +/- 1 pixel
    • Internal memory
      Approx 6GB or 8 scans
    • SingleSensor digital imaging technology
      SingleSensor is a full width straight-line contact image sensor (US patent #8,922,849)
      Bi-directional long-life LED light system for optimum object illumination and instant-on scanning capability
    • Colour space
      24-bit sRGB and grayscale (plus bi-tonal using the pc connection)
    • Scan speeds (maximum at 200dpi)
      4.5 inch/sec (114.3mm/sec) grayscale and 3 in/sec (76.2mm/sec) for colour
    • Paper path
      Centered, face-up, front entry
    • Data interfaces
      Front: USB 2 socket for scan to USB memory stick.
      Rear: Ethernet RJ45 GBit for scan to computer over network
  • Power and operating requirements
    • Power requirements and consumption
      External power supply Input: 100~240VAC, 50-60Hz, auto-sensing +/-10%, Output: 3.42A at 19V, Scanner power consumption: 19.4 W (scanning), 10.2W (standby), 0.05W (sleep). Energy Star qualified
    • Environment
      Operating temperature 10C 35C
      Relative Humidity 10% 90% (non-condensing)
    • Certifications
      ENERGY STARqualified, CB, CE, CCC, FCC, UL, RoHS compliant
  • Dimensions and weights
    • Weight & dimensions, - 610mm

      Scanner only 11.5 lbs (5.2 kg)
      34.3 x 6.3 x 5 inches (870 x 160 x 126 mm)
      Scanner inc case: 22.3 lbs (10.1 kg)
      38.6 x 10.4 x 8.2 inches (980 x 265 x 208 mm)

    • Weight & dimensions - 914mm
      Scanner only 11.5 lbs (5.2 kg)
      34.3 x 6.3 x 5 inches (870 x 160 x 126 mm)
      Scanner inc case: 22.3 lbs (10.1 kg)
      38.6 x 10.4 x 8.2 inches (980 x 265 x 208 mm)

    • Media thickness
      Up to 11.8 mil

  • Whats included
    • included in box
      Scan! large format scanner, Tough wheeled carry case, Mains external power supply, Calibration target, RJ45 Ethernet cable
    • Warranty
      12 months or 30,000 linear scan metres

  • Scan software
    • Scan format
      Scan formats are viewable using native Windows Apps. A small Windows program is supplied to receive live or stored scan files from the scanner. This is not required for scan to USB stick operation. PDF files are opened automatically (needs PDF viewer).
    • Scan system

      Six modes of operation.

      PDF, JPG and TIF files are generated inside the scanner. They can be

      1 - Stored in the scanner for transfer later
      2 - Stored directly to USB stick
      3 - Transferred directly to PC
      4 - Transferred directly to networked PC
      5 - Send via e-mail using your iPhone or iPad
      6 - Stored in the Cloud using your iPhone or iPad

      When connected to a PC, additional black and white binary files are available. SmartLF Scan! is self-contained and only requires a power supply to operate.
