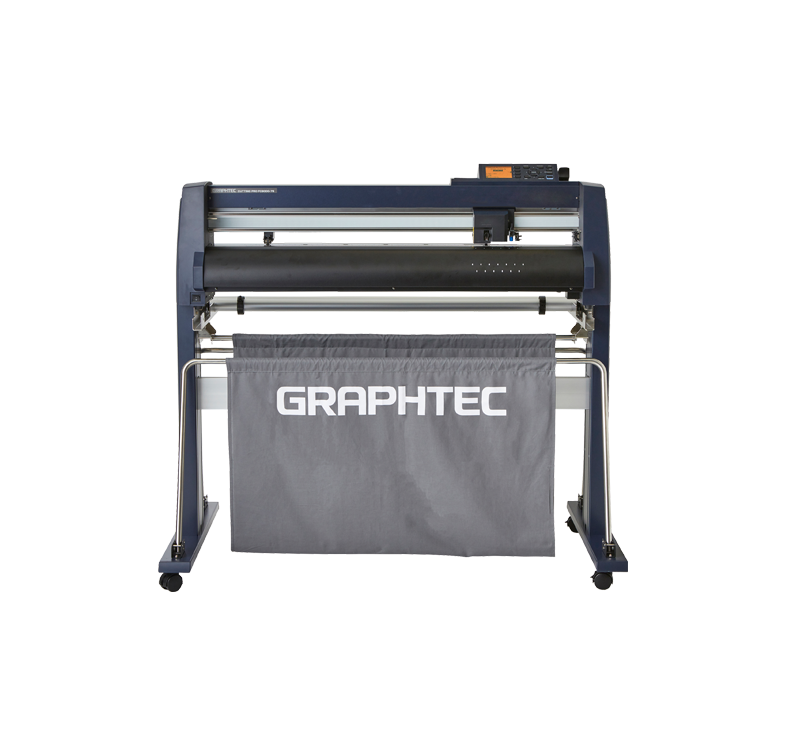

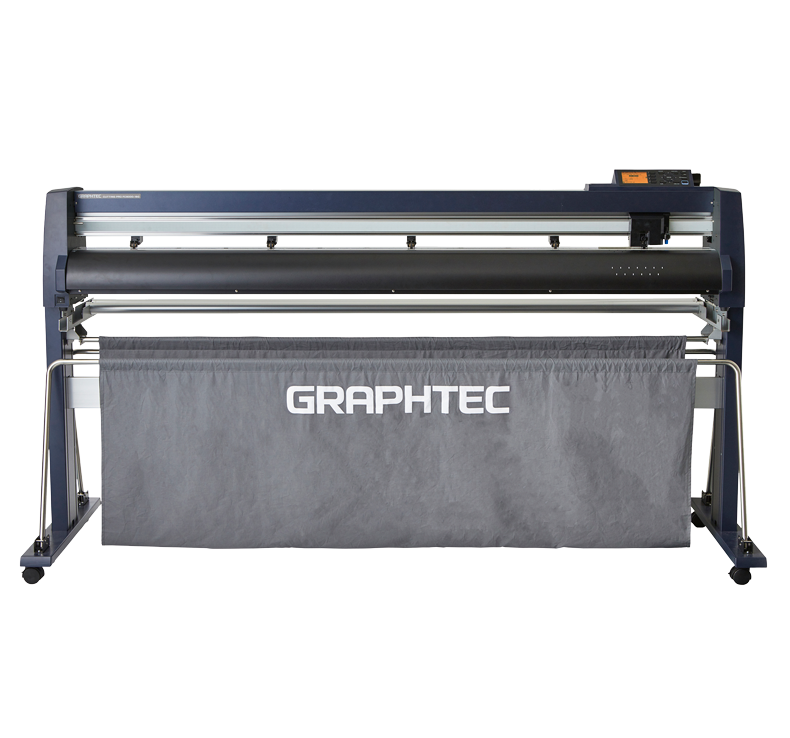

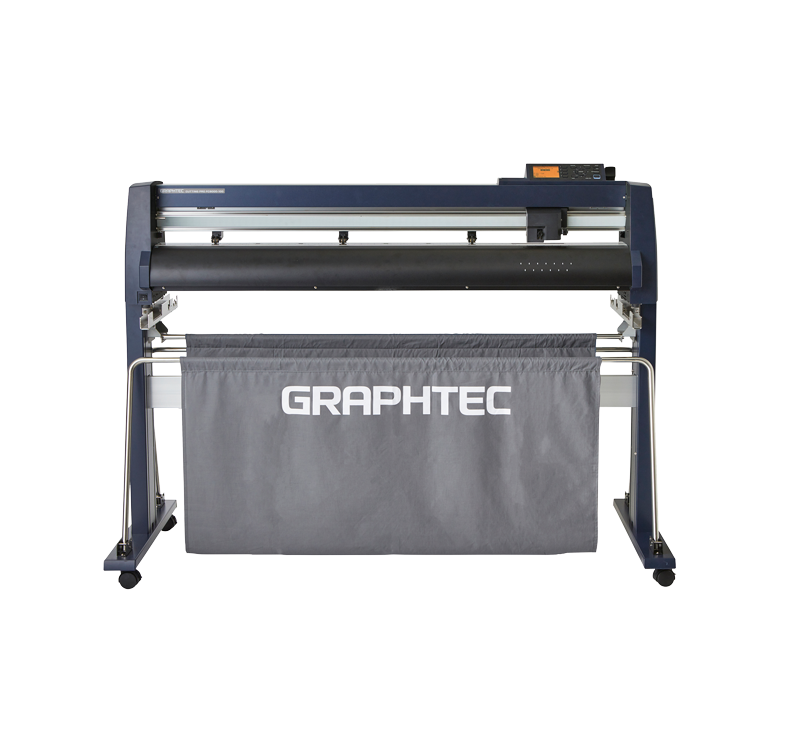

Graphtec FC9000 Series Cutters

ENGINEERED TO PERFORM

Graphtec FC9000 Series Cutters

Revered around the world for its dependable, high precision cutting capabilities with both printed and unprinted materials, the FC series is the ultimate finishing solution for the wide-format signage, apparel, and automotive industries.   With its unmatched cutting speed, powerful head pressure and professional-grade cutting software the FC raises the bar in performance, usability, and functionality.

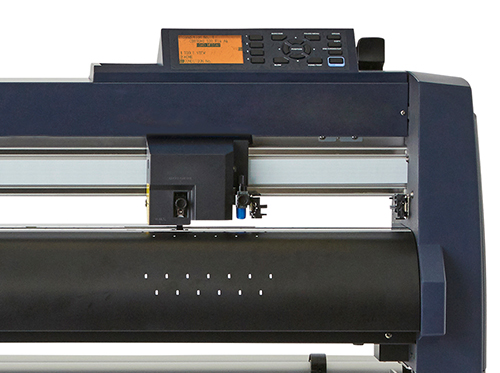

Unparalleled accuracy and speed

Featuring a high precision computer-controlled cutting head with up to 600 grams of cutting force, the Graphtec FC9000 series combines superior cutting accuracy with high-speed production capabilities unparalleled by its competitors.

  • Up to 600 grams of cutting force
  • Up to 600 grams of cutting force
  • 0.25mm cutting accuracy
  • 0.025mm cutting accuracy
  • Up to 1410mm/sec diagonal cutting speed
  • Up to 1485mm/sec diagonal cutting speed
  • Drag knife cutting head with tangential emulation
  • Drag knife cutting head with tangential emulation

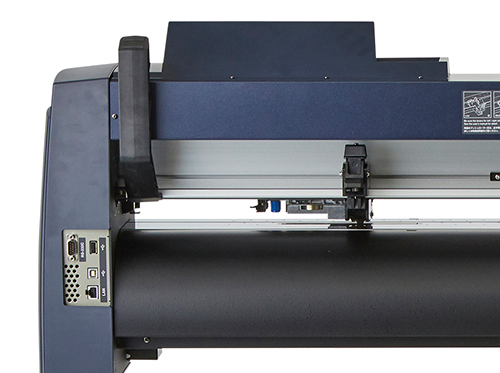

Effortless Operation

The user-friendly and highly intuitive 3.7" LCD control panel and highly versatile job input options allow for quick and effortless operation of the cutter.

  • User friendly 3.7" control panel
  • User friendly 3.7" control panel
  • Cut direct from memory stick
  • Cut direct from memory stick
  • Cut direct from Network
  • Cut direct from Network
  • Cut direct from USB
  • Cut direct from USB

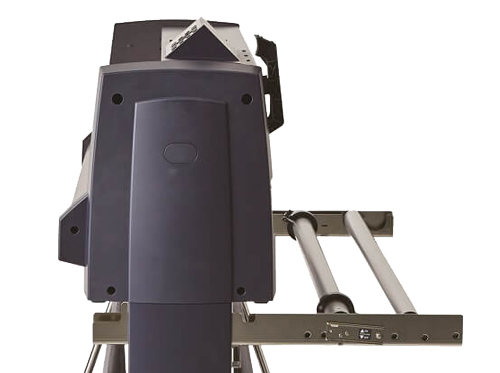

Automate your workflow

The automated features of the FC9000 enable further efficiencies in your production workflow including an advanced registration mark sensing system that enables precise cutting of multiple jobs at the touch of a button and an optional automatic take-up reel for extended production runs.

  • ARMS 8.0 Advanced Sensor
  • ARMS 8.0 Advanced Sensor
  • Automatic cut off knife
  • Automatic cut off knife
  • MediaBasket
  • Media Basket
  • Optional Take Up Reel
  • Optional Take Up Reel

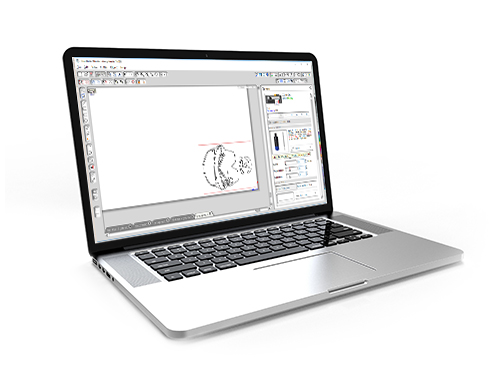

Get the best from your cutter

The F9000 series is supplied with a range of stand-alone and plug-in applications to help speed up the setup process of registration and cutting marks in jobs as well as providing a host of creative design and editing tools.

  • Plug In Application
  • Adobe & Corel Plug In Applications
  • Stand Alone Software Tools
  • Stand Alone Software Tools

AWARDS / REVIEWS

  • The FC9000 has been completely designed to sport a professional, robust, and no-nonsense aesthetic, that paired with its feature-rich and ultra-reliable build enables it to stay one step ahead of the competition.
  • Andrew Hand
  • PSW Paper & Print Limited
  • The FC Series cutting plotter provides a higher level of productivity and greater ease of use than any other cutting plotter on the market today.
  • Ellen Wain
  • Business Development Executive, Graphtec GB
  • The Graphtec FC9000 series premiere cutting plotter offers best in class cutting and plotting capabilities and comes as standard with a new barcode reader for continuous cut capabilities
  • Ellen Wain
  • Business Development Executive, Graphtec GB

SPECIFICATIONS

  • Cutting type
    • Drag knife with Tangential emulation mode
  • Max cutting area (W x L)
    • FC9000-75- 762mm x 50m
      FC9000-100-1067mm x 50m
      FC9000-140- 1372mm x 50m
      FC9000-160- 1626mm x 50m
  • Cutting area of guaranteed accuracy (W x L)
    • FC9000-75- 762mm x 15m
      FC9000-100-1047mm x 10m / 762mm x 15m
      FC9000-140- 1352mm x 10m / 762mm x 15m
      FC9000-160- 1607mm x 10m / 762mm x 15m
  • Max cross cut width
    • FC9000-75- 762mm x 15m
      FC9000-100-1047mm x 10m / 762mm x 15m
      FC9000-140- 1352mm x 10m / 762mm x 15m
      FC9000-160- 1607mm x 10m / 762mm x 15m
  • Max cutting speed
    • 1485mm at 45 degrees direction
  • Axial acceleration
    • 1485mm at 45 degrees direction
  • Cutting force
    • 600g
  • Minimum character size
    • Approx. 5mm alphanumeric (varies depending on character font and media)
  • Mechanical resolution
    • 0.005mm
  • Programmable resolution
    • GP-GL: 0.1 / 0.05 / 0.025 / 0.01mm HP-GL 0.025mm
  • Repeatability
    • Max 0.1mm in plot up to 2m (excluding media expansion and contraction)
  • Number of push rollers
    • FC9000-75- 2 rollers
      FC9000-100- 3 rollers
      FC9000-140- 4 rollers (Optional 5th)
      FC9000-160- 4 rollers (Optional 5th)
  • Number of mountable tools
    • 1 (Optional 2nd)
  • Blade types
    • SuperSteel
  • Pen types
    • Oil-based ballpoint pen, Water-based fibre-tip pen
  • Media types
    • Thickness of 0.25mm or less, Marking Film (PVC Film / Fluorescent / Reflective)
      Polyester Film,High-intensity Film (Diamond grade, Engineering grade)
  • Display
    • Graphic type LCD with back-light (240 dots x 128 dots), supports 10 languages
  • Interface
    • USB 2.0 (full speed)
      Ethernet 10BASE-T/100BASE-TX
  • Buffer Memory
    • 2MB
  • Command Sets
    • GP-GL / HP-GL (set by command or auto-detect)
  • Compatible OS
    • Windows 10 / 8.1 / 7
      Mac OS X 10.6 - 10.11
      Mac OS X 10.12 - 10.14
      Graphtec Studio 10.6 - 10.14
      Cutting Master 4 10.7 - 10.14
  • Supported software
    • Graphtec Pro Studio (Windows)
      Graphtec Studio (Mac)
      Cutting Master 4
      Windows Driver
  • Power source
    • 100V to 240V AC, 50/60Hz
  • Power consumption
    • Max 120W
  • Operating environment
    • 10to 35 C, 35 to 75% RH (non-condensing)
  • Guaranteed accuracy environment
    • 10to 32 C, 35 to 70% RH (non-condensing)
  • External dimensions
    • FC9000-75- 1360mm x 1151mm x 1232mm
      FC9000-100- 1665mm x 1151mm x 1232mm
      FC9000-140- 1970mm x 1151mm x 1232mm
      FC9000-160- 2224mm x 11151mm x 1232mm
  • Weight
    • FC9000-75- 49kg
      FC9000-100- 56kg
      FC9000-140- 64kg
      FC9000-160- 70kg
  • Safety
    • PSE, UL/cUL, CE mark
  • EMC
    • VCCI Class A, FCC Class A, CE mark
  • Standard accessories
    • Power Cord, 2.9m USB Cable, 0.9mm Cutting Blade Holder, 0.9mm 45 Cutting Blade, Loupe, Fibre Tip Pen Holder, Water-based Fibre Tip Pen, Floor Stand, Media Stocker, Media Basket, Graphtec Pro Studio (Windows Single Licence), Graphtec Studio (Mac Single Licence), Cutting Master 4, Windows Driver, User Manuals, Printed Documentation
  • Optional Accessories
    • Automatic Take Up Roller, Additional Push Roller Kit, Second Pen Holder, Flange Set for Media Holding, Graphtec Pro Studio Plus (Single Licence), Graptec Pro Studio Plus for Rhinestone (Single Licence), Graphtec Pro Studio Plus for Auto-Nesting
