HP DesignJet T1600 Series Printer

EXTRAORDINARY PRINTING PERFORMANCE

HP DesignJet T1600 Series Printer

Showcase design versatility from precise line drafts to boldly coloured 3D renders with the compact and powerful HP DesignJet T1600 series. This highly productive printer can produce 180 A1 prints per hour that can be collected in its high capacity integrated stacker.

Empower your workforce

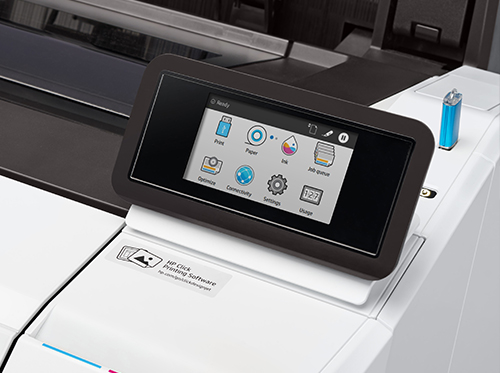

With a highly intuitive touchscreen interface and a range of mobile, tablet and desktop apps, empower your workforce with a printer that can help your business grow.

  • High resolution touchscreen interface
  • High resolution touchscreen interface
  • Print direct from memory stick
  • Print direct from memory stick
  • WiFi enabled
  • WiFi enabled
  • Manage prints from your mobile device
  • Manage prints from your mobile device

Designed to deliver

Deliver precise and highly accurate prints everytime thanks to HP's revolutionary thermal inkjet printhead technology and 6 colour dye/pigment ink set.

  • 2400 x 1200 dpi print resolution
  • 2400 x 1200 dpi print resolution
  • 6 Colour Dye/Pigment Ink
  • 6 Colour Dye/Pigment Ink
  • HP Thermal inkjet print technology
  • HP Thermal inkjet print technology

Meet the tightest of deadlines

Sporting two auto-switching heavy-duty roll feeds and high capacity ink cartridges. This highly robust printer is capable of handling the most demanding of print environments.

  • Smart switching dual roll feed
  • Smart switching dual roll feed
  • Print speeds of up 180 square meter per hour
  • Print speeds of up to 180 square meters per hour
  • Integrated 100 sheet output stacker
  • Integrated 100 sheet output stacker

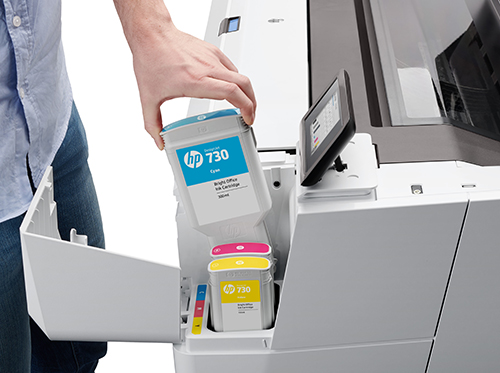

  • High capacity 130ml or 300ml ink cartridges
  • High capacity 130ml or 300ml ink cartridges

Worlds most secure printer

Protect your important documentation and data in the cloud with the worlds most sucure printer that contains a host of security features including HP Secure boot and user authentication.

  • Secure user authentication
  • Secure user authentication
  • HP secure boot
  • HP secure boot

AWARDS / REVIEWS

  • 7 out of 10 architects are being regularly interrupted during work to print for colleagues. This seemingly small challenge means there is friction that is holding them back from the next great project. HP is leading the transformation in Large Format for small to medium-size businesses so the workplace printing experience feels as smart and easy as it does at home, enhanced with security for peace-of-mind
  • Guayente Sanmartn
  • General Manager and Global Head.
  • Its amazing to bring the most advanced HP printing technologies to support the teamwork of architects and engineers designing and building the future.
  • Guayente Sanmartn
  • HP Large Format Design Printing, HP Inc

SPECIFICATIONS

  • Model Sizes
    • 914mm
  • Functions
    • Print
  • Print speeds
    • Print time (A1, Economode)
      19.3 sec/page
    • Prints per hour (A1, Economode)
      180 A1 prints
  • Memory Specifications
    • Memory
      128GB (file processing)
    • Internal storage
      500GB self encrypting hard disk
  • Technical Specifications
    • Print quality (best)
      Colour: Up to 2400 x 1200dpi optimised dpi
    • Print technology
      HP Thermal Inkjet
    • Number of print cartridges
      6 (cyan, magenta, yellow, photo black, grey, matte black)
    • Ink droplet size
      5.5pl (cyan, magenta, yellow, photo black, grey)
      12pl (matte black)
    • Printheads
      1 (cyan, magenta, yellow, photo black, grey)
    • Ink types
      Dye-based (C,M,Y,pK,G)
      Pigment-based (mK)
    • Printhead nozzles
      1376
    • Non-printable area (cut-sheet)
      3mm x 22mm x 3mm x 3mm
    • Non-printable area (roll-feed)
      3mm x 3mm x 3mm x 3mm
    • Guaranteed minimum line width
      0.02 mm
    • Line accuracy
      +/- 0.1%
  • Paper handling
    • Finished output handling
      Sheet feed, front-loading roll feed, roll switching, integrated 100 page output stacker, media bin, automatic horizontal cutter
    • Media types
      Bond and coated paper (bond, coated, heavyweight coated, recycled, plain, bright white), technical paper (natural tracing, vellum), film (clear, matte), photographic paper (satin, gloss, semigloss, premium, polypropylene), self-adhesive (adhesive, polypropylene)
    • Media weights, recommended
      60 to 328 g/m
      • Media sizes standard (sheet size)
        210 x 279mm to 914 x 1219mms
      • Media sizes standard (roll size)
        279mm to 914mm
      • Media thickness
        Up to 11.8 mil
  • Connectivity
    • HP ePrint capability
      Yes
    • Printing interfaces
      Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi
    • Connectivity
      Gigabit Ethernet (1000 Base-T)
      Hi-Speed USB 2.0 certified
      Wi-Fi Direct
    • Print languages (standard)
      PostScript Printer: Adobe PostScript 3, Adobe PDF 1.7, HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4; Non-PostScript Printer: HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4
    • Print languages (optional)
      Non-PostScript Printer: Adobe PostScript 3, Adobe PDF 1.7
    • Mobile printing features
      Direct print from mobile apps on iOS, Android, and Chrome OS; email printing with HP ePrint and HP Smart app for iOS and Android
    • Drivers
      PostScript Printer: Raster, PostScript and PDF drivers for Windows, AirPrint for macOS; Non-PostScript Printer: Raster drivers for Windows, AirPrint for macOS
  • Power and operating requirements
    • Power consumption
      100 watts (printing), < 36 watts (ready), < 1 watt (sleep), 0.3 watts (off)
    • Operating temperature range
      5 to 40C
    • Operating humidity range
      20 to 80% RH
  • Warranty
    • Warranty
      One-year limited warranty. Warranty and support options vary by product, country and local legal requirements.
  • What's included
    • Software
      HP Click, HP mobile, ePrint and iOS/Android support plus the HP Smart app for mobile, HP Web Jetadmin, HP JetAdvantage Security Manager, HP SmartTracker (optional)
    • What's in the box - HP Designjet T1600
      HP DesignJet T1600 Printer, roll feed, printer stand and media bin, spindle, printheads, introductory ink cartridges, user guide, power cords
    • What's in the box - HP Designjet T1600dr
      HP DesignJet T1600 Printer, dual roll feed, printer stand and media bin, spindles, printheads, introductory ink cartridges, user guide, power cords
    • What's in the box - HP Designjet T1600 PS
      HP DesignJet T1600 Printer, postscript, printer stand and media bin, spindle, printheads, introductory ink cartridges, user guide, power cords
    • What's in the box - HP Designjet T1600dr PS
      HP DesignJet T1600 Printer, postscript, dual roll feed, printer stand and media bin, spindles, printheads, introductory ink cartridges, user guide, power cords
