A BREAKTHROUGH IN INNOVATION

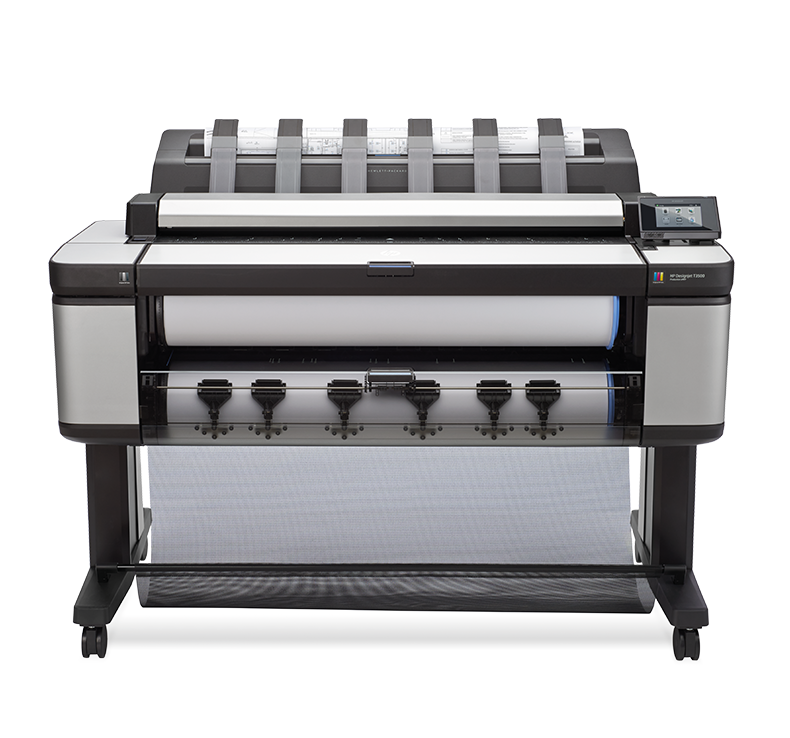

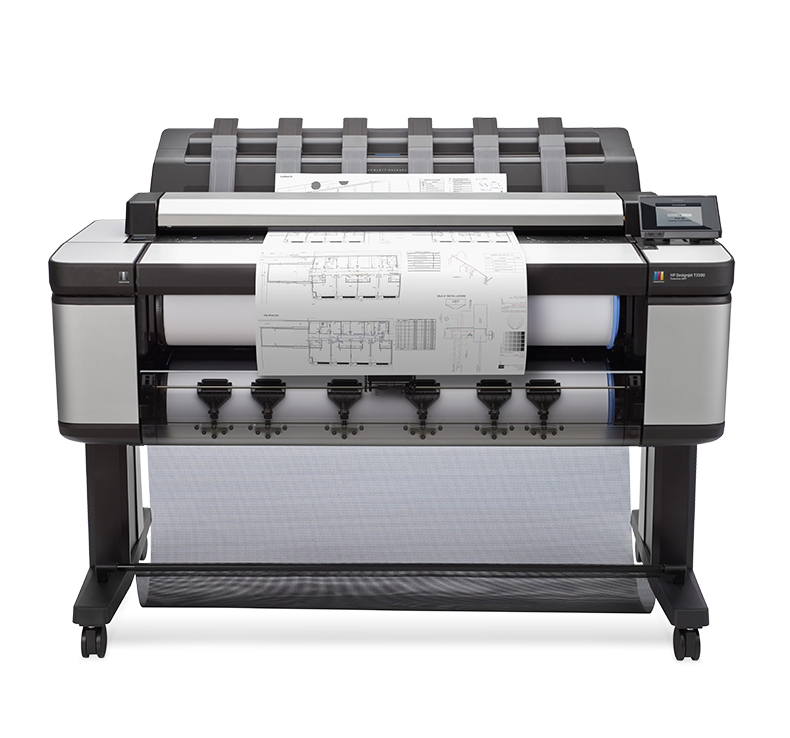

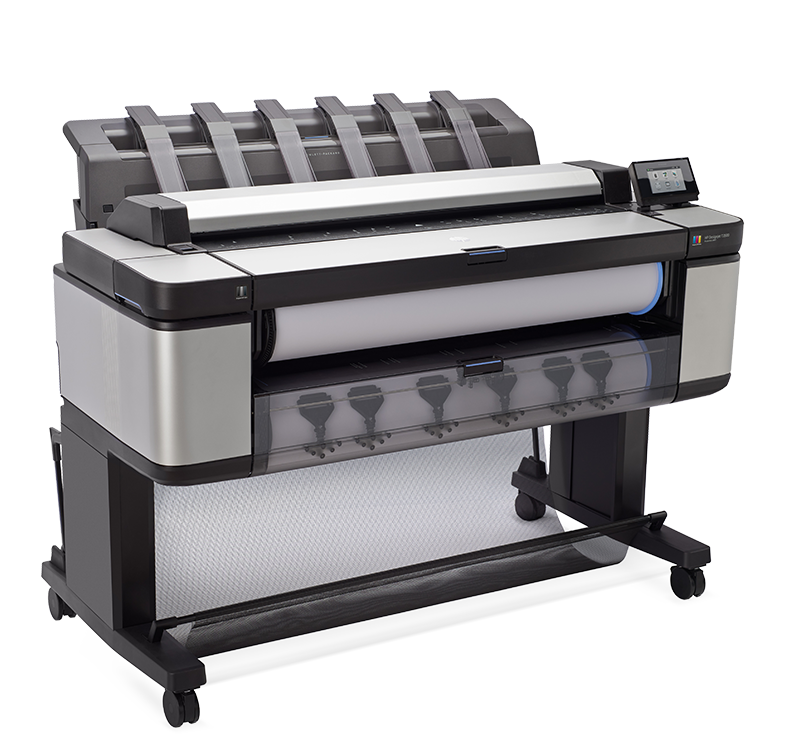

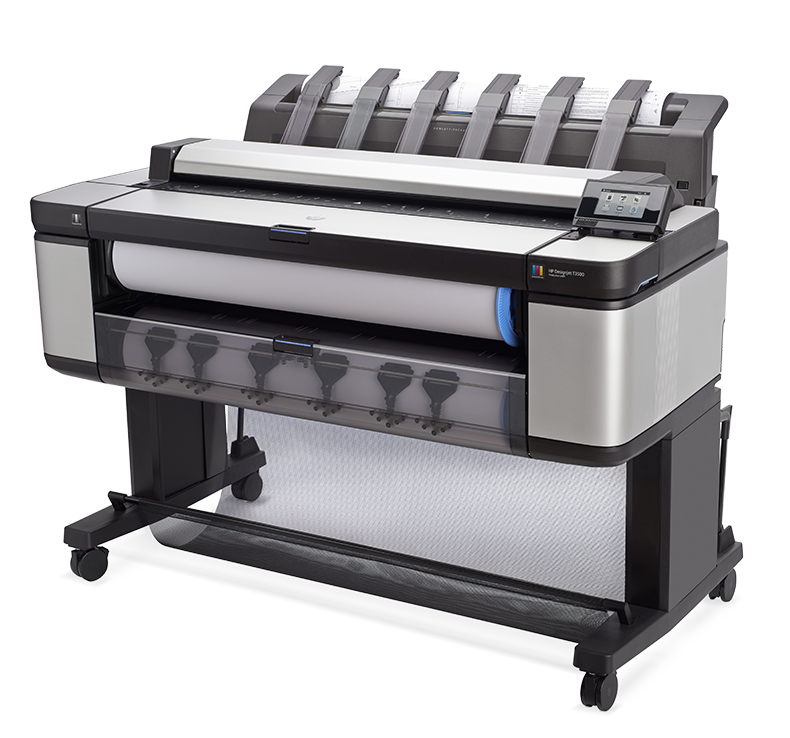

HP DesignJet T3500 eMultifunction Printer
Designed for large workgroups and print service providers the HP Designjet T3500 eMultifunction Production printer is the most productive printer/copier/scanner on the market today. Developed from the recommendations and demands of the printing and IT industry this revolutionary device is a breakthrough in innovation, form and function.
Built for high volume printing
Sporting two auto-switching heavy-duty roll feeds and high capacity ink cartridges. This highly robust printer is capable of handling the most demanding of print environments.
- Heavy Duty smart-switching dual-roll feed
- High Capacity 300ml Ink Cartridges
- Integrated 100 sheet output stacker

Easy and intuitive operation
A highly intuitive and easy to navigate touchscreen interface allows for complete control and operation of this eMultifunction printer.
- High resolution touchscreen interface
- Print direct from memory stick
- WiFi enabled
- Manage scans from your tablet or mobile device

Exceptional print quality
Achieve exceptional print quality and colour accuracy at speed thanks to HPs 6 colour dye/pigment ink set and HP Thermal Inkjet printhead technology.
- 2400 x 1200 dpi print resolution
- Print speeds of up 21 seconds per A1 print (economode)
- 6 Colour (C,M,Y,G,pK,mK) Dye & Pigment Ink
- HP Thermal inkjet print technology

High speed scanning
Copy and scan quickly with advanced features and efficient workflow tools such as batch scanning, multi-page PDFs, scan to network or scan to email.
- 600dpi optical scanning resolution
- Scanning speeds of up to 2.5 inches per second (200dpi colour)
- CIS scanning technology
- Intel Core i5 processor

AWARDS / REVIEWS
- HP multifunction printers open new ways to help professional teams communicate and collaborate using a single device. Our customers are increasingly demanding solutions that enable them to share easily, including agile transitions from digital to hard copy and back. Its amazing to bring the most advanced HP printing technologies to support the teamwork of architects and engineers designing and building the future.
- Guayente Sanmartn
- General Manager and Global Head, HP Inc
- Architectural drawings are at the heart of what we do as contractors, and getting them to the site quickly is key. However, outsourcing our large-format printing was causing delays and costing money. HPs innovative new large-format printers and MFPs simplify collaboration with next-level features and mobile printing capabilities to meet this blended reality and print whatever and wherever AEC professionals need.
- Neil Geraghty
- Duke Construction.
- HP multifunction printers open new ways to help professional teams communicate and collaborate using a single device. Our customers are increasingly demanding solutions that enable them to share easily, including agile transitions from digital to hard copy and back. Its amazing to bring the most advanced HP printing technologies to support the teamwork of architects and engineers designing and building the future.
- Guayente Sanmartn
- General Manager and Global Head, HP Inc
- Architectural drawings are at the heart of what we do as contractors, and getting them to the site quickly is key. However, outsourcing our large-format printing was causing delays and costing money. HPs innovative new large-format printers and MFPs simplify collaboration with next-level features and mobile printing capabilities to meet this blended reality and print whatever and wherever AEC professionals need.
- Neil Geraghty
- Duke Construction.
- HP multifunction printers open new ways to help professional teams communicate and collaborate using a single device. Our customers are increasingly demanding solutions that enable them to share easily, including agile transitions from digital to hard copy and back. Its amazing to bring the most advanced HP printing technologies to support the teamwork of architects and engineers designing and building the future.
- Guayente Sanmartn
- General Manager and Global Head, HP Inc
- Architectural drawings are at the heart of what we do as contractors, and getting them to the site quickly is key. However, outsourcing our large-format printing was causing delays and costing money. HPs innovative new large-format printers and MFPs simplify collaboration with next-level features and mobile printing capabilities to meet this blended reality and print whatever and wherever AEC professionals need.
- Neil Geraghty
- Duke Construction.
SPECIFICATIONS
- Model size
- 914mm
- Functions
- Print, copy, scan
- Speed specifications
- Print time line drawing
(economode, A1 plain paper)
21 sec/page - Print speed line drawing
(economode, A1 plain paper)
120 A1 prints per hour - Linear scan speed
Up to 63.5mm/sec (200dpi colour)
Up to 190.5mm/sec (200dpi greyscale) - Memory
- Memory
128GB (virtual) - Internal storage
Standard, 500GB (AES-256 encrypted, FIPS 140-2 Level 2 certified) - Technical specifications
- Print quality (best)
Colour: Up to 2400 x 1200dpi optimised dpi - Print technology
HP Thermal Inkjet - Number of print cartridges
6 (cyan, gray, magenta, matte black, photo black, yellow) - Ink types
Dye-based (C,G,M,pK,Y) Pigment-based (mK) - Non-printable area (cut-sheet)
3mm x 22mm x 3mm x 3mm - Guaranteed minimum line width
0.07mm (ISO/IEC 13660:2001 (E)) - Line accuracy
0.1% - Maximum optical density (black)
6 L* min/2.10 D - Scan resolution, optical
Up to 600dpi - Scanner type
Sheet fed, CIS (Contact Image Sensor) - Scan size, maximum
914mm x 8000mm (JPEG)
610mm x 15000mm (TIFF)
914mm x 5000mm (PDF) *
* with optional PostScript upgrade - Scan size, minimum
210mm x 297mm - Copy reduce/enlarge settings
50 to 400% in 1% increments - Copies, maximum
Up to 99 copies - Bit Depth
24-bit/8-bit - Power and operating requirements
- Power consumption
< 120 watts (printing); < 2 watts / < 7 watts with embedded digital front end (sleep); 0 watts (off); 12 Wh per A0 (per print) - Energy eficiency
ENERGY STAR QUALIFIED - Operating temperature range
5 to 40C - Operating humidity range
20 to 80% RH
- Paper Handling
- Finished output handling
Input: two automatic front-loading roll feeds, smart roll switching, rolls up to 200 m long each and 180 mm of diameter, sheet feed
Output: integrated output stacker (from A4 to A0, with up to 100 A1-size capacity), media bin, automatic cutter
Scanner: straight-through scan paper path for sheet and cardboard originals - Media types
Bond and coated paper (bond, coated, heavyweight coated, super heavyweight plus matte, coloured), technical paper (natural tracing, translucent bond, vellum), film (clear, matte, polyester), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive (two-view cling, indoor paper, polypropylene, vinyl) - Media weights, recommended
60 to 328 g/m2 - Media sizes standard (metric rolls)
210 to 914mm wide sheets
279 to 914mm rolls - Media sizes, custom
210 x 279 to 914 x 1219mm - Roll external diameter
180mm - Media thickness
Up to 0.5mm
- Connectivity
- HP ePrint capability
Yes - Printing path
HP Designjet SmartStream (optional), printer driver, HP Embedded Web Server, direct printing from USB flash drive, email printing - Connectivity
Gigabit Ethernet (1000 Base-T), supporting the following standards: TCP/IP, BootP/DHCP (IPv4 only), DHCPv6, TFTP (IPv4 only(, SNMP (v1, v2c, v3), Apple Bonjour Compatible, FTP, WS Discovery, Embedded Web Server (HTTP, HTTPS), IPsec, SMTP (email), Raw IP printing (9100, 9101, 9102),LPD, IPP, WS print, NTLM, NTLM v2, SSL/TLS, 802.1X authentication (WEP, WPA, WPA2, LEAP, PEAP, EAP-TLS) - Print languages
HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP PCL 3 GUI - Dimensions and weight
- Dimensions (W x D x H)
1400 x 784 x 1109 mm - Weight
114 kg - What's included
- Warranty
90 days or two-year limited warranty. Warranty and support options vary by product, country and local legal requirements. - What's in the box
HP DesignJet T3500 Production Multifunction Printer; printhead; introductory ink cartridges; stacker; scanner calibration sheet; printer stand and media bin; spindles; 3 inch spindle adapter kit (x2); quick reference guide; setup poster; startup software; power cord - Software included
HP Utility for Mac
HP DesignJet Utility for Windows
