HP DesignJet T530 Series Printer

THE PERFECT FIT FOR YOUR OFFICE AND BUDGET

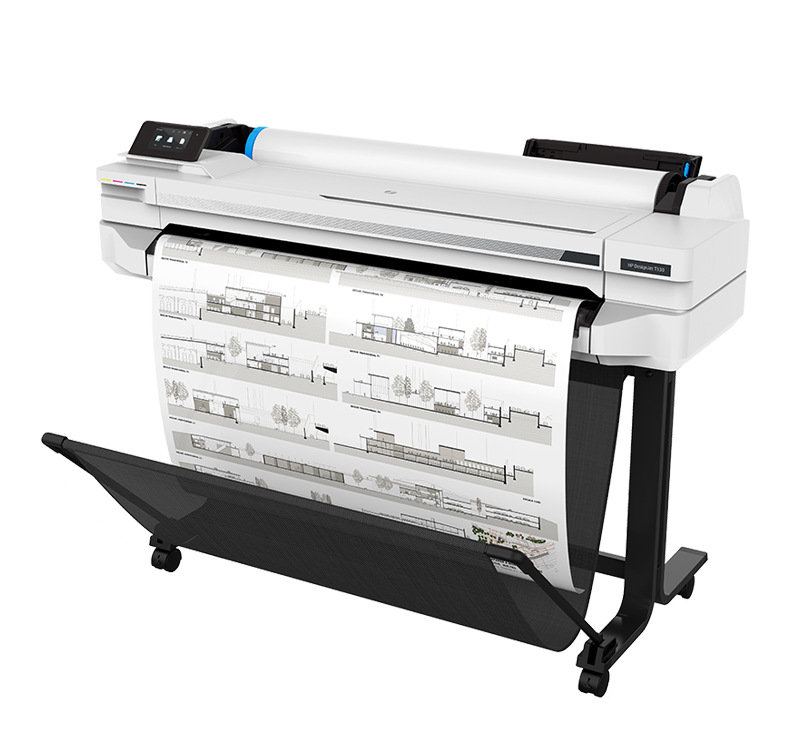

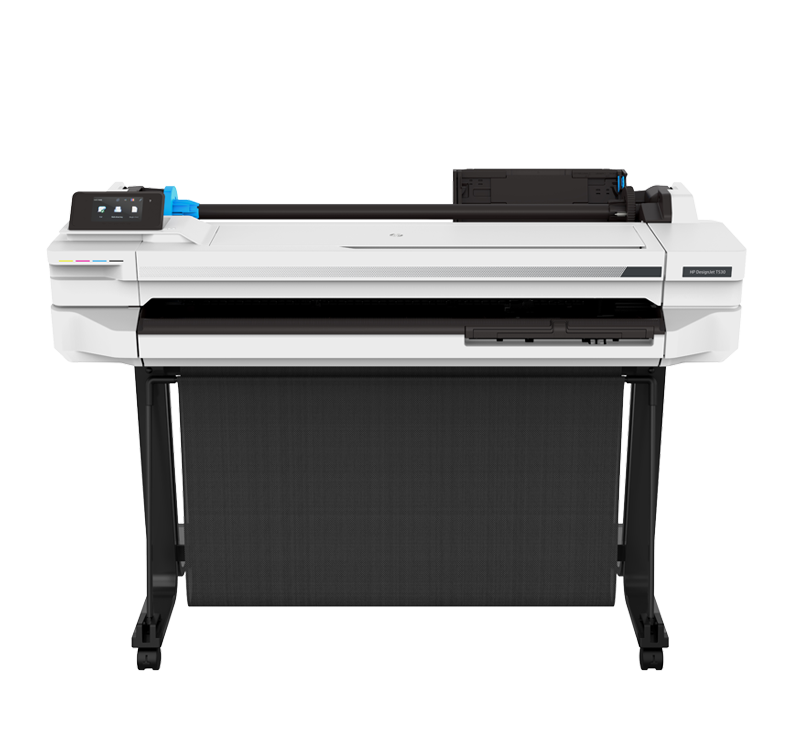

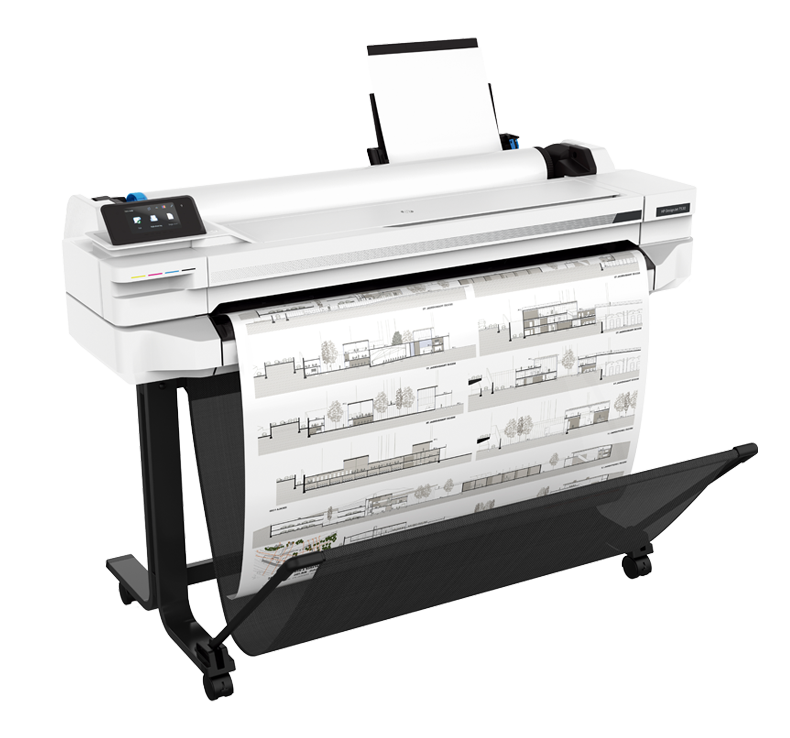

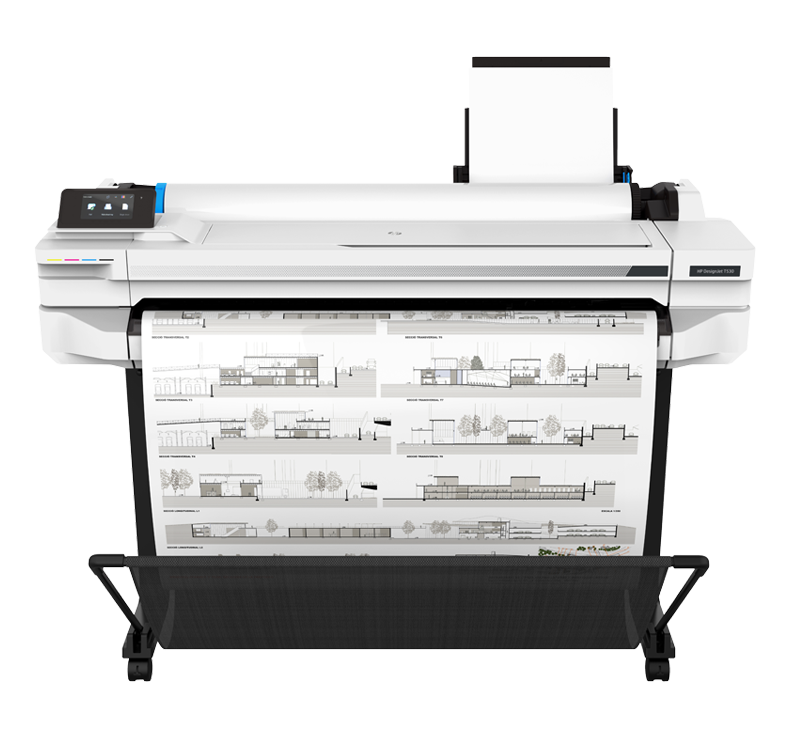

HP DesignJet T530 Series Printer

Designed to fit your budget and space this radically simple and easy to use DesignJet printer produces precise and stunningly accurate CAD and technical drawings in as little as 27 seconds.

Smart and compact design

This highly compact and powerful DesignJet printer has been specifically designed to fit in offices where space is a premium while not compromising functionality or features. It contains both a front loading roll feed and an auto-loading A4 - A3 sheet document feeder for smaller jobs.

  • Front loading roll feed
  • Front loading roll feed
  • Integrated A4/A3 paper tray
  • Integrated A4/A3 paper tray
  • Small compact design
  • Small compact design

Easy, convenient and intuitive!

Enjoy intuitive user operation thanks to its built in high resolution 4.3 inch touchscreen controls, direct to print USB port and HP click smart app software that enables you to print from any mobile or tablet device.

  • High resolution touchscreen interface
  • High resolution touchscreen interface
  • Print direct from memory stick
  • Print direct from memory stick
  • WiFi enabled
  • WiFi enabled
  • Manage prints from your mobile device
  • Manage prints from your mobile device

The quality you expect from HP

With the HP DesignJet T530 series you'll be able to meet your clients high expectations with high speed A1 size prints in as little as 27 seconds in stunning 2400 x 1200 optimised dpi. And with a combination of true HP-GL/2 print language interpretation and HP bright office inks you will achieve stunningly precise detail and accurate colour representation with every print.

  • 2400 x 1200 dpi print resolution
  • 2400 x 1200 dpi print resolution
  • Print speeds of up 27 seconds per A1 print (economode)
  • Print speeds of up 27 seconds per A1 print (economode)
  • 4 Colour  (C,M,Y,mK) Dye & Pigment Ink
  • 4 Colour (C,M,Y,mK) Dye & Pigment Ink
  • HP Thermal inkjet print technology
  • HP Thermal inkjet print technology

AWARDS / REVIEWS

  • 7 out of 10 architects are being regularly interrupted during work to print for colleagues. This seemingly small challenge means there is friction that is holding them back from the next great project. HP is leading the transformation in Large Format for small to medium-size businesses so the workplace printing experience feels as smart and easy as it does at home, enhanced with security for peace-of-mind
  • Guayente Sanmartn
  • General Manager and Global Head.
  • Its amazing to bring the most advanced HP printing technologies to support the teamwork of architects and engineers designing and building the future.
  • Guayente Sanmartn
  • HP Large Format Design Printing, HP Inc

SPECIFICATIONS

  • Model Sizes
    • 610mm or 914mm
  • Functions
    • Print
  • Print speeds
    • Print time (A1, Economode)
      30 sec/page (610mm) / 27 sec/page (914mm)
    • Prints per hour (A1, Economode)
      76 A1 prints (610mm) / 79 A1 prints (914mm)
  • Memory Specifications
    • Memory
      1GB
    • Internal storage
      None
  • Technical Specifications
    • Print quality (best)
      Colour: Up to 2400 x 1200dpi optimised dpi
    • Print technology
      HP Thermal Inkjet
    • Number of print cartridges
      4 (cyan, magenta, yellow, matte black)
    • Ink droplet size
      5.5pl (cyan, magenta, yellow)
      12pl (matte black)
    • Printheads
      1 (cyan, magenta, yellow, matte black)
    • Ink types
      Dye-based (C,M,Y)
      Pigment-based (mK)
    • Printhead nozzles
      1376
    • Non-printable area (cut-sheet)
      5mm x 5mm x 5mm x 5mm
    • Non-printable area (roll-feed)
      5mm x 5mm x 5mm x 5mm
    • Guaranteed minimum line width
      0.07 mm (ISO/IEC 13660:2001(E))
    • Line accuracy
      +/- 0.1%
  • Paper handling
    • Finished output handling
      Sheet feed, rollfeed, input tray, automatic horizontal cutter
    • Media types
      Bond and coated paper (bond, coated, heavyweight coated, recycled, plain, bright white), technical paper (natural tracing, vellum), film (clear, matte), photographic paper (satin, gloss, semigloss, premium, polypropylene), self-adhesive (adhesive, polypropylene)
    • Media weights, recommended
      60 to 280 g/m2 (roll/manual feed)
      60 to 220 g/m2 (input tray)
  • Paper handling
    • Media sizes standard (metric rolls) - 610mm
      input tray: 210 x 279mm to 330 x 482mm
      279 to 610mm rolls
    • Media sizes standard (metric rolls) - 914mm
      input tray: 210 x 279mm to 330 x 482mm
      279 to 914mm rolls
    • Media thickness
      Up to 11.8 mil
  • Connectivity
    • HP ePrint capability
      Yes
    • Printing interfaces
      Fast Ethernet (100Base-T), Hi-Speed USB 2.0, Wi-Fi
    • Printing path
      Windows printer drivers, HP Print Service Plugin for Android, HP Print for Chrome for Chrome OS
    • Connectivity
      Fast Ethernet (100 Base-T)
      Hi-Speed USB 2.0 certified
      Wi-Fi Direct
    • Print languages
      HP-GL/2, HP-RTL, JPEG, CALS G4
    • Drivers
      Raster driver for Windows
  • Power and operating requirements
    • Power consumption
      35 watts (printing), 6 watts (ready), 4.5 watts (sleep), 0.3 watts (standby)
    • Operating temperature range
      5 to 40C
    • Operating humidity range
      20 to 80% RH
  • What's included
    • Warranty
      Two-year limited warranty. Warranty and support options vary by product, country and local legal requirements.
    • What's in the box - 610mm
      HP DesignJet T530 24-in Printer; printhead; introductory ink cartridges; quick reference guide; setup poster; software; power cord
    • What's in the box - 914mm
      HP DesignJet T530 36-in Printer; printhead; introductory ink cartridges; quick reference guide; setup poster; software; power cord
    • Software included
      HP Click, HP DesignJet Utility for Windows, HP Smart app, HP Poster Web app
