REDEFINING WORKGROUP PRODUCTIVITY

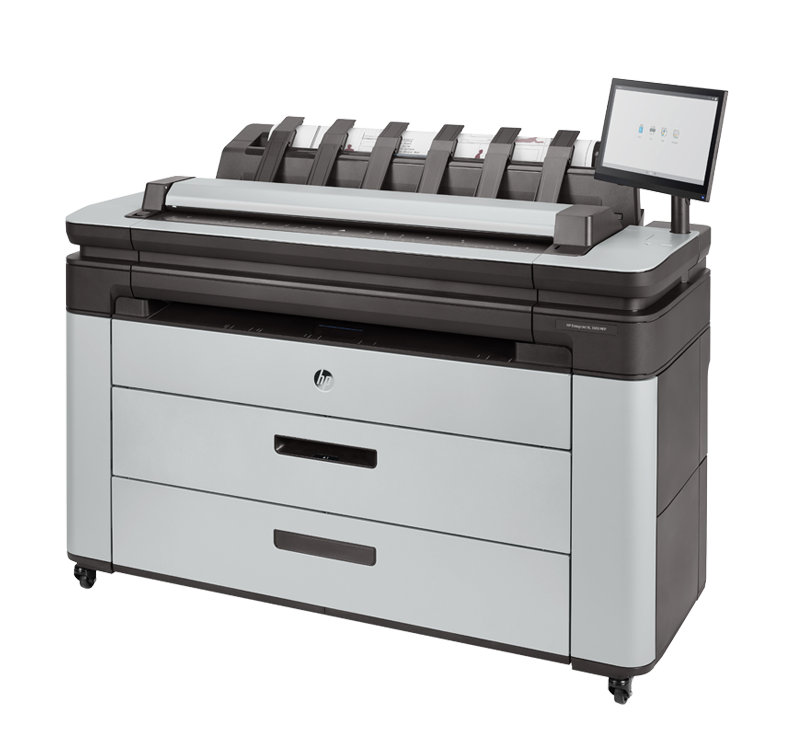

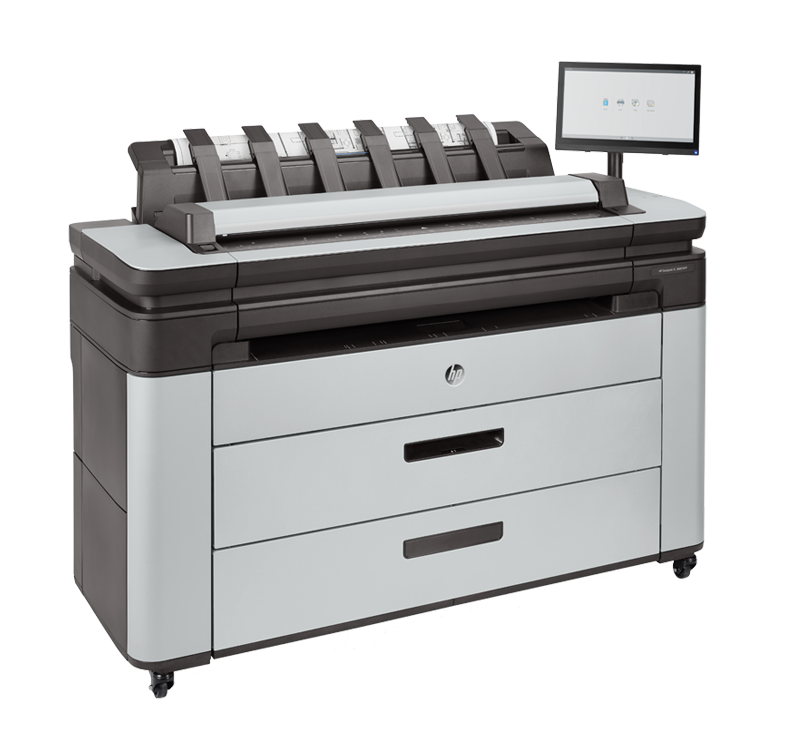

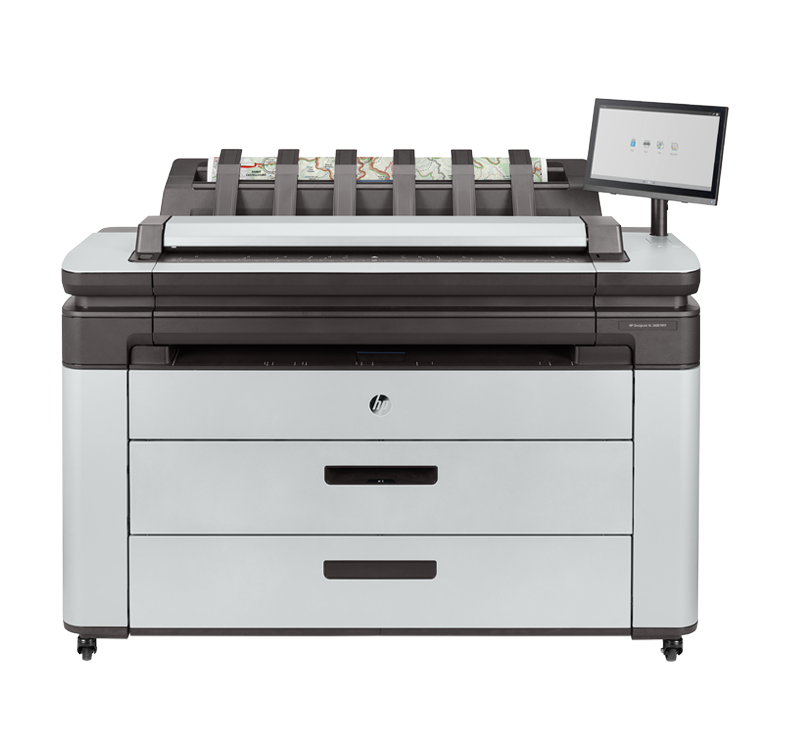

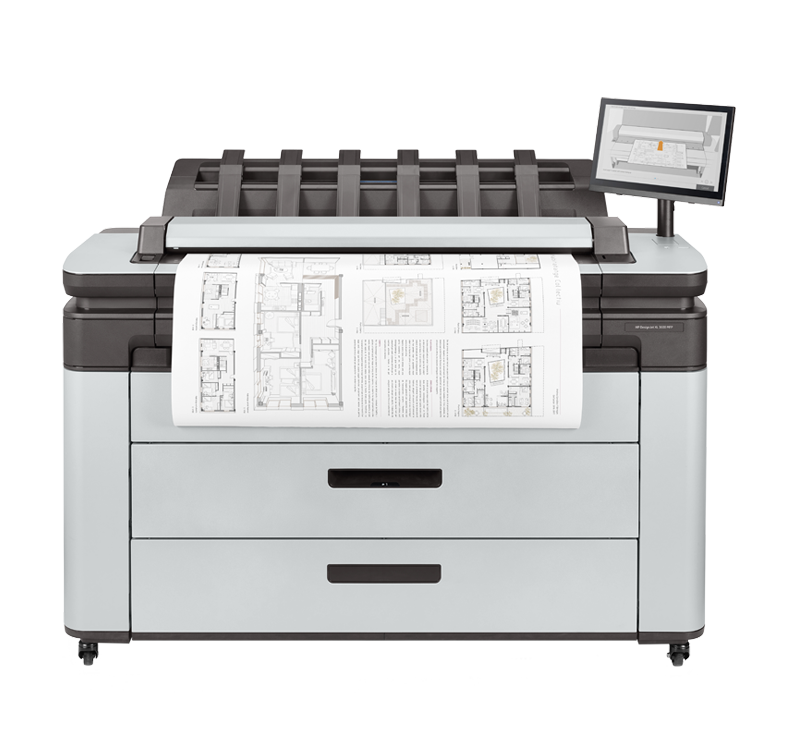

HP DesignJet XL 3600 Series Printer
Experience the new standard of reliability and function with the HP DesignJet XL 3600 multi function printer. It's robust and compact design and increadibly low running costs makes it suitable for the most demanding of print environments.
Exceptional print quality
Achieve exceptional print quality and colour accuracy at lightning speed thanks to HPs revolutionary thermal Inkjet printhead technology and 6 colour dye/pigment inkset.
- Print speeds of up 19 seconds per A1 print (economode)
- 2400 x 1200 dpi print resolution
- 6 Colour (C,M,Y,G,pK,mK) Dye & Pigment Ink
- HP Thermal inkjet print technology
True production printing
Sporting heavy-duty roll feeds and high capacity ink cartridges. This highly robust printer is capable of handling the most demanding of print environments.
- Heavy duty front loading single or dual roll feed
- High capacity 300ml ink cartridges
- Integrated 100 sheet output stacker
- Robust and compact design
High speed scanning and copying
Copy and scan quickly with advanced features and efficient workflow tools such as batch scanning, multi-page PDFs, scan to network or scan to email.
- 600dpi optical scanning resolution
- Scanning speeds of up to 6 inches per second (200dpi colour)
- CIS scanning technology
- Intel Core i5 processor
Easy and intuitive operation
A highly intuitive and easy to navigate large touchscreen interface allows for complete control and operation of this eMultifunction device.
- High resolution 15 inch touchscreen interface
- Print direct from memory stick
- WiFi enabled
- Manage scans from your tablet or mobile device
AWARDS / REVIEWS
- HP multifunction printers open new ways to help professional teams communicate and collaborate using a single device. Our customers are increasingly demanding solutions that enable them to share easily, including agile transitions from digital to hard copy and back. Its amazing to bring the most advanced HP printing technologies to support the teamwork of architects and engineers designing and building the future.
- Guayente Sanmartn
- General Manager and Global Head, HP Inc
- Architectural drawings are at the heart of what we do as contractors, and getting them to the site quickly is key. However, outsourcing our large-format printing was causing delays and costing money. HPs innovative new large-format printers and MFPs simplify collaboration with next-level features and mobile printing capabilities to meet this blended reality and print whatever and wherever AEC professionals need.
- Neil Geraghty
- Duke Construction.
- HP multifunction printers open new ways to help professional teams communicate and collaborate using a single device. Our customers are increasingly demanding solutions that enable them to share easily, including agile transitions from digital to hard copy and back. Its amazing to bring the most advanced HP printing technologies to support the teamwork of architects and engineers designing and building the future.
- Guayente Sanmartn
- General Manager and Global Head, HP Inc
- Architectural drawings are at the heart of what we do as contractors, and getting them to the site quickly is key. However, outsourcing our large-format printing was causing delays and costing money. HPs innovative new large-format printers and MFPs simplify collaboration with next-level features and mobile printing capabilities to meet this blended reality and print whatever and wherever AEC professionals need.
- Neil Geraghty
- Duke Construction.
- HP multifunction printers open new ways to help professional teams communicate and collaborate using a single device. Our customers are increasingly demanding solutions that enable them to share easily, including agile transitions from digital to hard copy and back. Its amazing to bring the most advanced HP printing technologies to support the teamwork of architects and engineers designing and building the future.
- Guayente Sanmartn
- General Manager and Global Head, HP Inc
- Architectural drawings are at the heart of what we do as contractors, and getting them to the site quickly is key. However, outsourcing our large-format printing was causing delays and costing money. HPs innovative new large-format printers and MFPs simplify collaboration with next-level features and mobile printing capabilities to meet this blended reality and print whatever and wherever AEC professionals need.
- Neil Geraghty
- Duke Construction.
‹
›
SPECIFICATIONS
- Model size
- 914mm
- Functions
- Print, copy, scan
- Speed specifications
- Print time line drawing
(economode, A1 plain paper)
19 sec/page - Print speed line drawing
(economode, A1 plain paper)
180 A1 prints per hour - Linear scan speed
Up to 76.2mm/sec (200dpi colour)
Up to 254mm/sec (200dpi greyscale) - Memory
- Memory
128GB (file processing) - Internal storage
Standard, 500GB (AES-256 encrypted) - Technical specifications
- Print quality (best)
Colour: Up to 2400 x 1200dpi optimised dpi - Print technology
HP Thermal Inkjet - Number of print cartridges
6 (cyan, gray, magenta, matte black, photo black, yellow) - Ink types
Dye-based (C,G,M,pK,Y) Pigment-based (mK) - Non-printable area (cut-sheet)
3mm x 22mm x 3mm x 3mm - Guaranteed minimum line width
0.02mm (HP-GL/2 addressable) - Line accuracy
0.1% - Scan resolution, optical
Up to 600dpi - Scanner type
Sheet fed, CIS (Contact Image Sensor) - Scan size, maximum
914mm x 8000mm (JPEG)
610mm x 15000mm (TIFF)
914mm x 8000mm (PDF) - Scan size, minimum
210mm x 297mm - Copy reduce/enlarge settings
50 to 400% in 1% increments - Copies, maximum
Up to 99 copies - Bit Depth
24-bit/8-bit - Power and operating requirements
- Power consumption
<120W (printing); 40W (ready); <1W (sleep); 0.3W (off) - Power requirements
Input voltage (auto ranging) 100-240 V (10%), 50/60 Hz (3 Hz), 2 A - Energy efficiency
ENERGY STAR; WEEE; RoHS (EU); REACH; EPEAT - Operating temperature range
5 to 40C - Operating humidity range
20 to 80% RH
- Paper handling
- Printing
Sheet feed, automatic front-loading roll feed, smart roll switching, integrated output stacker, media bin, automatic horizontal cutter
Scanning:
Straight-through scan paper path for sheet and cardboard originals - Media types
Bond and coated paper (bond, coated, heavyweight coated, super heavyweight plus matte, coloured), technical paper (natural tracing, translucent bond, vellum), film (clear, matte, polyester), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive (two-view cling, indoor paper, polypropylene, vinyl) - Media weights, recommended
60 to 328 g/m2 - Media sizes
279 to 914mm width, up to 200m length, 3-in core (default) or 2-in core (optional) - Media thickness
Up to 0.5mm
- Connectivity
- HP ePrint capability
Yes - Printing path
Direct printing from USB flash drive, print from network shared folder, email printing, HP driver for Windows, HP Print Service for Android, Apple AirPrint driver for macOS and iOS, HP Print for Chrome OS, HP Click, HP Smart App for iOS and Android, HP SmartStream (optional) - Drivers
PostScript Printer: PostScript and PDF Windows drivers, raster drivers for Windows, AirPrint for macOS; Non- PostScript Printer: Raster drivers for Windows, AirPrint for macOS - Interfaces
Gigabit Ethernet (1000Base-T), supporting the following standards: TCP/IP, BootP/DHCP (IPv4 only), DHCPv6, TFTP (IPv4 only), SNMP (v1, v2c, v3), Apple Bonjour Compatible, WS Discovery, Embedded Web Server (HTTP, HTTPS), IPsec, SMTP (email), Raw IP printing (9100), LPD, IPP, WS print, NTLM v2, SMBv3, SSL/TLS, 802.1X authentication (LEAP, PEAP, EAP-TLS), DFS - Print languages (standard)
HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4 - Print languages (optional)
Adobe PostScript 3, Adobe PDF 1.7 - Security Features
HP Secure Boot, Whitelisting, TPM, Role Based Access Control, LDAP and Kerberos authentication, SNMPv3, HTTPS, Secure-IPP, IPsec/Firewall, Certificates management, 802.1X, TLS 1.0/1.1/1.2, HP Web Jetadmin compatible, HP JetAdvantage Security Manager compatible, Secure Disk erase (DoD 5220.22-M), Secure File erase, self-encrypting HDD, encrypted PIN printing, Syslog security logging - Dimensions and weight
- Dimensions (W x D x H)
1500 x 660 x 1310mm - Weight
Single-roll: 154 kg, Dual-roll: 170 kg - What's included
- Warranty
A versions: 90-day limited hardware warranty; H versions: Two-year limited hardware warranty. Warranty and support options vary by product, country and local legal requirements. - What's in the box
HP DesignJet XL 3600 Multifunction Printer, printhead, introductory ink cartridges, scanner calibration sheet, 2in hub right adapter kit, quick reference guide, setup poster, power cord - Software included
HP Click, HP mobile, ePrint and iOS/Android support plus the HP Smart app for mobile, HP Web Jetadmin, HP JetAdvantage Security Manager, HP SmartStream (optional), HP SmartTracker (optional)
