LARGE FORMAT PRODUCTION PRINTING

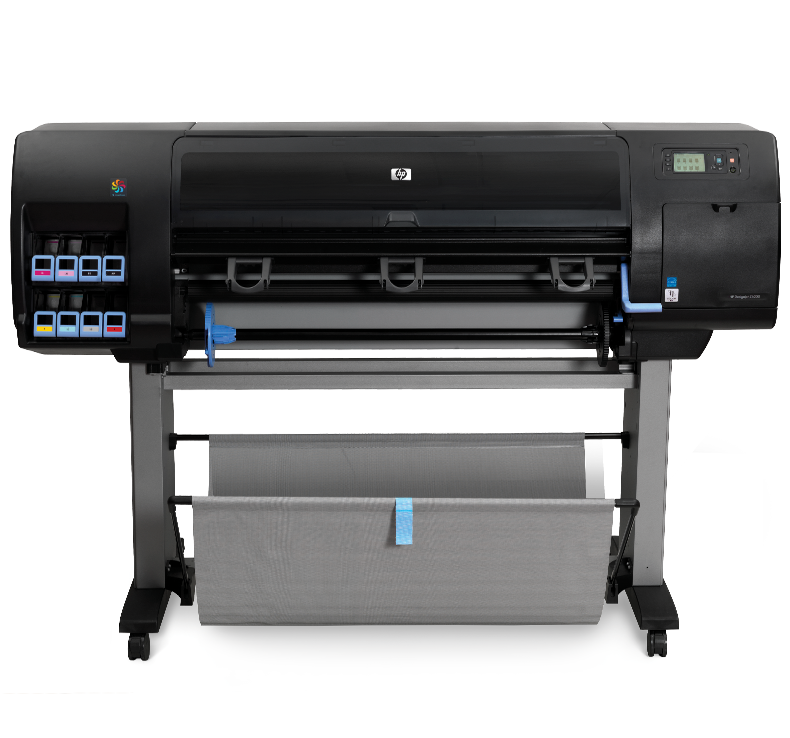

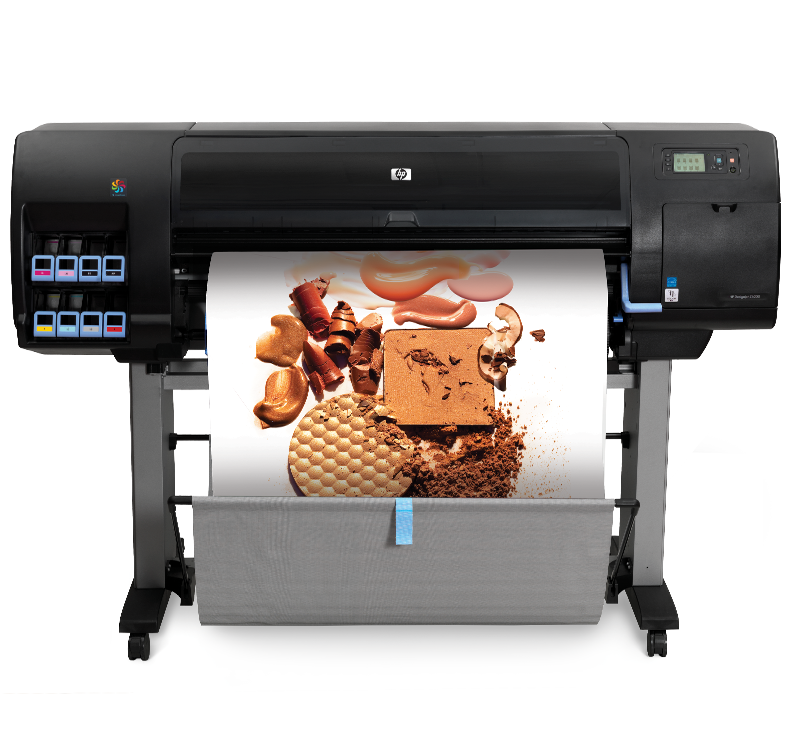

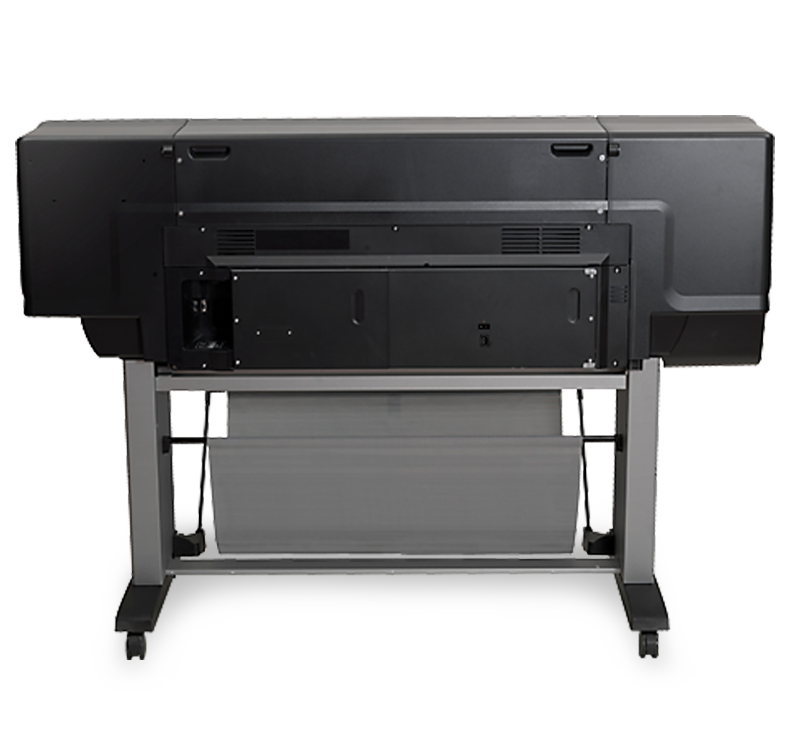

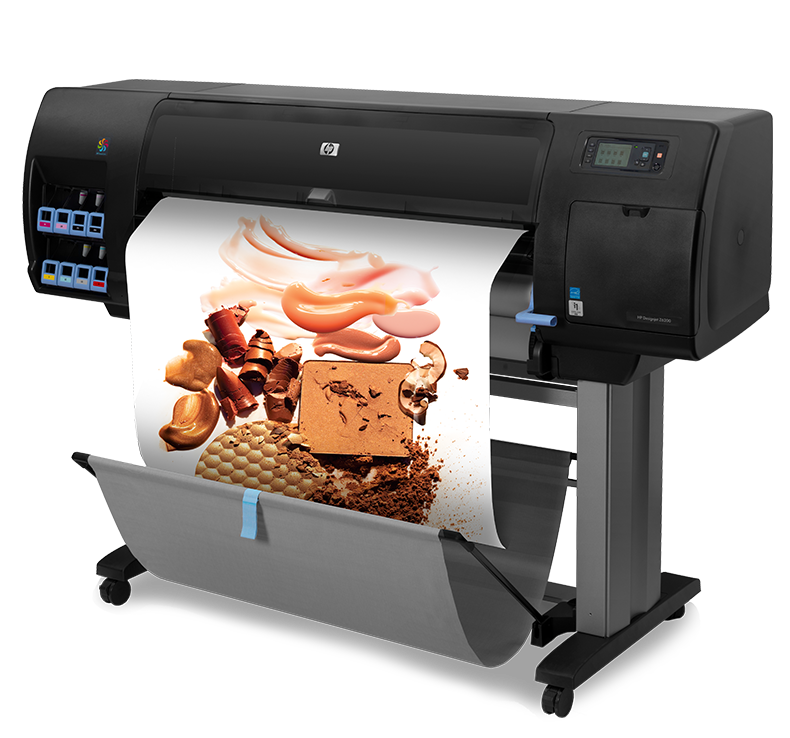

HP DesignJet Z6200 Series Printer
Deliver top quality jobs even quicker with the fastest photo quality production printer in its class. At speeds of up to 140m2 per hour the HP DesignJet Z6200 Photo Printer lets you turn around print jobs in record time and thanks to HP vivid photo inks you can take on the toughest photo printing work with ease.
Productivity without compromise
Deliver professional, photo-quality prints with smooth transitions and stunning detail all at high speed thanks to HP double swath printhead technology and HP optical media advance sensor.
- Print speeds of up to 113 square meters per hour
- 2400 x 1200 dpi print resolution
- Optical Media Advance Sensor
- HP Thermal inkjet print technology
Great unattended operation
With an integrated heavy duty roll feed and high capacity 8 colour 775ml ink cartridges the Designjet Z6200 series can significantly improve your production workflow.

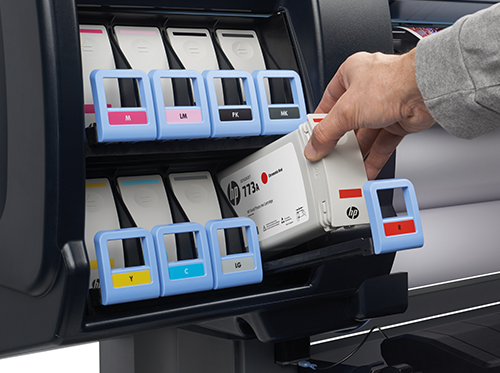

- High capacity 8 x 775ml ink cartridges
- Optimised media usage

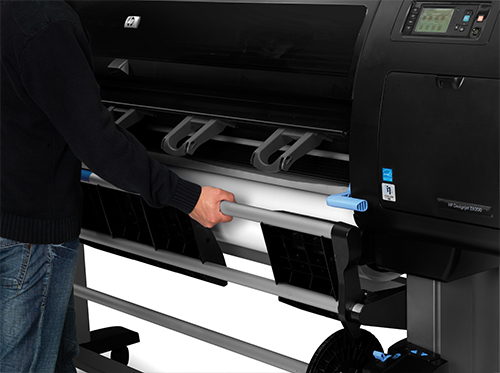

- Heavy duty roll feed
- Remote printer monitoring
Colour accuracy
Featuring HP's newly formulated vivid photo pigment inks the DesignJet Z6200 series offers improved scratch resistance, gloss uniformity and up to 88% PANTONE coverage thanks to the special gloss enhancer and chromatic red ink.
- PANTONE colour emulation
- Built-in colour calibrator
- 8 Colours (mK, R, M, Y, lm, lc, pK, lg)
AWARDS / REVIEWS
- "The HP DesignJet Z6200 Photo Printer was the perfect choice for the production of the Amelia Earhart exhibit because it allowed us to produce high-quality, neutral black-and-white and sepia prints at high speeds. We are pleased with the noticeable increase in productivity provided by the HP DesignJet Z6200 Photo printer as well as the increased control over ink limiting and saturation, which is extremely useful when producing backlit displays or prints with skin tones and shadows, like the Earhart project."
- Paul Elmi
- Owner Imagic
- Our customers are constantly under competitive pressure to differentiate their print offerings and meet tight deadlines. To help our customers address these needs, HP continues to deliver innovations built to fit the varying demands of graphic professionals.
- Ramon Pastor
- Vice President and General Manager, HP Large Format Design Printing, HP Inc
- "The HP DesignJet Z6200 Photo Printer was the perfect choice for the production of the Amelia Earhart exhibit because it allowed us to produce high-quality, neutral black-and-white and sepia prints at high speeds. We are pleased with the noticeable increase in productivity provided by the HP DesignJet Z6200 Photo printer as well as the increased control over ink limiting and saturation, which is extremely useful when producing backlit displays or prints with skin tones and shadows, like the Earhart project."
- Paul Elmi
- Owner Imagic
- Our customers are constantly under competitive pressure to differentiate their print offerings and meet tight deadlines. To help our customers address these needs, HP continues to deliver innovations built to fit the varying demands of graphic professionals.
- Ramon Pastor
- Vice President and General Manager, HP Large Format Design Printing, HP Inc
- "The HP DesignJet Z6200 Photo Printer was the perfect choice for the production of the Amelia Earhart exhibit because it allowed us to produce high-quality, neutral black-and-white and sepia prints at high speeds. We are pleased with the noticeable increase in productivity provided by the HP DesignJet Z6200 Photo printer as well as the increased control over ink limiting and saturation, which is extremely useful when producing backlit displays or prints with skin tones and shadows, like the Earhart project."
- Paul Elmi
- Owner Imagic
- Our customers are constantly under competitive pressure to differentiate their print offerings and meet tight deadlines. To help our customers address these needs, HP continues to deliver innovations built to fit the varying demands of graphic professionals.
- Ramon Pastor
- Vice President and General Manager, HP Large Format Design Printing, HP Inc
‹
›
SPECIFICATIONS
- Model size
- 1067mm
- Maximum print speed
Up to 1225 ft2/hr (113 m2/hr) - Print Resolution
Up to 2400 x 1200 optimized dpi - Margins
Roll: 0.2 x 0.2 x 0.2 x 0.2 inches (5 x 5 x 5 x 5 mm) - Technology
HP Thermal Inkjet - Ink types
Pigment-based - Droplet Size
4pl (lm,lg,pK), 6pl (R,M,Y,mK,lc) - Ink cartridges

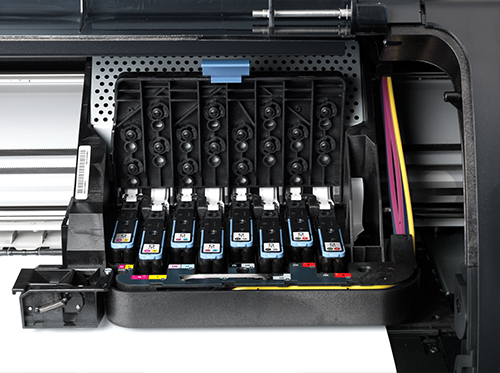

8 (matte black, chromatic red, magenta, yellow, light magenta, light cyan, photo black, light gray) - Printheads
8 (2 x matte black/chromatic red, 2 x magenta/yellow, 2 x light magenta/light cyan, 2 x photo black/light gray) - Colour accuracy
Median < 1.19 dE2000, 95% of colours < 2.77 dE20007 - Short term colour stability
< 1 dE2000 less than 5 minutes - Long term colour stability
Average < 0.5 dE2000, max < 1 dE20008 - Maximum optical density (black)
4.5 L* min/2.31 D - Line accuracy
+/- 0.1% - Minimum line width
0.02 mm (PDF addressable at 1200 dpi) - Guaranteed minimum line width
0.08 mm (ISO/IEC 13660:2001(E)) - Media
- Handling
Roll feed, automatic cutter, media bin - Media types
Bond and coated paper, technical paper, film, photographic paper, proofing paper, backlit, self-adhesive, banner and sign, fabric, fine art printing material - Media weight, recommended
Up to 114 lb depending on media type - Roll external diameter
170 mm - Roll size
280 mm to 1067 mm - Thickness
80 to 495 g/m2
- Memory
- 32 GB (virtual), 160 GB hard disk
- Connectivity
- Interfaces (standard)
Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0 certified, EIO Jetdirect accessory slot - Print languages (standard)
Standard: HP-GL/2, HP-RTL, CALS G4
Optional: Adobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG - Drivers
HP-GL/2, HP-RTL drivers for Windows (optimized for AutoCAD, from version 2000 to current), PostScript Windows, Linux, and Mac drivers with optional PostScript/ PDF Upgrade Kit - Dimensions (w x d x h)
- Printer
1970 x 690 x 1370 mm - Shipping
2230 x 750 x 1200 mm - Weight
- Printer
271 lb (123 kg) - Shipping
462 lb (210 kg) - Included in box
- HP DesignJet Z6200 Photo Production Printer, spindle, printheads, introductory ink cartridges, maintenance cartridge, printer stand, media bin, 3 inch spindle adaptor kit, quick reference guide, setup poster, startup software, power cord
- Software included
- HP Click, HP DesignJet Utility
- Environmental ranges
- Operating temperature
41 to 104F (5 to 40C) - Operating humidity
20 to 80% RH - Acoustic
- Sound pressure
53 dB(A) (operating); 38 dB(A) (standby) - Sound power
7 B(A) (operating); 5.8 B(A) (standby) - Power
- Consumption
270 W (printing); < 100 W (ready); < 0.3 W (sleep) (< 46 W with embedded Digital Front End); 0.5 W (off) - Requirements
Input voltage (auto ranging): 100-240 V (10%), 50/60 Hz (3 Hz), 3 A max - Certification
- Safety
USA and Canada (CSA certified), EU (LVD and EN 60950-1 compliant), Russia (GOST), Singapore (PSB), China (CCC), Argentina (IRAM), Mexico (NYCE), Korea (KC) - Electromagnetic
Compliant with Class A requirements, including USA (FCC rules), Canada (ICES), EU (EMC Directive), Austral - Environmental
ENERGY STAR, WEEE, EU RoHS, China RoHS, REACH, FEMP, EPEAT Bronze - Certification
- One-year limited hardware warranty
