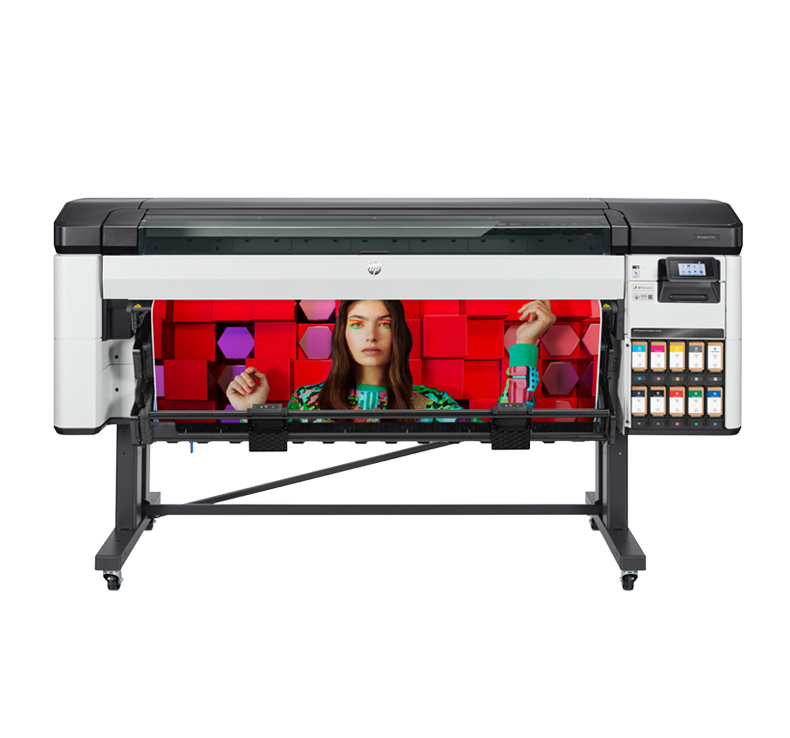

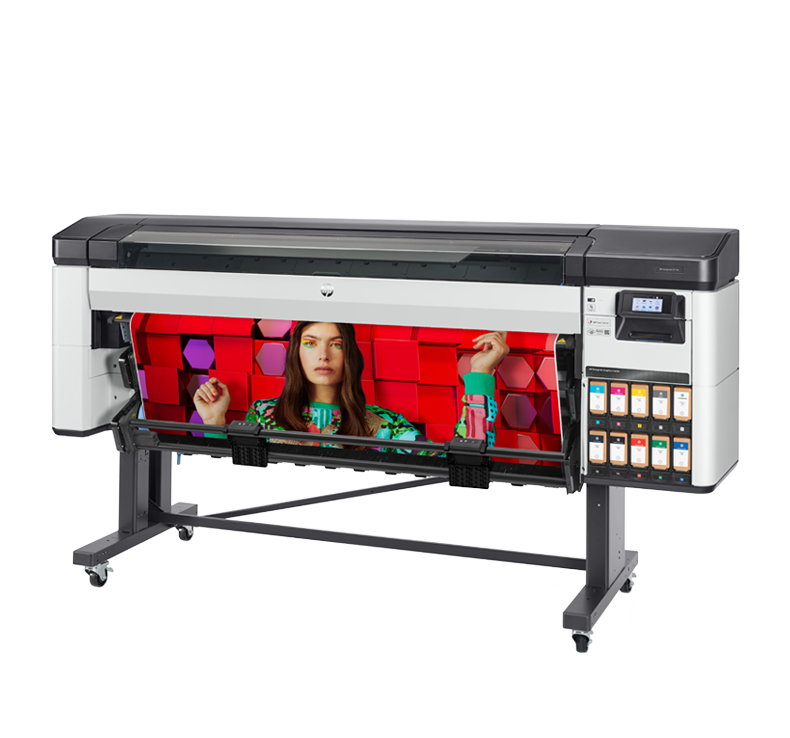

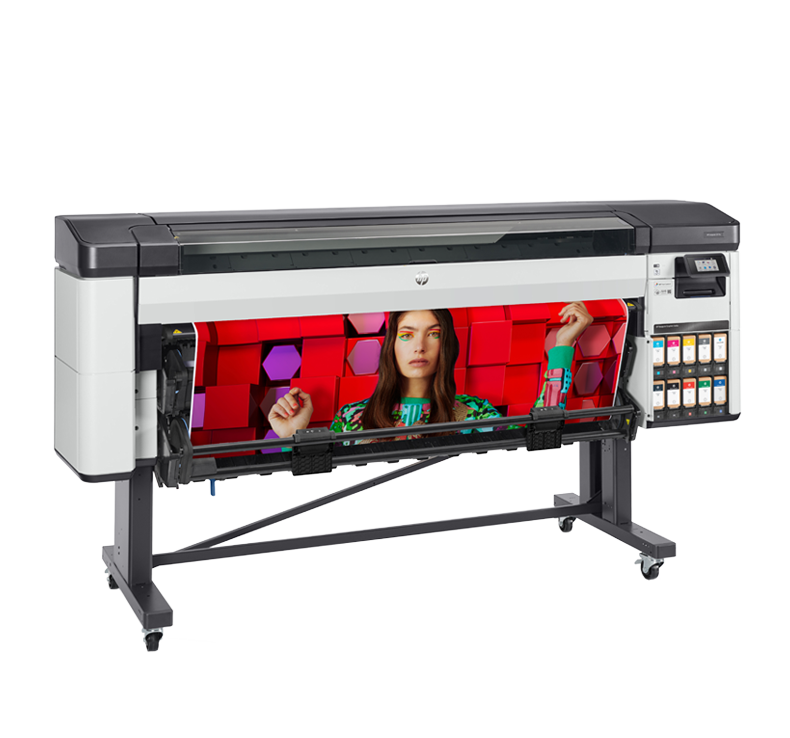

HP DesignJet Z9+ Pro Series Printers

MAKE AN IMPACT WITH YOUR PRINT

HP DesignJet Z9+ Pro Series

Amaze your clients by delivering the highest professional-photo quality prints with the widest colour gamut, output detail and colour consistency all at production level output speeds.

Exceptional output quality

Achieve exceptional output quality and colour consistency thanks to HP's HDNA high definition printheads, HP Vivid Photo inks and revolutionary HP Pixel Control. Prints achieve 95% Pantone coverage and have the highest print permanence ratings on a wide range of print materials.

  • 2400 x 1200 dpi print resolution
  • 2400 x 1200 dpi print resolution
  • 9 colour (cG, cB, G, cR, mK, M, Y, C, pK) ink + gloss enhancer
  • 9 colour (cG, cB, G, cR, mK, M, Y, C, pK) ink + gloss enhancer
  • 95% Pantone coverage
  • 95% Pantone Coverage
  • HP HDNA High Definition Printheads
  • HP HDNA High Definition Printheads

Maximise productivity

Drive your productivity and print capacity to the next level thanks to a heavy duty roll feed system, high capacity 1 litre eco ink cartridges and optional take up reel for greater unattended operation.

  • Print speeds of up to 98 square meters per hour
  • Print speeds of up to 98 square meters per hour

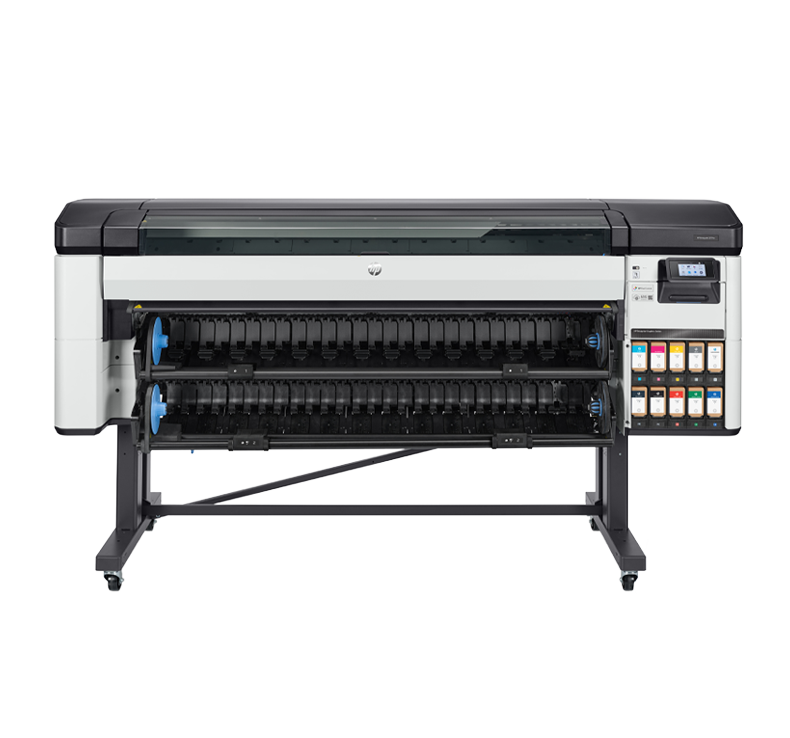

  • Heavy Duty Dual Roll Feed
  • Heavy Duty Dual Roll Feed
  • High capacity 1 litre ink cartridges
  • High capacity 1 litre ink cartridges
  • Optional heavy duty take up system
  • Optional take up system

Smart and intuitive operation

Control your print operation with ease thanks to a highly intuitive touchscreen interface and a host of online and remote monitoring tools to help maintain print production and operation of the printer wherever you are.

  • Large and intuitive touch screen interface
  • Intuitive touch screen interface
  • Easy maintenance and operation
  • Easy maintenance and operation
  • Over 250 pre-generated media profiles
  • Over 1800 pre-generated media profiles
  • Remote printer monitoring
  • Remote printer monitoring

Sustainability at its heart

Made with sustainability in mind from its manufacture to print production, the DesignJet Z9 Pro is constructed from 30% recycled materials and is supported with a extensive range of HP ink and media recycling programs creating more print opportunities while still meeting customers demands for sustainable print.

  • Constructed from 30% recycled plastic
  • Constructed from 30% recycled plastic
  • 80% plastic reduction in ink cartridge construction
  • 80% plastic reduction in ink cartridge construction
  • Extensive range of eco-conscious media
  • Extensive range of eco-conscious media
  • Recyclable and returnable print at end of usable life
  • Recyclable and returnable print at end of life

AWARDS / REVIEWS

  • As our customers continue to grapple with uncertain business conditions following a uniquely challenging past couple of years, we know that expanding their print application reach, an ability to move fast, and outstanding colour and graphics performance define their large format printing needs. This is why were introducing the new HP DesignJet Z Pro series t designed to help users navigate uncertain demand, respond to tighter deadlines and unlock untapped potential in their own offerings.
  • Daniel Martinez
  • General Manager, Large Format Business, HP
  • Our customers are constantly under competitive pressure to differentiate their print offerings and meet tight deadlines. To help our customers address these needs, HP continues to deliver innovations built to fit the varying demands of graphic professionals.
  • Ramon Pastor
  • Vice President and General Manager, HP Large Format Design Printing, HP Inc
  • Its amazing to bring the most advanced HP printing technologies to support the teamwork of architects and engineers designing and building the future.We thoughtfully designed the new printers to deliver impressive photo quality without compromising time resources and output speeds and innovative colour technologies.
  • Guayente Sanmartn
  • General Manager and Global Head, HP Large Format Design Printing, HP Inc

SPECIFICATIONS

  • Print
    • Printing speed
      98 m2/hr - Fast (on plain media)
      29 m2/hr - Normal (on coated media)
      14.1 m2/hr - Best (on photographic media)
    • Print resolution
      Up to 2400 x 1200 optimised dpi
    • Technology
      HP Thermal Inkjet
    • Margins
      Roll: 5mm x 5mm x 5mm x 5mm
    • Ink types
      Pigment-based
    • Ink drop
      7/3pl dual drop weight (Magenta, Cyan, Photo Black, Chromatic Blue, Gray);

      6pl single-drop weight (Yellow, Chromatic Red, Matte Black, Chromatic Green)
    • Printheads
      5 universal printheads (valid for all colours)
    • Printhead nozzles
      3136 per colour; 28,224 in total
    • Line accuracy
      +/- 0.1%
    • Minimum line width
      0.02mm
    • Colour accuracy
      Median <1.6 dE2000, 95% of colours <2.8 dE2000
    • Short-term colour stability
      <1 dE2000 in less than 5 minutes
    • Long-term print-to-print repeatability
      Average < 0.5 dE2000, 95% of colours < 1.4 dE2000
    • Max optical density
      4L* min/2.5D
  • Media
    • Handling
      Two automatic roll feeds with smart roll-switching, spindle-less system, optional take-up reel functionality, media output bin, automatic horizontal cutter (cuts all HP DesignJet Z series certified media including most canvas)
    • Roll size
      420mm to 1626mm
    • Grammage
      80 to 500 g/m2
    • Thickness
      Up to 0.6mm
  • Applications
    • Print applications
      Banners, Displays, Exhibition and Event Graphics, Canvas, Indoor Posters, Photographic and fine art reproduction, Light Boxes, Murals, POP, POS.
  • Storage & memory
    • Memory
      4GB
    • Hard disk
      500GB self-encrypting
  • Connectivity
    • Interfaces
      Gigabit Ethernet (1000Base-T) (802.3, 802.3u, 802.3ab)
    • Native print languages
      TIFF, JPEG, CALS G4, HP-GL/2, HP-RTL
    • Print languages (optional)
      Adobe PostScript 3, Adobe PDF 1.7
    • Printing paths
      Print drivers, HP Click, printing support for Chrome OS, HP Print Service plugin for Android, HP Smart app for iOS and Android, HP SmartStream
    • Drivers
      Raster drivers for windows, Raster drivers for macOS, PDF driver for window and PostScript driver for macOS with optional PostScript/PDF upgrade kit
    • Security features
      HP Secure Boot, Whitelisting, Role-based Access Control, SNMPv3, HTTPS, Secure-IPP, IPsec/Firewall, Certificates management, 802.1X, TLS 1.0/1.1/1.2, HP Web Jetadmin compatible, HP JetAdvantage Security Manager compatible, Secure Disk erase (DoD 5220.22-M), Secure File erase, self-encrypted HDD, encrypted PIN printing, unique admin password, HP Connection Inspector
  • Dimensions
    • Printer
      2605mm x 790mm x 1402mm
    • Shipping
      2800mm x 750mm x 1302mm
  • Weight
    • Printer
      170kg
    • Shipping
      264kg
  • What's in the box
    • HP DesignJet Z9+ Pro Printer, printheads, introductory ink cartridges, maintenance cartridge, printer stand and media bin, 3-in core adapter, quick reference guide, setup poster, power cord, user maintenance kit
  • HP Software and solutions
    • HP Click printing software, HP PrintOS, HP Partner Link, HP DesignJet Accounting Tool, HP Web Jetadmin, HP SmartTracker (optional), HP SmartStream (optional), HP JetAdvantage Security Manager (optional)
  • Environmental ranges
    • Operating temperature
      5 to 40 degrees centigrade
    • Operating humidity
      20 to 80% RH
    • Storage temperature
      -20 to 55 degrees centigrade
  • Acoustics
    • Sound pressure
      52dB(A) (operating), < 25dB(A) (idle), <20 dB(A) (sleep)
    • Sound power
      6.9 B(A) (operating), 4.3 B(A) (idle), < 4.0 B(A) (sleep)
  • Power
    • Consumption
      150W (printing); <30 W (ready); <9W (sleep); 0.3W (off)
    • Requirements
      Input voltage (auto ranging): 100-240 V (10%), 50/60 Hz (3 Hz), 3 A max
  • Certification
    • Safety
      IEC 60950-1+A1+A2 compliant; IEC 62368-1 compliant; USA and Canada (CSA listed); EU (LVD, EN 60950-1 and EN 62368-1 compliant); Russia, Belarus, and Kazakhstan (EAC); China (CCC)
    • Electromagnetic
      Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia and New Zealand (RCM), Japan (VCCI), Korea (KCC), China (CCC)
    • Environmental
      ENERGY STAR 3.0, WEEE, EU RoHS, REACH, EPEAT
  • Warranty
    • One year limited hardware warranty
