EMBRACE NEW POSSIBILITIES

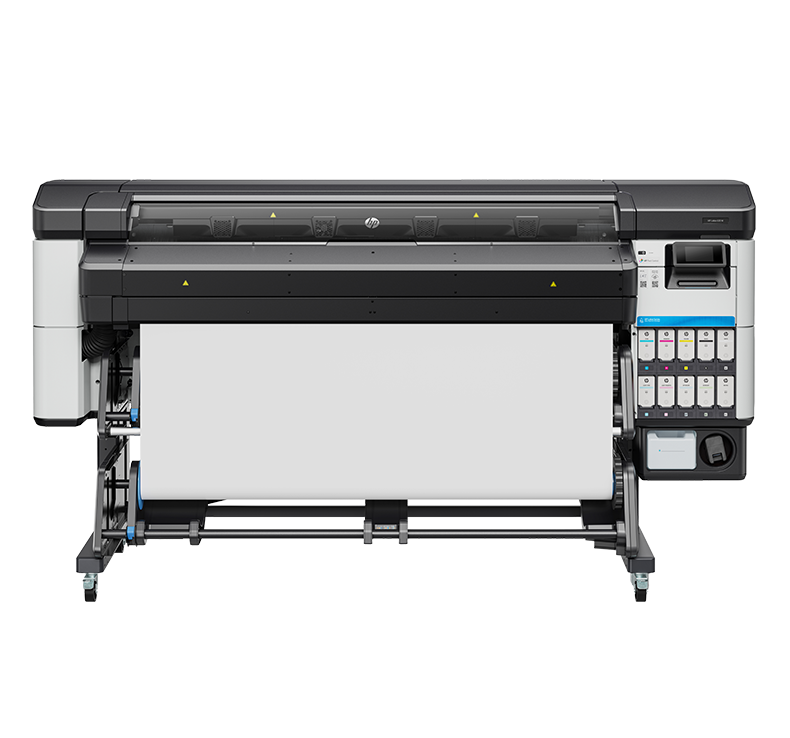

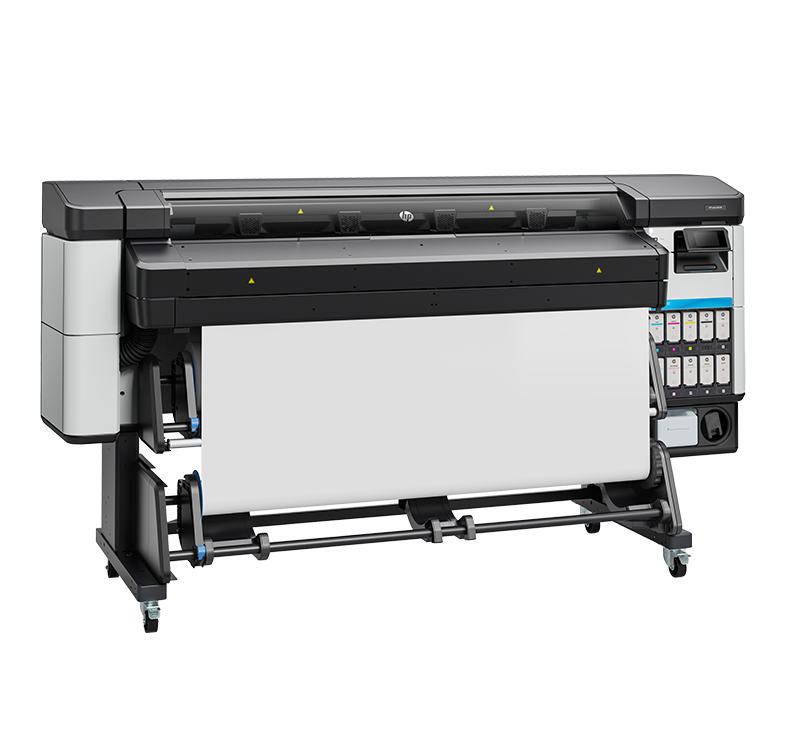

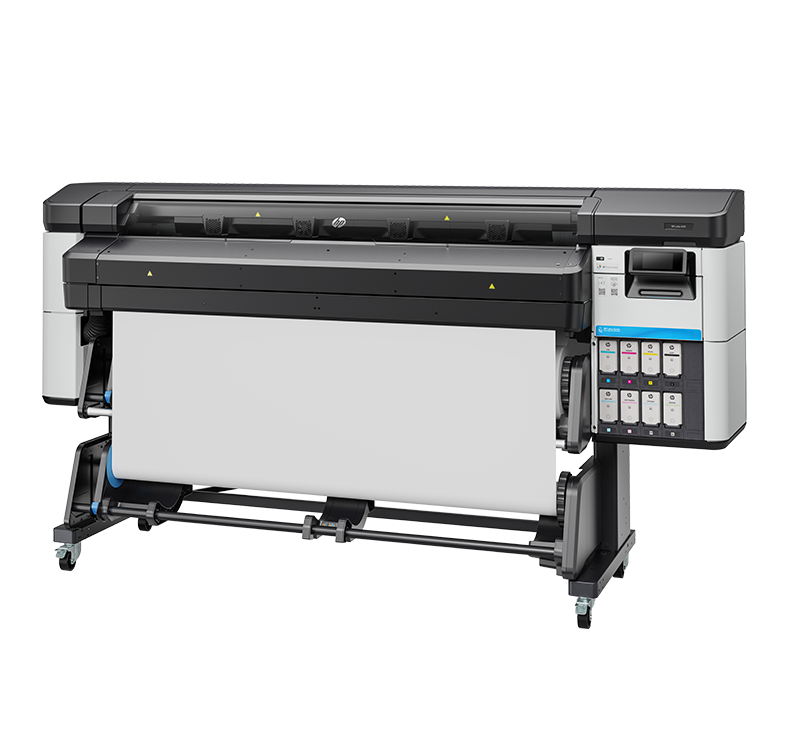

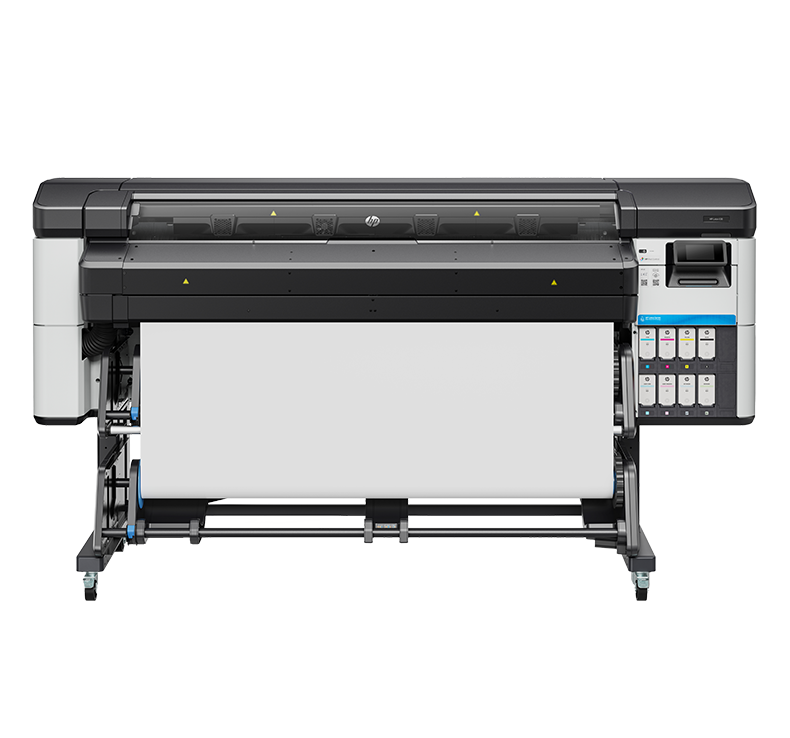

HP Latex 630 / 630W Series

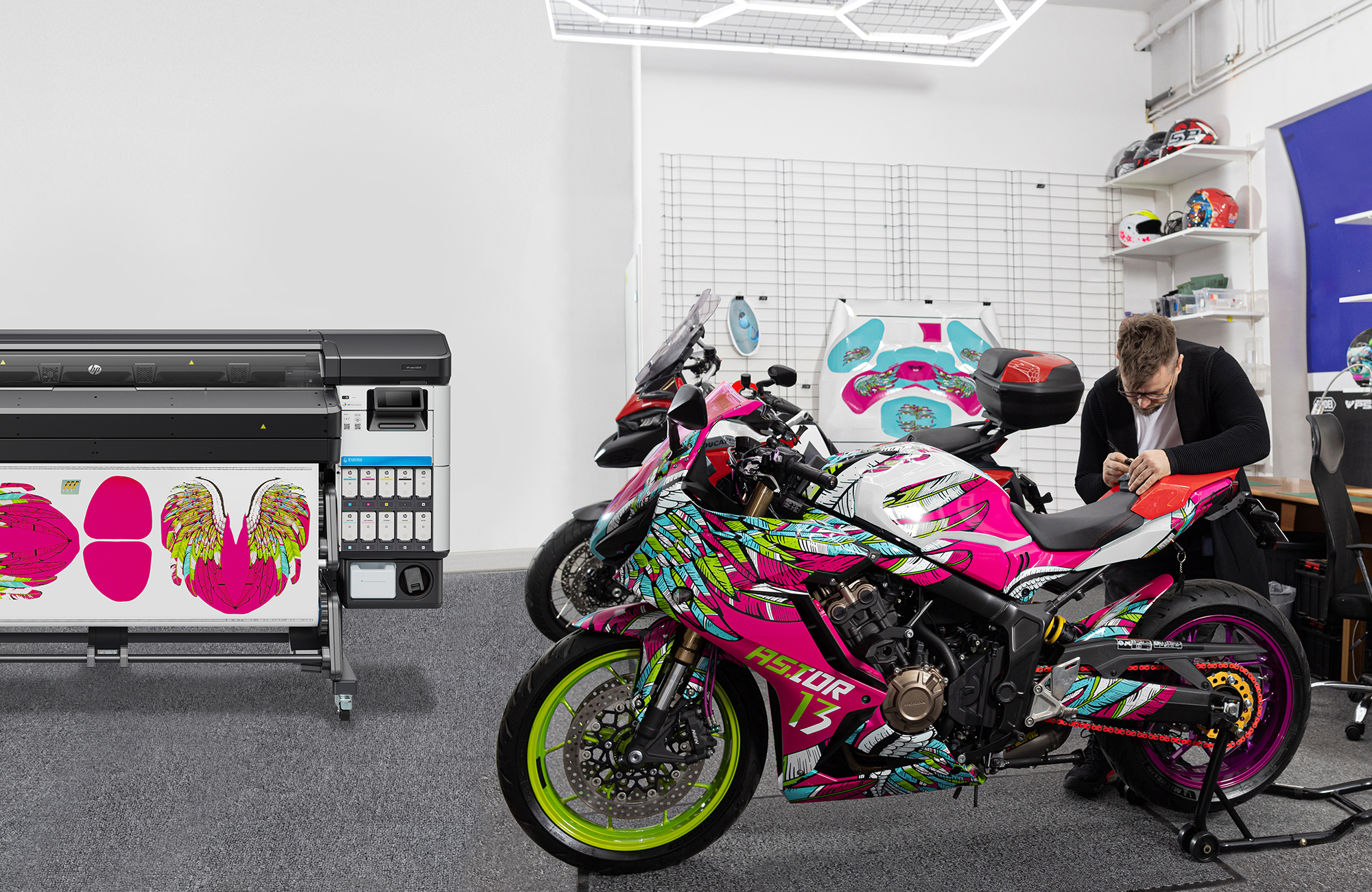

Get your printing needs met and so much more with a printer that delivers more of what you are looking for. Using HP's revolutionary Latex printing technology to produce a wide range of signage, vehicle graphics and decor jobs that look amazing.

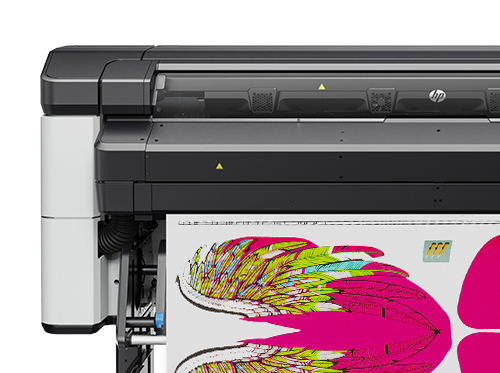

Deliver breathtaking output quality
Deliver high impact, vivid colour output with a higher pigment load thanks to the next generation printhead technology and HP's 4th generation Latex ink technology. The new ink formulation offers a larger output gamut as well as stunning output contrast, smooth gradients and sharp text. And now with the option of white ink this further improves the outstanding versatility of this printer.
- 1200 x 1200 dpi print resolution
- Print speeds of up to 18sqm/hr (4 pass)
- 6 colour (C,M,Y,K,Lc,Lm) latex ink + optimiser / overcoat
- White Ink Option
Lead with environmental credentials
Build your environmental credentials with the HP Latex 630/630 W series built with sustainability at its core. Whether you are concerned about environmental regulations of the resulting print or the printers impact on the environment. HP are creating more opportunities for you to meet those goals through the manufacturing and thoughtful product design, reduced plastic consumption through to the recyclability and disposability of ink and media at the end of their effective use.
- Innovative water-based HAP free Latex Inks

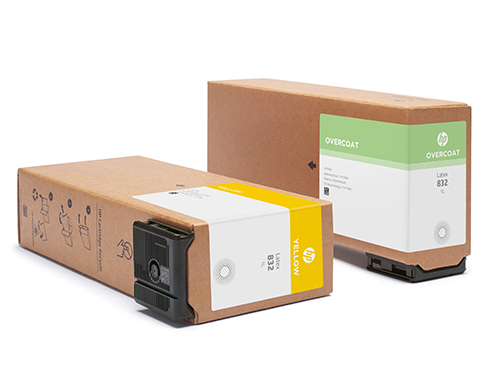

- Zero landfill for empty ink cartridges (carton based design)
- Extensive range of eco-conscious media
- Recyclable and returnable opportunities for print at end of life
Smart and intuitive operation
Control your print operation with ease thanks to a highly intuitive touchscreen interface along with a host of online service and operating tools to aid in your print production, remote monitoring and automatic maintenance processes.

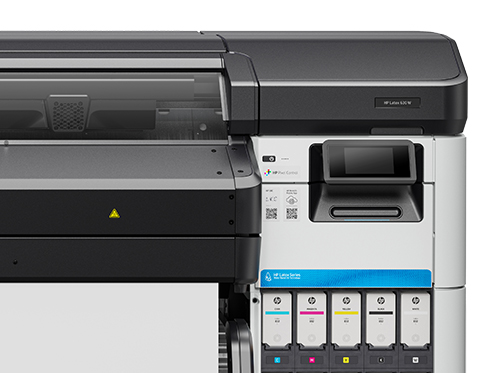

- Highly intuitive touch screen interface
- Easy maintenance and operation
- Over 1800 pre-generated media profiles
- Remote printer monitoring
Drive your productivity

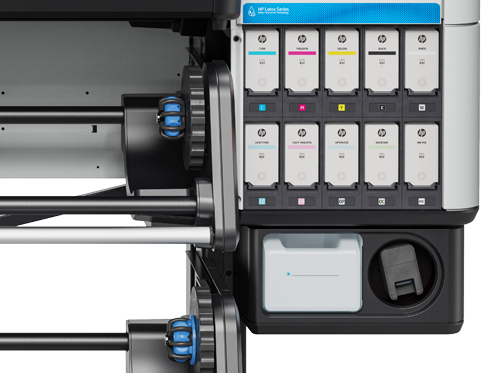

Beat tight deadlines with smart and efficient printing thanks to the easy to load heavy duty spindless 42kg roll feed system, an energy-efficient curing system, high capacity 1-litre ink cartridges and a built-in automatic take-up reel that enables greater unattended operation.
- Heavy duty take up system
- High capacity 1 litre ink cartridges
- Energy efficient curing system
- Heavy duty roll feed
AWARDS / REVIEWS
- You don't just stand behind your work, your business stands behind a healthier workplace. HP Latex Technology uses water-based, non-solvent based inks. This innovation is not only a better approach for the environment, it empowers you to become more sustainable as well
- Jon Sherman
- Flavor Paper
- A great customer experience - that's what you bring to the table and that's what you can expect with HP Latex Technology. With an integrated portfolio of hardware, software and services your see why the confidence to say "yes" to every request goes well beyond the printer.
- Guayente Sanmartn
- General Manager and Global Head.
- "The new HP Latex 630 series packs our leading latex features, such as white ink, into a more compact and affordable form factor allowing even the smallest of print businesses to effortlessly deliver high impact signage and dcor applications, boosting margins,"
- Daniel Martinez
- General Manager, HP Large Format
- In today's business climate, finding your competitive edge is key. With more application versatility and prints that emerge dry from rigid to flexible HP Latex Technology delivers high quality output on practically any substrate. Now your business can accept every challenge and welcome every opportunity.
- Curt Ennenga
- Professional Graphics Inc.
- You don't just stand behind your work, your business stands behind a healthier workplace. HP Latex Technology uses water-based, non-solvent based inks. This innovation is not only a better approach for the environment, it empowers you to become more sustainable as well
- Jon Sherman
- Flavor Paper
- A great customer experience - that's what you bring to the table and that's what you can expect with HP Latex Technology. With an integrated portfolio of hardware, software and services your see why the confidence to say "yes" to every request goes well beyond the printer.
- Guayente Sanmartn
- General Manager and Global Head.
- "The new HP Latex 630 series packs our leading latex features, such as white ink, into a more compact and affordable form factor allowing even the smallest of print businesses to effortlessly deliver high impact signage and dcor applications, boosting margins,"
- Daniel Martinez
- General Manager, HP Large Format
- In today's business climate, finding your competitive edge is key. With more application versatility and prints that emerge dry from rigid to flexible HP Latex Technology delivers high quality output on practically any substrate. Now your business can accept every challenge and welcome every opportunity.
- Curt Ennenga
- Professional Graphics Inc.
‹
›
SPECIFICATIONS
- Printing modes - (HP Latex 630 series)
35 m2/hr - Max Speed (2 pass)
18 m2/hr - Speed (4 pass)
14 m2/hr - Standard (6 pass)
11 m2/hr - Quality (8 pass)
8 m2/hr - High Saturation (12 pass)
7 m2/hr - High Saturation Backlit and Textiles (14 pass) - Printing modes - (HP Latex 630 W series)
35 m2/hr - Max Speed (2 pass)
18 m2/hr - Speed (4 pass)
14 m2/hr - Standard (6 pass)
11 m2/hr - Quality (8 pass)
8 m2/hr - High Saturation (12 pass)
7 m2/hr - High Saturation Backlit and Textiles (14 pass)
6 m2/hr - White Spot (100%)
3 m2/hr - White Overflood (100%)
2 m2/hr - White Underflood (100%)
1 m2/hr - 3 Layers Day & Night (160%) - Print resolution
Up to 1200 x 1200 - Ink types
Water-based HP Latex Inks - Ink cartridges
8 colours (Black, Cyan, Light Cyan, Light Magenta, Magenta, Yellow, HP Latex Optimizer, HP Overcoat) - (HP Latex 630 series)
9 colours (Black, Cyan, Light Cyan, Light Magenta, Magenta, Yellow, HP Latex Optimizer, HP Overcoat, White) - (HP Latex 630 W series) - Cartridge Size
1 Litre - Printheads
5 (Black/Cyan, Light Cyan/Light Magenta, Magenta/Yellow, HP Latex Optimizer, HP Overcoat) - (HP Latex 630 series)
6 (Black/Cyan, Light Cyan/Light Magenta, Magenta/Yellow, HP Latex Optimizer, HP Overcoat, White) - (HP Latex 630 W series) - Long Term repeatability
95% of colours <= 1.5 dE2000 - Media
- Handling
Roll feed, take-up reel, automatic horizontal cutter (for vinyl banner and canvas, paper-based media and film) - Media Types
Banners, self-adhesive vinyls, films, fabrics, papers, wall coverings, canvas, synthetics, mesh, textiles - Roll size
457mm to 1625mm - Roll weight
42kg - Roll diameter
250mm - Thickness
Up to 0.5mm - Applications
- Banners, Displays, Exhibition and Event Graphics, Exterior Signage, Indoor Posters, Interior Decoration, Light Boxes, Murals, POP, POS, Posters, Textiles, Vehicle Graphics, Window Graphics, Stickers, Floor Graphics
- Connectivity
- Interfaces
Gigabit Ethernet (1000Base-T)
- Dimensions
- Printer
HP Latex 630 series
2603mm x 844mm x 1405mm
HP Latex 630 W series
2603mm x 844mm x 1405mm - Shipping
HP Latex 630 series
2800mm x 1130mm x 1271mm
HP Latex 630 W series
2800mm x 1130mm x 1271mm - Operating Area
HP Latex 630 series
2793mm x 2100mm
HP Latex 630 W series
2793mm x 2100mm - Weight
- Printer
HP Latex 630 series
230kg
HP Latex 630 W series
236kg
- Shipping
HP Latex 630 series
347kg
HP Latex 630 W series
353kg
- What's in the box
- HP Latex 630 series
HP Latex 630 Printer, Printheads, Maintenance Cartridge, Printer Stand, Take Up Reel, User Maintenance Kit, Media Edge Holders, Quick Reference Guide, Setup Poster, Documentation Software, Power Cords, Air Purgers, 2 inch Spindle Adaptor - HP Latex 630 W series
HP Latex 630 W Printer, Printheads, Maintenance Cartridge, Printer Stand, Take Up Reel, User Maintenance Kit, Media Edge Holders, Quick Reference Guide, Setup Poster, Documentation Software, Power Cords, Air Purgers, 2 inch Spindle Adaptor - Environmental ranges
- Operating temperature
15 to 30 degrees centigrade - Operating humidity
20 to 80% RH - Acoustics
- Sound pressure
55dB(A) (operating), < 38dB(A) (idle), < 20 dB(A) (sleep) - Sound power
7.5 B(A) (operating), 5.5 B(A) (idle), < 4 B(A) (sleep) - Power
- Consumption
0.9-2.0 kW (2.9kW peak) (printing), 60W (ready), <4.5W (sleep) (<15W with DFE) - Requirements
Input voltage (auto-ranging): 220-240 V (+/- 10%) two wires and PE; 50/60Hz (+/- 3Hz); two power cords; 5A max printer power cord; 12 A max curing power cord - Certification
- Safety
IEC 62368-1 2nd and 3rd ed and IEC 60950-1 + A1 + A2 compliant;; USA and Canada (CSA listed); EU (LVD, EN60950-1 and EN62368-1 compliant); China (CCC) - Electromagnetic
Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia and New Zealand (RCM), Japan (VCCI), Korea (KCC), China (CCC) - Environmental
ENERGY STAR; RoHS (WEEE, EU, EAEU, China, Korea, India, Ukraine, Turkey); REACH; EPEAT Silver; OSHA; CE marking compliant - Warranty
- One year limited hardware warranty
