SMART PRODUCTIVE PRINTING

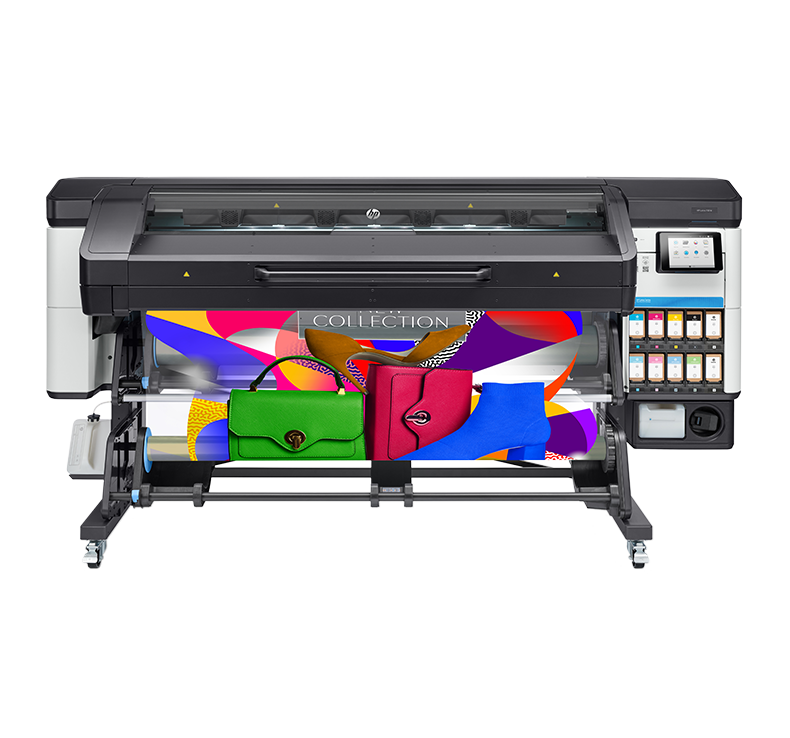

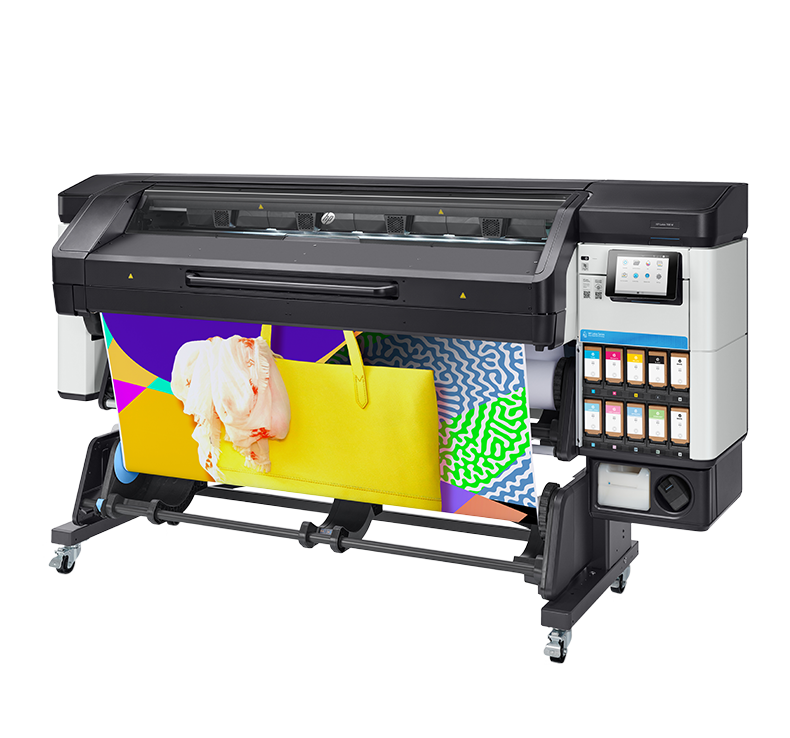

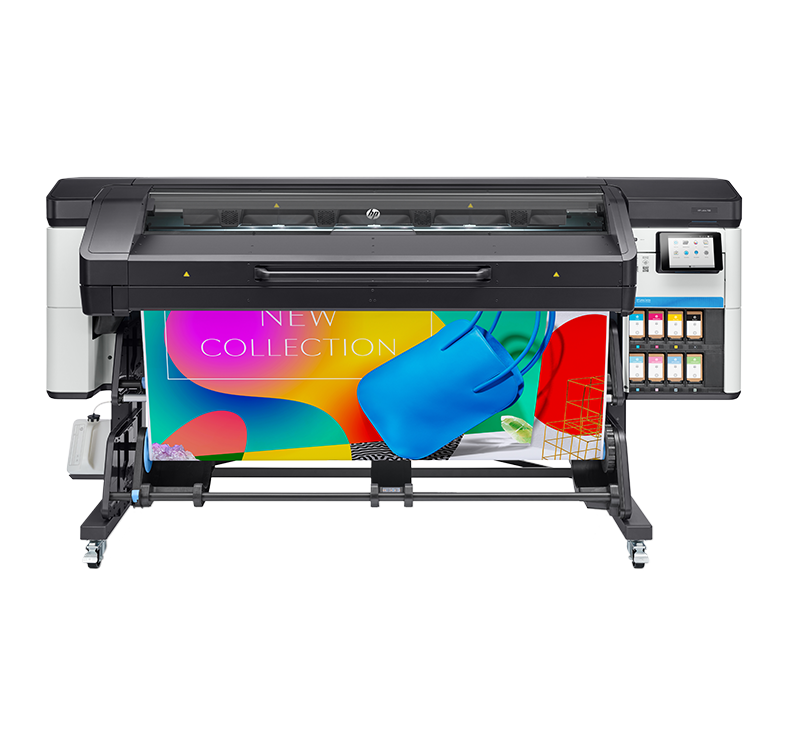

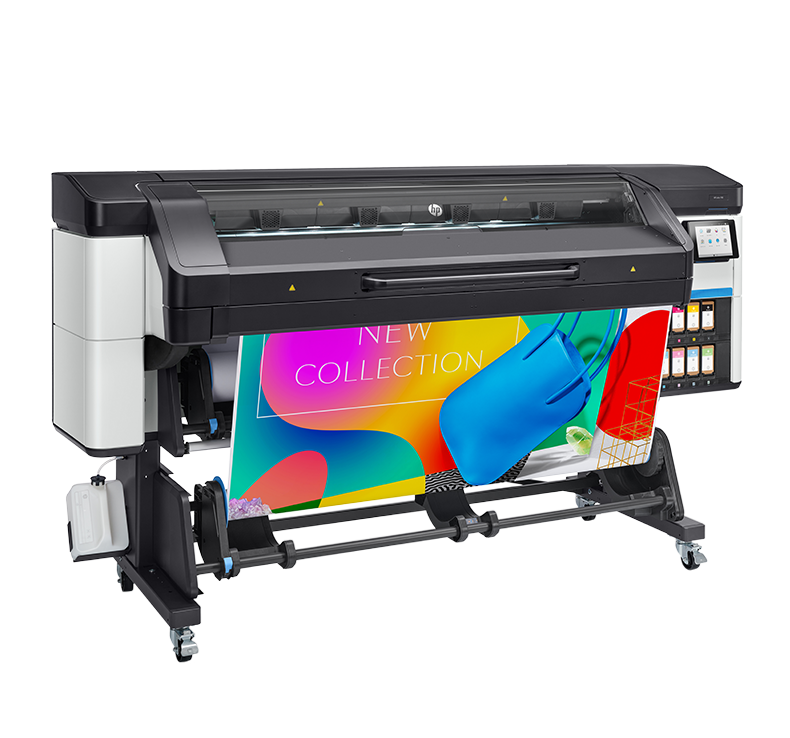

HP Latex 700 / 700W Series
Building on the already proven and highly dependable Latex ink technology the HP Latex 700 series delivers exceptional output quality at highly productive speeds whilst still supporting your customers sustainability goals.

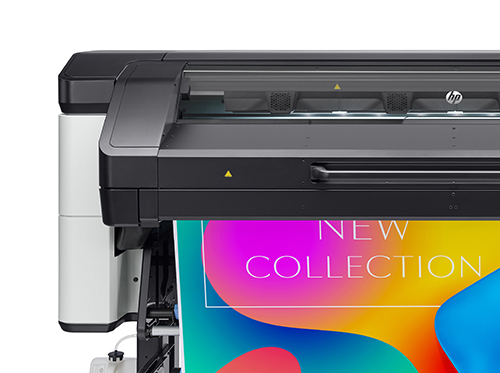

Create high impact output
Deliver high impact, vivid colour output with a higher pigment load thanks to the next generation printhead technology using 50% more nozzles than the previous generation Latex printhead. The new ink formulation offers a larger output gamut as well as stunning colour contrast and sharp detail with text easily readable at 4 point in size. And now with the option of white ink this further improves the application versatility of this printer.
- 1200 x 1200 dpi print resolution
- Print speeds of up to 31sqm/hr (4 pass)
- 6 colour (C,M,Y,K,Lc,Lm) latex ink + optimiser / overcoat
- White Ink Option
Sharpen your environmental credentials
Whether you are concerned about environmental regulations or your customers are becoming more green-sensitive. HP are creating more opportunities for you to meet those goals through the manufacturing and thoughtful product design through to the recyclability and disposability of ink and media at the end of their effective use.
- Innovative water-based HAP free Latex Inks

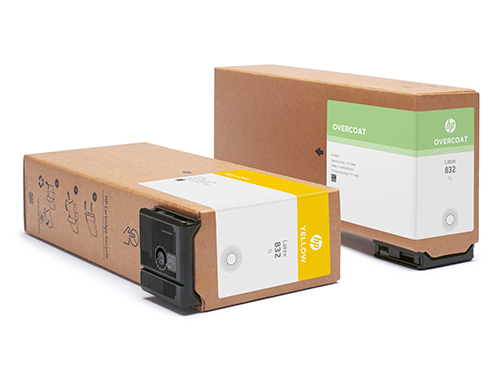

- Zero landfill for empty ink cartridges
- Extensive range of eco-conscious media
- Recyclable and returnable print at end of life

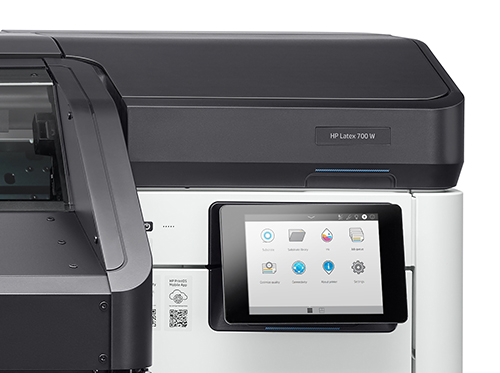

Smart and intuitive operation
Control your print operation with ease thanks to a highly intuitive touchscreen interface along with a host of online service and operating tools to aid in your print production and remote monitoring.
- Large and intuitive touch screen interface
- Easy maintenance and operation
- Over 1800 pre-generated media profiles
- Remote printer monitoring

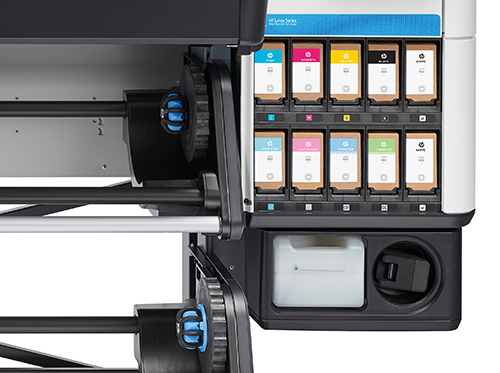

Drive your productivity
Beat tight deadlines with smart and efficient printing thanks to the easy to load heavy duty spindless 55kg roll feed system, an energy-efficient curing system, high capacity 1-litre ink cartridges and a built-in automatic take-up reel that enables greater unattended operation.
- Heavy duty take up system
- High capacity 1 litre ink cartridges
- Energy efficient curing system
- Heavy duty roll feed
AWARDS / REVIEWS
- In today's business climate, finding your competitive edge is key. With more application versatility and prints that emerge dry from rigid to flexible HP Latex Technology delivers high quality output on practically any substrate. Now your business can accept every challenge and welcome every opportunity.
- Curt Ennenga
- Professional Graphics Inc.
- Investing in a large-format printer able to print with white ink is a great way to gain a competitive edge and increase margins, Investing in HP latex printers, such as the HP Latex 700 and 800 Printer series, gives you just such an edge. They allow you to offer high-impact graphics which earn higher margins and make you a go-to destination for anyone who needs a valuable large-format printing partner."
- Guayente Sanmartn
- General Manager and Global Head, HP Inc
- "When you think about HP Latex, imagine the unique ability to say yes to every customer request, regardless of fast-changing schedule or application demands. Help meet deadlines with undisputable operator and environmental safety, as, with HP Latex, every signage & decor decision becomes a sustainable one. The new Latex 700 and 800 portfolio will allow PSPs to win big by navigating customer challenges in the next normal and embracing more ambitious projects - safe in the knowledge their work will deliver."
- Guayente Sanmartn
- General Manager and Global Head, HP Inc
- You don't just stand behind your work, your business stands behind a healthier workplace. HP Latex Technology uses water-based, non-solvent based inks. This innovation is not only a better approach for the environment, it empowers you to become more sustainable as well
- Jon Sherman
- Flavor Paper
- A great customer experience - that's what you bring to the table and that's what you can expect with HP Latex Technology. With an integrated portfolio of hardware, software and services your see why the confidence to say "yes" to every request goes well beyond the printer.
- Guayente Sanmartn
- General Manager and Global Head.
- In today's business climate, finding your competitive edge is key. With more application versatility and prints that emerge dry from rigid to flexible HP Latex Technology delivers high quality output on practically any substrate. Now your business can accept every challenge and welcome every opportunity.
- Curt Ennenga
- Professional Graphics Inc.
- Investing in a large-format printer able to print with white ink is a great way to gain a competitive edge and increase margins, Investing in HP latex printers, such as the HP Latex 700 and 800 Printer series, gives you just such an edge. They allow you to offer high-impact graphics which earn higher margins and make you a go-to destination for anyone who needs a valuable large-format printing partner."
- Guayente Sanmartn
- General Manager and Global Head, HP Inc
- "When you think about HP Latex, imagine the unique ability to say yes to every customer request, regardless of fast-changing schedule or application demands. Help meet deadlines with undisputable operator and environmental safety, as, with HP Latex, every signage & decor decision becomes a sustainable one. The new Latex 700 and 800 portfolio will allow PSPs to win big by navigating customer challenges in the next normal and embracing more ambitious projects - safe in the knowledge their work will deliver."
- Guayente Sanmartn
- General Manager and Global Head, HP Inc
- You don't just stand behind your work, your business stands behind a healthier workplace. HP Latex Technology uses water-based, non-solvent based inks. This innovation is not only a better approach for the environment, it empowers you to become more sustainable as well
- Jon Sherman
- Flavor Paper
‹
›
SPECIFICATIONS
- Printing modes - (HP Latex 700 series)
105 m2/hr - Max Speed (1 pass)
31 m2/hr - High Speed (4 pass)
21 m2/hr - Production Fast (6 pass)
17 m2/hr - Production Quality Backlit (8 pass)
16 m2/hr - High Saturation (12 pass)
12 m2/hr - High Saturation Backlit (14 pass) - Printing modes - (HP Latex 700 W series)
105 m2/hr - Max Speed (1 pass)
31 m2/hr - High Speed (4 pass)
21 m2/hr - Production Fast (6 pass)
17 m2/hr - Production Quality Backlit (8 pass)
16 m2/hr - High Saturation (12 pass)
12 m2/hr - High Saturation Backlit (14 pass)
17 m2/hr - White Spot (60%)
9 m2/hr - White Overflood (60%)
3 m2/hr - White Underflood (100%)
2 m2/hr - 3 Layers Day & Night (160%) - Print resolution
Up to 1200 x 1200 - Ink types
Water-based HP Latex Inks - Ink cartridges
8 colours (Black, Cyan, Light Cyan, Light Magenta, Magenta, Yellow, HP Latex Optimizer, HP Overcoat) - (HP Latex 700 series)
9 colours (Black, Cyan, Light Cyan, Light Magenta, Magenta, Yellow, HP Latex Optimizer, HP Overcoat, White) - (HP Latex 700 W series) - Cartridge Size
1 Litre - Printheads
8 (Black, Cyan, Light Cyan, Light Magenta, Magenta, Yellow, HP Latex Optimizer, HP Overcoat) - (HP Latex 700 series)
10 (Black, Cyan, Light Cyan, Light Magenta, Magenta, Yellow, HP Latex Optimizer, HP Overcoat, White) - (HP Latex 700 W series) - Long Term repeatability
95% of colours <= 1.5 dE2000 - Media
- Handling
Roll feed, take-up reel, wiper roller, automatic horizontal cutter (for vinyl banner and canvas, paper-based media and film) - Media Types
Banners, self-adhesive vinyls, films, fabrics, papers, wall coverings, canvas, synthetics, mesh, textiles - Roll size
254mm to 1625mm - Roll weight
55kg - Roll diameter
250mm - Thickness
Up to 0.5mm - Applications
- Banners, Displays, Exhibition and Event Graphics, Exterior Signage, Indoor Posters, Interior Decoration, Light Boxes, Murals, POP, POS, Posters, Textiles, Vehicle Graphics, Window Graphics, Stickers, Floor Graphics
- Connectivity
- Interfaces
Gigabit Ethernet (1000Base-T)
- Dimensions
- Printer
HP Latex 700 series
2583mm x 852mm x 1402mm
HP Latex 700 W series
2583mm x 852mm x 1402mm - Shipping
HP Latex 700 series
2800mm x 1130mm x 1270mm
HP Latex 700 W series
2800mm x 1130mm x 1270mm - Operating Area
HP Latex 700 series
2793mm x 2100mm
HP Latex 700 W series
2793mm x 2100mm - Weight
- Printer
HP Latex 700 series
261kg
HP Latex 700 W series
267kg
- Shipping
HP Latex 700 series
362kg
HP Latex 700 W series
368kg
- What's in the box
- HP Latex 700 series
HP Latex 700 Printer, Printheads, Maintenance Cartridge, Printer Stand, Take Up Reel, User Maintenance Kit, Media Edge Holders, Quick Reference Guide, Setup Poster, Documentation Software, Power Cords, Air Purgers, 2 inch Spindle Adaptor - HP Latex 700 W series
HP Latex 700 W Printer, Printheads, Maintenance Cartridge, Printer Stand, Take Up Reel, User Maintenance Kit, Media Edge Holders, Quick Reference Guide, Setup Poster, Documentation Software, Power Cords, Air Purgers, 2 inch Spindle Adaptor - Environmental ranges
- Operating temperature
15 to 30 degrees centigrade - Operating humidity
20 to 80% RH - Acoustics
- Sound pressure
60dB(A) (operating), < 38dB(A) (idle), <20 dB(A) (sleep) - Sound power
7.8 B(A) (operating), 5.5 B(A) (idle), < 3.5 B(A) (sleep) - Power
- Consumption
1.5-2.6 kW (5kW peak) (printing), 95W (ready) - Requirements
Input voltage (auto-ranging): 220-240 V (+/- 10%) two wires and PE; 50/60Hz (+/- 3Hz); two power cords; 13A max printer power code; 9A max curing power cord - Certification
- Safety
IEC 60950-1+A1+A2 compliant; IEC 62368-1 compliant; USA and Canada (CSA listed); EU (LVD, EN 60950-1 and EN 62368-1 compliant); Russia, Belarus, and Kazakhstan (EAC); China (CCC) - Electromagnetic
Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia and New Zealand (RCM), Japan (VCCI), Korea (KCC), China (CCC) - Environmental
ENERGY STAR; RoHS (WEEE, EU, EAEU, China, Korea, India, Ukraine, Turkey); REACH; EPEAT Silver; OSHA; CE marking compliant; Meets AgBB criteria; French VOC A+; Greenguard Gold; UL Ecologo; ZDHC - Level 1 - Warranty
- One year limited hardware warranty
