HP Latex 335 Print and Cut Plus Solution

EXPAND YOUR PRINTING POTENTIAL

HP Latex 335 Print and Cut Plus Solution

Expand into both into indoor and outdoor applications and double your product speed with this truely innovative dual device print and cut solution.

BUY NOW

Easy and intuitive operation

A simplified and automated colour management feature enables access to a library of over 1800 pre-generated media profiles online.  Or create your own profile using its built-in spectrophotometer through an easy to use touchscreen display.

  • High resolution touchscreen interface
  • High resolution 4 touchscreen interface
  • Over 250 pre-generated media profiles
  • Over 1800 pre-generated media profiles
  • easy maintenance and operation
  • Easy maintenance and operation
  • built-in spectrophotometer
  • Built-in spectrophotometer

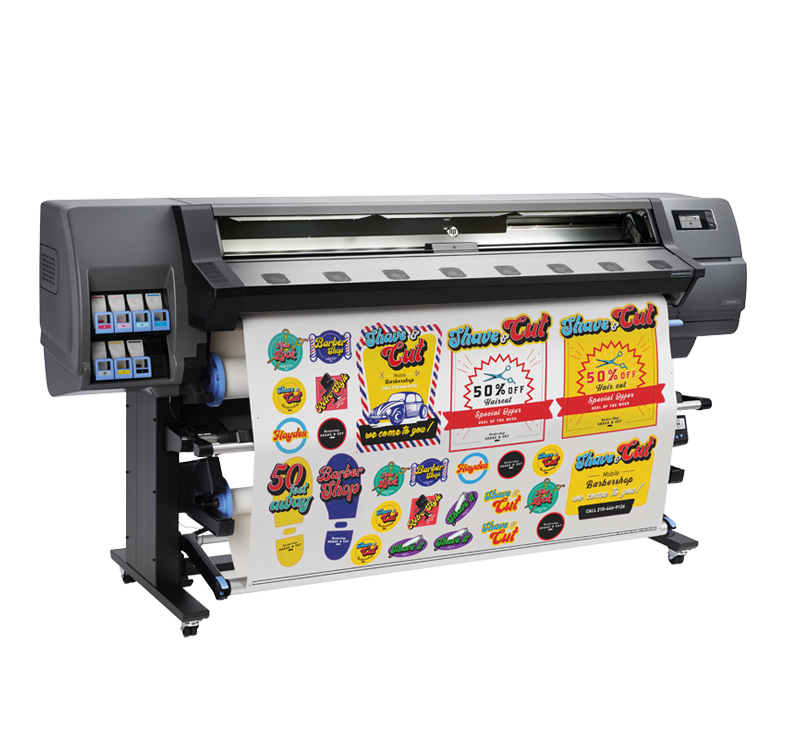

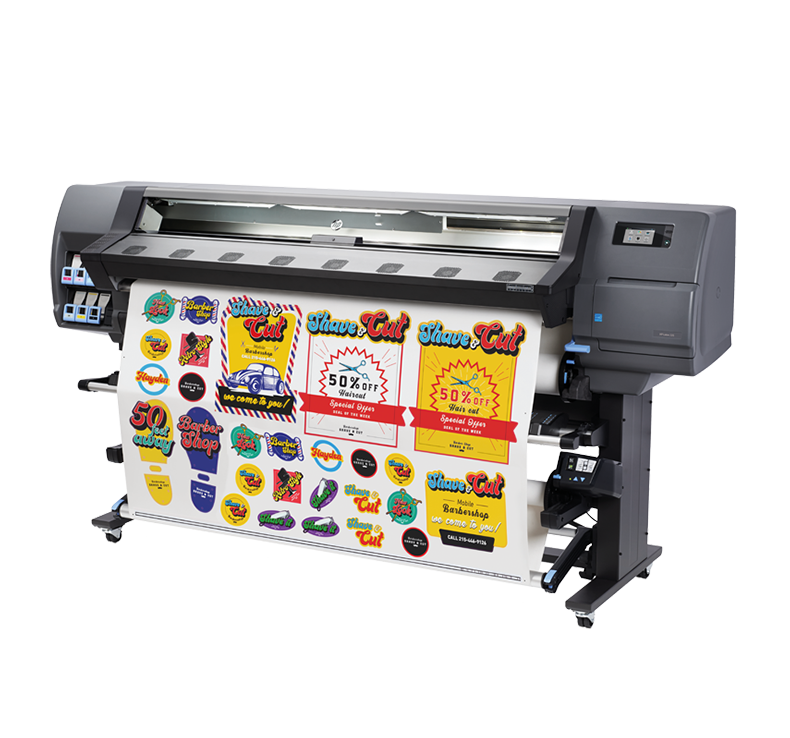

Upgrade your printing potential

Achieve outstanding print quality at speed on a wide range of materials to produce prints that are instantly dry and are scratch, UV and weather resistant for up to 3 years outdoors.

  • 1200 x 1200 dpi print resolution
  • 1200 x 1200 dpi print resolution
  • Scanning speeds of up to 38.1mm/sec (200dpi colour)
  • Print speeds of up 50m2/hr (Billboard 2 pass)
  • 6 Colour (C,M,Y,K,Lc,Lm) Latex Ink + Optimiser
  • 6 colour (C,M,Y,K,Lc,Lm) latex ink + optimiser
  • 3 Year Outdoor Durability
  • 3 Year outdoor durability

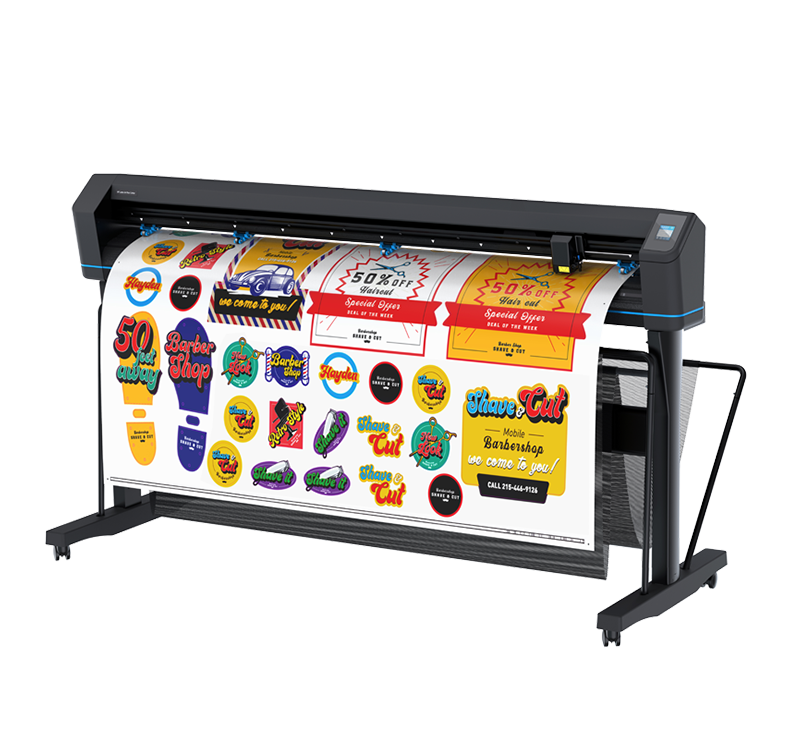

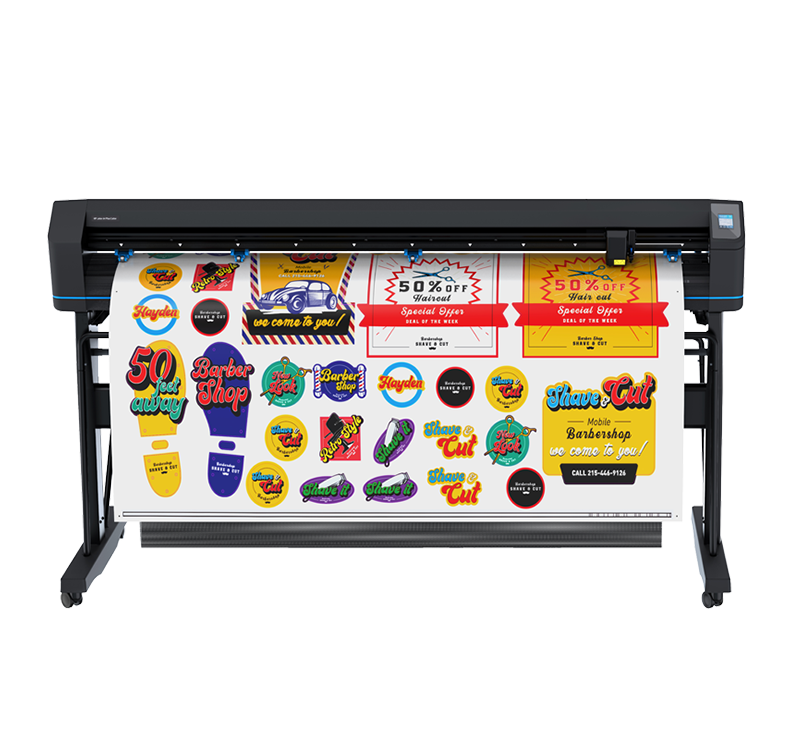

True print and cut

The dual device solution enables you to print and cut simultaneously doubling the production speed of alternative combined single unit print devices.

  • Drag knife cutting technology
  • Drag knife cutting technology
  • Up to 1130mm/sec diagonal cutting speed
  • Up to 1130mm/sec diagonal cutting speed
  • Up to 400 grams of cutting force
  • Up to 600 grams of cutting force

Drive high productivity

With a heavy duty 55kg spindleless roll feed system, energy efficient curing system, large 1 litre ink cartridges and built-in automatic take up reel enables you to drive high productivity and greater unattended operation at peak production times.

  • Heavy duty take up system
  • Heavy duty take up system
  • High capacity 775ml ink cartridges
  • High capacity 775ml ink cartridges
  • Energy efficient curing system
  • Energy efficient curing system
  • Remote printer monitoring
  • Remote printer monitoring

AWARDS / REVIEWS

  • "We are preparing for the future thanks to HP Latex Printing technologies. We can target new higher-margin markets such as public buildings like schools and hospitals, where customers are sensitive to using eco-solvent ink output."
  • Louis Lim
  • Business Development Manager, Procomp Printset
  • "With HP Latex Inks, jobs get completed faster. We can start laminating the car the minute it rolls off the printer."
  • Tony Kendricks
  • Lead Installer, Panther Graphics
  • "This introduction marks another step forward in how HP creates the best experiences for our customers. HP print and cut reduces total cost and improves workflow, enabling Latex water-based inks to further replace solvent for indoor and outdoor applications. The solution reinforces the market momentum toward HP technology, now reaching the milestone of 42,000 units sold, with 12,000 units added in the last year alone. Were excited about the opportunity to meet the growing demand for our industry-leading solutions."
  • Xavier Garcia
  • General Manager, HP Printing Division
  • "Overall, HP Latex Printing Technologies provide a complete solution that helps us offer top-quality products, which is paramount because the images we print are very personal to customers"
  • Bakty Motiram-Barnett
  • Vendor Operations Manager, Snapfish
  • "We are preparing for the future thanks to HP Latex Printing technologies. We can target new higher-margin markets such as public buildings like schools and hospitals, where customers are sensitive to using eco-solvent ink output."
  • Louis Lim
  • Business Development Manager, Procomp Printset
  • "With HP Latex Inks, jobs get completed faster. We can start laminating the car the minute it rolls off the printer."
  • Tony Kendricks
  • Lead Installer, Panther Graphics
  • "This introduction marks another step forward in how HP creates the best experiences for our customers. HP print and cut reduces total cost and improves workflow, enabling Latex water-based inks to further replace solvent for indoor and outdoor applications. The solution reinforces the market momentum toward HP technology, now reaching the milestone of 42,000 units sold, with 12,000 units added in the last year alone. Were excited about the opportunity to meet the growing demand for our industry-leading solutions."
  • Xavier Garcia
  • General Manager, HP Printing Division
  • "Overall, HP Latex Printing Technologies provide a complete solution that helps us offer top-quality products, which is paramount because the images we print are very personal to customers"
  • Bakty Motiram-Barnett
  • Vendor Operations Manager, Snapfish
‹
›

SPECIFICATIONS

  • Printing modes
    • 50 m2/hr (538 ft2/hr) - Billboard (2 pass)
      23 m2/hr (248 ft2/hr) - Outdoor HS (4 pass)
      17 m2/hr (183 ft/hr) - Outdoor Plus (6 pass)
      13 m2/hr (140 ft2/hr) - Indoor SQ (8 pass)
      10 m2/hr (108 ft2/hr) - Indoor HQ (10 pass)
      6 m2/hr (65 ft2/hr) - Backlit & Textiles (16 pass)
      5 m2/hr (54 ft2/hr) - High Sat Textiles (2 pass)
  • Print resolution
    • Up to 1200 x 1200 dpi
  • Ink type
    • HP Latex Inks
  • Ink Cartridges
    • Black, cyan, light cyan, light magenta, magenta, yellow, HP Latex Optimiser
  • Cartridge Size
    • 775ml
  • Printheads
    • 6 (2 cyan/black, 2 magenta/yellow, light cyan/light magenta, 1 HP Latex Optimizer)
  • Colour consistency
    • Average 1 dE2000, 95% of colours 2 dE2000
  • Media handling
    • Roll feed; take-up reel; automatic cutter (for vinyl, paper based media, backlit polyester film)
  • Media types
    • Banners, self-adhesive vinyls, films, papers, wallcoverings, canvas, synthetics, (fabrics, mesh, textiles and any other porous materials require a liner)
  • Roll size
    • 254 to 1625mm (10 to 64 inches) rolls (580 to 1625-mm (23 to 64 inches) rolls with full support)
  • Roll weight
    • 42 kg (92.6 lb)
  • Roll diameter
    • 250 mm (9.8 in)
  • Media thickness
    • Up to 0.5 mm (19.7 mil)
  • Applications
    • Banners, Customizable clothing, Displays, Exhibition and event graphics, Exterior signage, Floor graphics, Indoor posters, Interior decoration, Labels and stickers, Light boxes - film, Light boxes - paper, POP/POS, Posters, Vehicle graphics, Wall decals, Window graphics
  • Connectivity
    • Gigabit Ethernet (1000Base-T)
  • Printer dimensions
    • 2561mm x 840mm x 1380 mm
  • Printer shipping dimensions
    • 2795mm x 760mm x 1250 mm
  • Printer weight
    • 208 kg (459 lb)
  • Shipping weight
    • 290 kg (639.5 lb)
  • Whats in the box (printer)
    • HP Latex 335 Printer, printheads, maintenance cartridge, printer stand, spindle, take-up reel, variable front tension kit, user maintenance kit, edge holders, quick reference guide, setup poster, power cords
  • Operating temperature
    • 15 to 30C (59 to 86F)
  • Operating humidity
    • 20 to 80% RH (non-condensing)
  • Sound pressure
    • 55 dB(A) (printing); 39 dB(A) (ready); < 15 dB(A) (sleep)
  • Sound power
    • 7.4 B(A) (printing); 5.7 B(A) (ready); < 3.5 B(A) (sleep)
  • Power consumption
    • 2.6 kW (printing); 72 watts (ready); < 2.5 watts (sleep)
  • Power requirements
    • Input voltage (auto ranging) 200-240 V (10%) two wires and PE; 50/60 Hz (3 Hz); two power cords; 3 A max per printer power cord; 16 A max per curing power cord
  • Safety certification
    • IEC 60950-1+A1+A2 compliant; USA and Canada (CSA listed); EU (LVD and EN 60950-1 compliant); Russia, Belarus, and Kazakhstan (EAC); Australia and New Zealand (RCM)C)
  • Electromagnetic certification
    • Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia and New Zealand (RCM), Japan (VCCI)
  • Environmental certification
    • ENERGY STAR, WEEE, RoHS (EU, China, Korea, India, Ukraine, Turkey), REACH, EPEAT Bronze, OSHA, CE marking compliant
  • Printer warranty
    • One-year limited hardware warranty
  • Cut type
    • Drag-knife with TurboCut and Tangential emulation modes
  • Cut width
    • 158 cm (62.2 inches)
  • Cut speed
    • Up to 113 cm/sec (44 inches/sec) diagonal
  • Acceleration
    • Up to 3 G diagonal
  • Accuracy
    • 0.2% of movement or 0.25mm, (0.01 inches) whichever is greater
  • Repeatability
    • +/- 0.1 mm (0.004 inches)
  • Cut force
    • 0 to 600 grams of downforce, in 5-gram steps
  • Cut thickness
    • 0.05 to 0.25 mm (0.002 to 0.01 inches); 0.8 mm (0.03 inches) with optional sandblast blades
  • Cutter connectivity
    • USB and Ethernet (LAN)
  • Cutter dimensions
    • 1960mm x 704mm x 1112 mm
  • Shipping dimensions
    • 2230mm x 420mm x 710 mm
  • Cutter weight
    • 48 kg (119 lb)
  • Cutter shipping weight
    • 74 kg (172 lb)
  • Whats in the box
    • HP Latex 64 Plus Cutting Solution, cutter stand, HP FlexiPrint and Cut RIP, HP Cutter Control software, quick reference guide, setup poster, documentation software, power cords, standard holder (1), standard blades (2), cut-off knife (1), 3-in media flanges (set of 2)
  • Cutter warranty
    • One year, after the HP Latex End of Installation Registration is completed by an HP authorised reseller
