COLLABORATE FASTER AND SMARTER

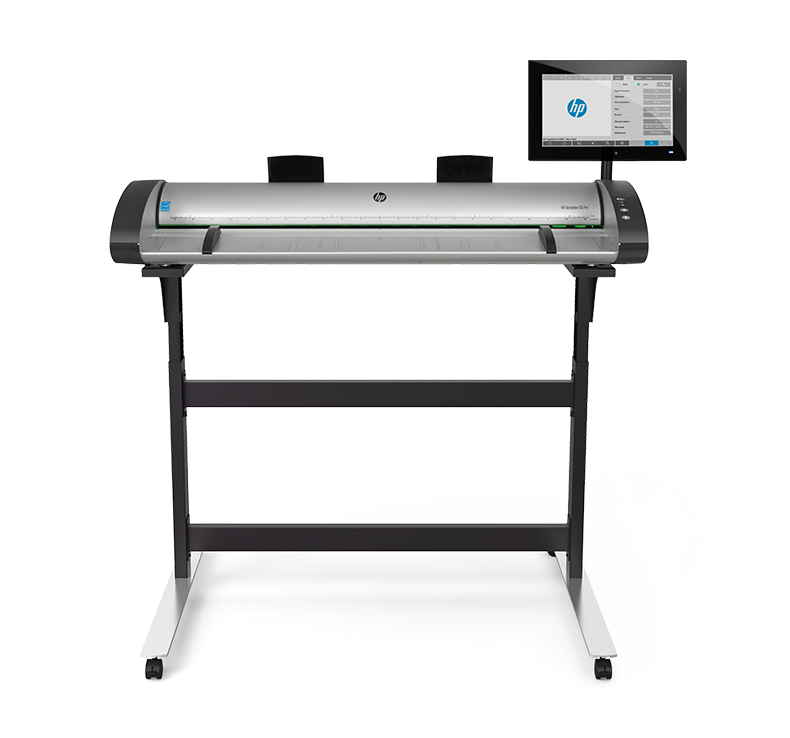

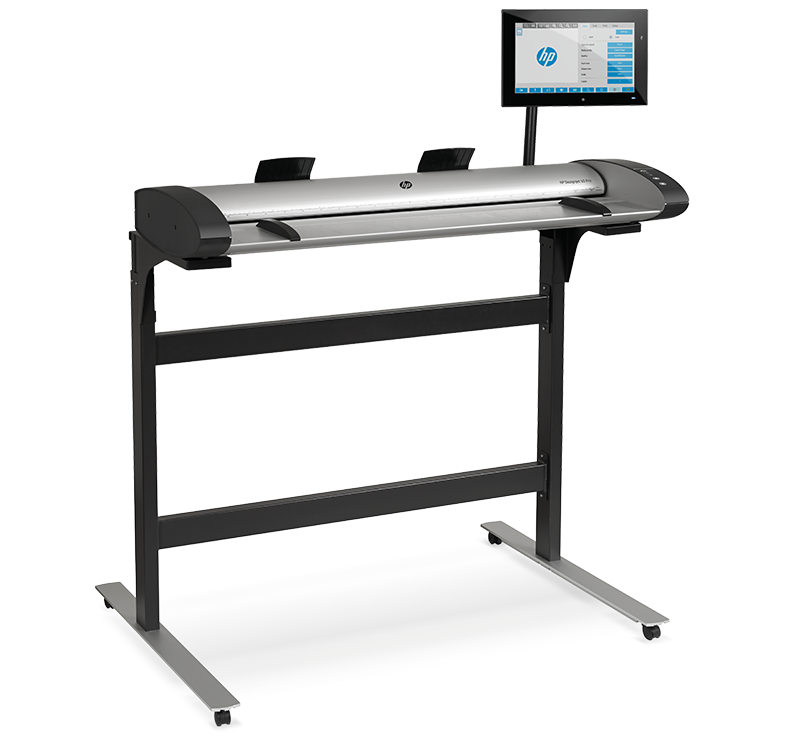

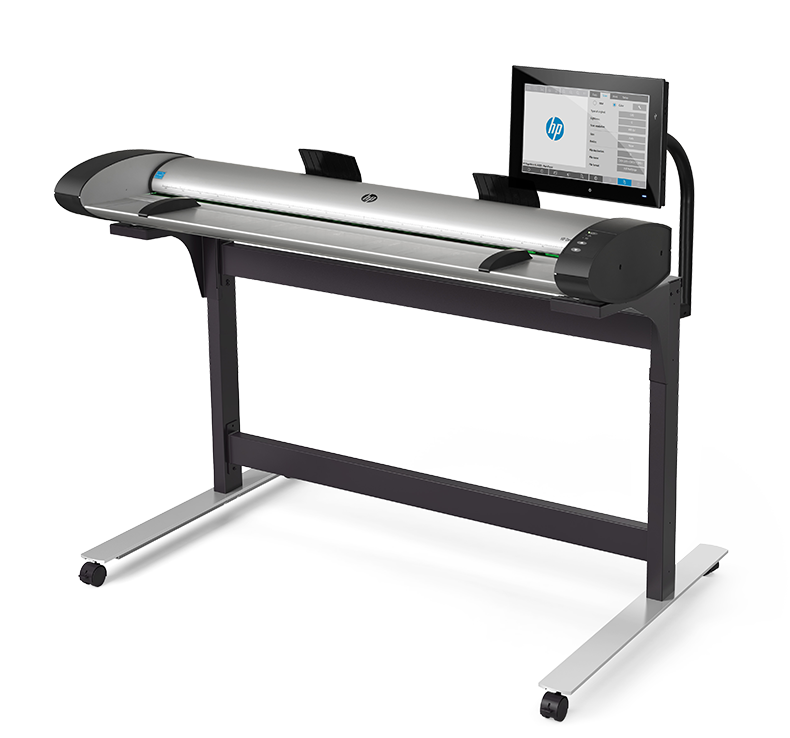

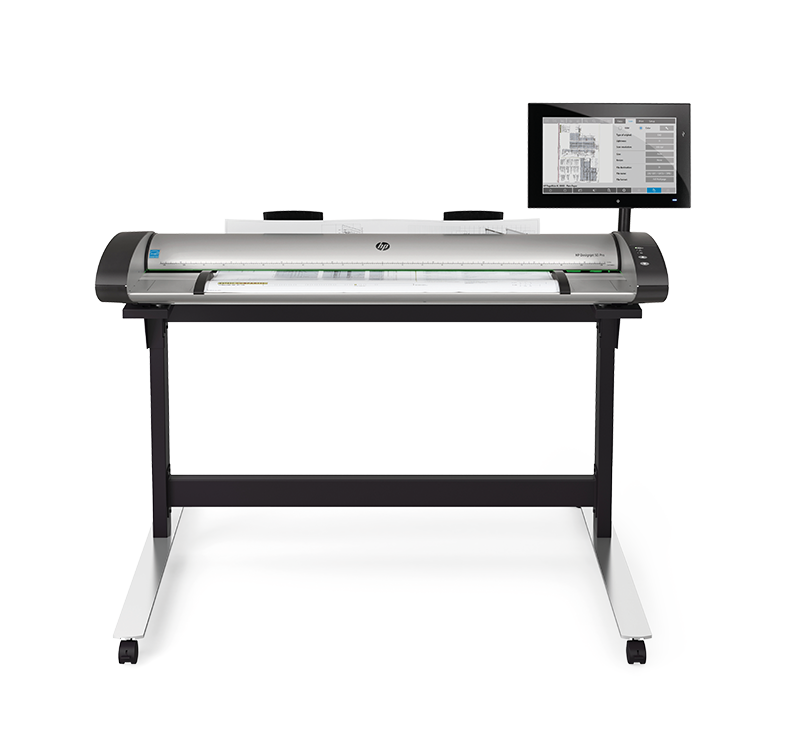

HP SD Pro Scanner
Collaborate with your clients faster and smarter with the HP SD Pro Large Format Scanner. Featuring dual illuminating CIS sensors and advanced image enhancement tools you can capture your clients documents with pin-point accuracy and detail.

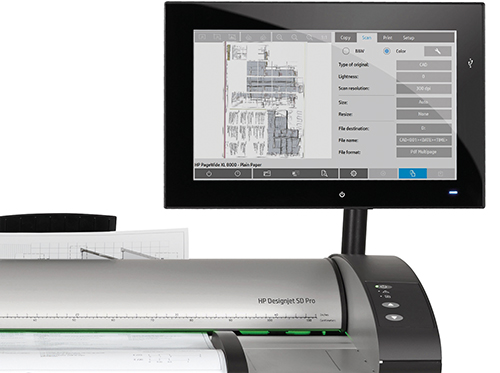

Speed up production
Accelerate your production workflow with scanning speeds of up to 6 inches per second in colour and 13 inches per second in black and white.
- 1200dpi optical scanning resolution
- Scanning speeds of 6 seconds per A2 scan (200dpi colour)
- CIS scanning technology

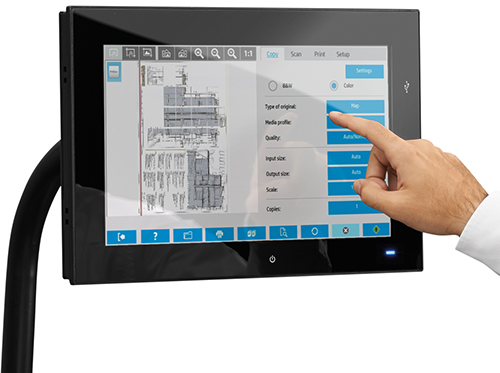

Easy and intuitive operation
Preview, capture and enhance images using the intuitive and powerful HP scanning software solution and the integrated high performance all-in-one touchscreen PC.
- High resolution 15.6" touchscreen interface
- Print direct from memory stick
- WiFi enabled
- Manage scans from your tablet or mobile device

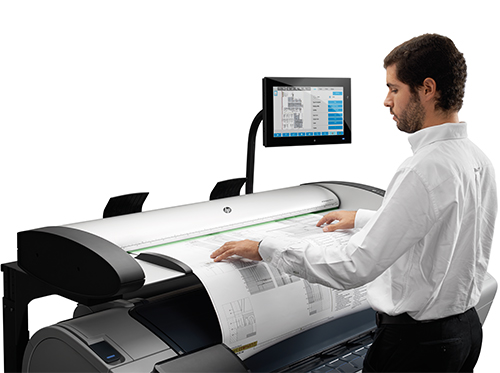

Seemless integration
Compatible with over 37 Designjet and PageWide XL printers the HP SD pro seemlessly integrates to create and fully functional multi-function printer/copier solution.
- Compatible with 7 PageWide XL Printers
- Compatible with 30 DesignJet Printers
- Adjustable stand
AWARDS / REVIEWS
- As we continue to see a rise in firm-to-firm collaboration within the AEC and design industries, our customers require scanning technologies that allow them to revise and share plans quickly without hassle. The HP Designjet SD and HD Pro Scanners deliver fast and accurate large-format scanning and copying capabilities, helping customers accelerate their design process.
- Alex Moino
- Worldwide Marketing Director, Large Format Printing, HP
- The HP Designjet SD Pro Scanner features a new contact image sensor (CIS) technology with a dual-illuminating system and image enhancement software, helping users accurately reproduce detailed large-format documents at high speeds. Additionally,it seamlessly integrates with existing HP Designjet printers, adding scanning and copying capabilities to streamline customers workflow and improve collaboration.
- Andrew Hand
- PSW Paper and Print Limited
- As we continue to see a rise in firm-to-firm collaboration within the AEC and design industries, our customers require scanning technologies that allow them to revise and share plans quickly without hassle. The HP Designjet SD and HD Pro Scanners deliver fast and accurate large-format scanning and copying capabilities, helping customers accelerate their design process.
- Alex Moino
- Worldwide Marketing Director, Large Format Printing, HP
- The HP Designjet SD Pro Scanner features a new contact image sensor (CIS) technology with a dual-illuminating system and image enhancement software, helping users accurately reproduce detailed large-format documents at high speeds. Additionally,it seamlessly integrates with existing HP Designjet printers, adding scanning and copying capabilities to streamline customers workflow and improve collaboration.
- Andrew Hand
- PSW Paper and Print Limited
- As we continue to see a rise in firm-to-firm collaboration within the AEC and design industries, our customers require scanning technologies that allow them to revise and share plans quickly without hassle. The HP Designjet SD and HD Pro Scanners deliver fast and accurate large-format scanning and copying capabilities, helping customers accelerate their design process.
- Alex Moino
- Worldwide Marketing Director, Large Format Printing, HP
- The HP Designjet SD Pro Scanner features a new contact image sensor (CIS) technology with a dual-illuminating system and image enhancement software, helping users accurately reproduce detailed large-format documents at high speeds. Additionally,it seamlessly integrates with existing HP Designjet printers, adding scanning and copying capabilities to streamline customers workflow and improve collaboration.
- Andrew Hand
- PSW Paper and Print Limited
SPECIFICATIONS
- Model Size
- 1118mm
- Functions
- Copy, Scan
- Speed Specifications
- Linear scan speed
Up to 15 cm/sec (colour, 200 dpi)
Up to 33 cm/sec (greyscale, 200 dpi) - Memory Specifications
- Memory
4GB - Internal storage
Standard, 500GB - Technical Specifications
- Dynamic security
- Line accuracy
+/- 0.1% +/- 1 pixel - Scan resolution, optical
1200 dpi - Enhanced scanning resolution
9600 dpi - Scanner type
CIS scanning technology - Scan size, maximum
1118 mm x 20.1 m; 914 mm x 26 m; 610 mm x 37.9 m; 305 mm x 75.76 m (using a colour original at 200 dpi and TIFF file format) - Scan size, minimum
152 x 114 mm - Copies, maximum
Unlimited - Bit depth
48-bit/16-bit - Paper Handling
- Finished output handling
Straight-through scan paper path for sheet and cardboard originals. Face-up, front entry, rear exit, rewind to front, use document return guide for front-return. - Media types
Non-abrasive paper, sepia, blueprints, plastic, plastic laminate, foam board, cardboard, newspaper (no plywood, stone plates, metal plates or abrasive, dirty, rough, sharp edged, metal clamped, or burned surfaces or transparencies) - Connectivity
- Dual Gigabit Ethernet (1000Base-T)
Hi-Speed USB 3.0 certified - Power and operating requirements
- Power consumption
47 watts (scanning); 32 watts (ready); 1.8 watts (sleep) - Operating temperature range
5 to 40C - Operating humidity range
20 to 80% RH
- Support Printers
HP PageWide XL 8000 Printer
HP PageWide XL 8000 Blueprinter
HP PageWide XL 5000 Printer series
HP PageWide XL 5000 Blueprinter
HP PageWide XL 4000/4500 Printer series
HP DesignJet Z6800 Photo Production Printer
HP DesignJet Z6600 Production Printer
HP DesignJet Z6200 Photo Production Printer
HP DesignJet Z6100 Printer series
HP DesignJet Z5600 PostScript Printer
HP DesignJet Z5400 PostScript Printer
HP DesignJet Z5200 Photo Printer
HP DesignJet Z3200 Photo Printer series
HP DesignJet Z3100 Photo Printer series
HP DesignJet Z2100 Photo Printer series
HP DesignJet T7200 Production Printer
HP DesignJet T7100 Printer series
HP DesignJet T3500 Production MFP
HP DesignJet T2530 Multifunction Printer
HP DesignJet T2500 Multifunction Printer
HP DesignJet T2300 Multifunction Printer
HP DesignJet T1530 Printer series
HP DesignJet T1500 Printer series
HP DesignJet T1300 Printer
HP DesignJet T1200 Printer series
HP DesignJet T1120 Printer series
HP DesignJet T1100 Printer series
HP DesignJet T930 Printer series
HP DesignJet T920 Printer series
HP DesignJet T830 Multifunction Printer
HP DesignJet T795 Printer
HP DesignJet T790 Printer series
HP DesignJet T770 Printer series
HP DesignJet T730 Printer
HP DesignJet T610/T620 Printer series
HP DesignJet T520 Printer series
HP DesignJet 5500 Printer series
HP DesignJet 5100 Printer
HP DesignJet 4500/4520 Printer series
HP DesignJet 4000/4020 Printer series
HP DesignJet 1050C/1055CM Printer series
HP DesignJet 510 Printer series
HP DesignJet 500 Printer series- What's included
- Warranty
One-year limited warranty. Warranty and support options vary by product, country and local legal requirements. - What's in the box
HP SD Pro 1118-mm (44-in) Scanner; Stand; Touchscreen (panel PC); Quick reference guide; Media guides; Setup poster; Copy/Scan software; Documentation software; Ethernet cables (x2); Power cordss
