CONTOUR CUTTING AT ITS BEST

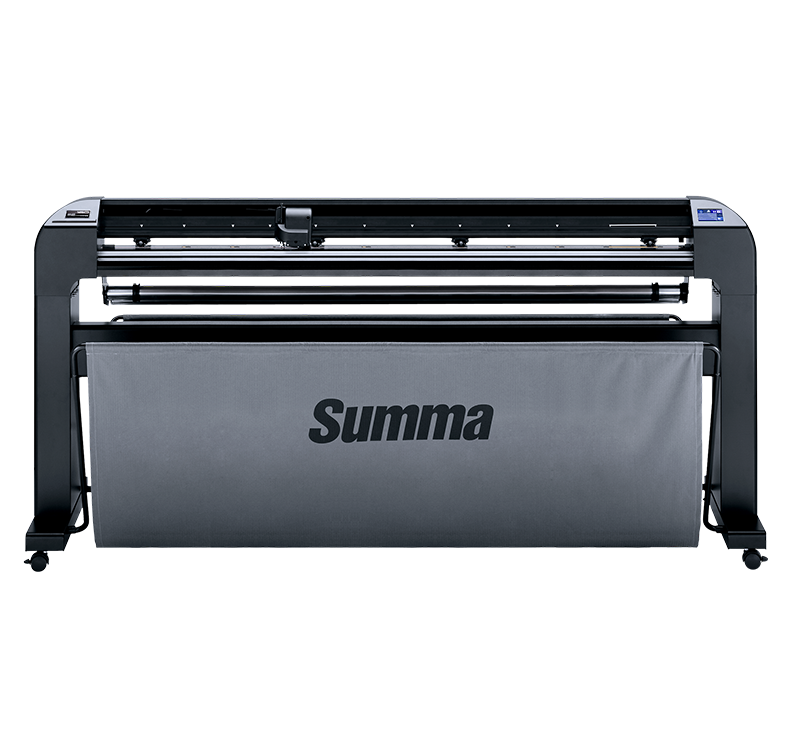

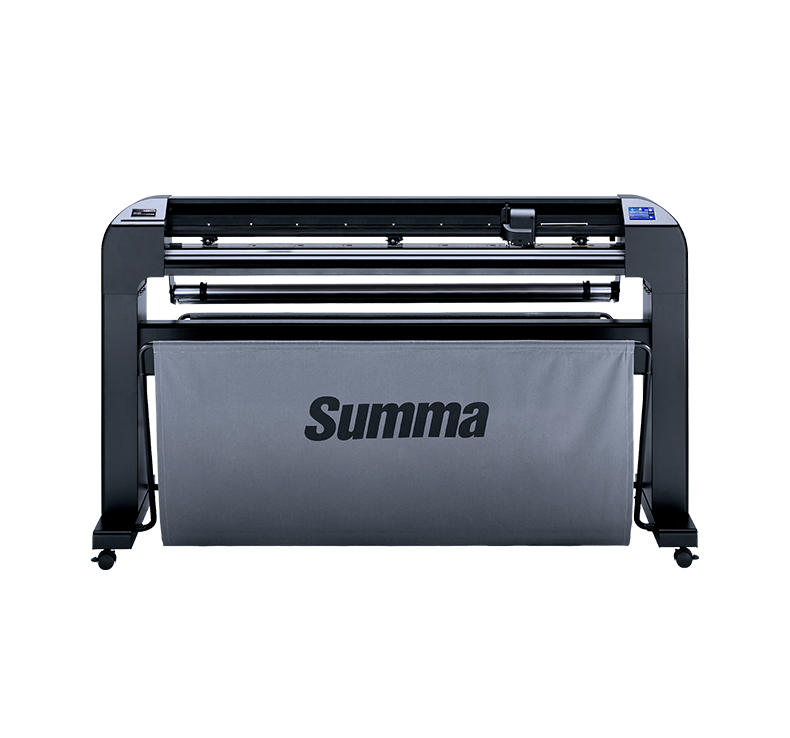

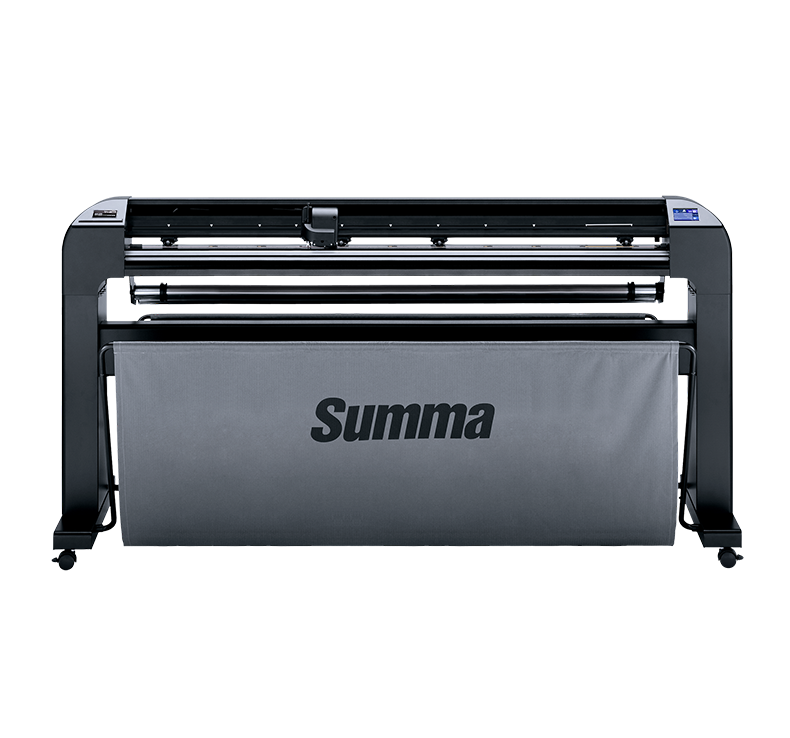

Summa S Class 2 T Series Cutters
Signmaking has evolved, which means, you need equipment that is both flexible and durable. Summa S Class 2 tangential cutters are built on a foundation of rock-solid reliability and offer legendary contour cutting performance for the most demanding of cutting jobs.
Unparalleled accuracy

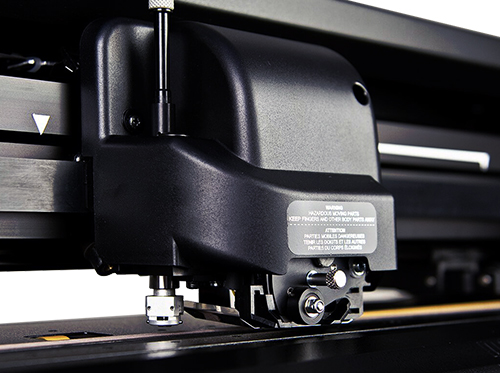

Featuring computer controlled blade rotation and up to 600 grams of cutting force, Summa T Series range combines the precision of a flatbed cutter with the ease and speed of a roll-fed cutter by using our legendary True Tangential cutting head. The T Series simply cuts with more force and accuracy than any cutter in its class.
- Up to 600 grams of cutting force
- 0.25mm cutting accuracy
- Up to 1410mm/sec diagonal cutting speed
- Tangential Cutting Head
Effortless operation

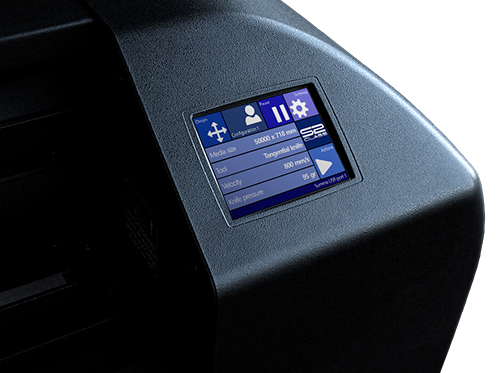

The intuitively redesigned menu system and full-colour touch interface allow for effortless navigation. Tactile and easy to use, the touch screen displays large amounts of information in an easily accessible format.
- High resolution touchscreen interface
- Cut direct from memory stick
- Cut direct from Network
- Cut direct from USB
Automate your workflow

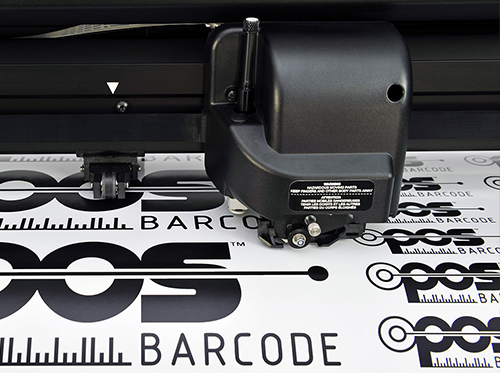

The automated contour alignment system OPOS stands for Optical Positioning System. The OPOS X sensor technology senses marks on a wide range of materials to automate your cutting workflow enabling you to contour cut multiple jobs without intervention.
- OPOS X Sensor
- Automatic cut off knife
- Catch Basket
AWARDS / REVIEWS
- The Summa S Class 2 is a sturdy cutter and after many years are still the cornerstone of the signmakers business. Reliability, performance and quality are the most important features of a Summa cutter. But in a rapidly evolving signmaking market vinyl graphics and lettering cannot be the sole features of a high quality cutter. For over 15 years Summa cutters can cut contour with the utmost accuracy and once again the cutter was substantially to be able to run perfectly in a print and cut workflow.
- Erwin Vandousselaere
- General Manager, Summa
- Using the very latest in tangential cutting technology and rock solid reliability. The Summa S Class 2 series cutter delivers unparalleled cutting precision at high speed and is the cornerstone of any signmakers business.
- Tom Skinner
- PSW Paper & Print Limited
- The Summa S Class 2 is a sturdy cutter and after many years are still the cornerstone of the signmakers business. Reliability, performance and quality are the most important features of a Summa cutter. But in a rapidly evolving signmaking market vinyl graphics and lettering cannot be the sole features of a high quality cutter. For over 15 years Summa cutters can cut contour with the utmost accuracy and once again the cutter was substantially to be able to run perfectly in a print and cut workflow.
- Erwin Vandousselaere
- General Manager, Summa
- Using the very latest in tangential cutting technology and rock solid reliability. The Summa S Class 2 series cutter delivers unparalleled cutting precision at high speed and is the cornerstone of any signmakers business.
- Tom Skinner
- PSW Paper & Print Limited
- The Summa S Class 2 is a sturdy cutter and after many years are still the cornerstone of the signmakers business. Reliability, performance and quality are the most important features of a Summa cutter. But in a rapidly evolving signmaking market vinyl graphics and lettering cannot be the sole features of a high quality cutter. For over 15 years Summa cutters can cut contour with the utmost accuracy and once again the cutter was substantially to be able to run perfectly in a print and cut workflow.
- Erwin Vandousselaere
- General Manager, Summa
- Using the very latest in tangential cutting technology and rock solid reliability. The Summa S Class 2 series cutter delivers unparalleled cutting precision at high speed and is the cornerstone of any signmakers business.
- Tom Skinner
- PSW Paper & Print Limited
‹
›
SPECIFICATIONS
- Cutting type
- True tangential with drag knife cutting mode capability
- Cutting widths
- S2 T75 - 742mm (29.2 inches)
Extended mode: Materal width
S2 T120 - 1200mm (47.2 inches)
Extended mode: Materal width
S2 T140 - 1350mm (53.1 inches)
Extended mode: Materal width
S2 T160 - 1580mm (62.2 inches)
Extended mode: Materal width - Cutting speed
- All S Class 2 models cut at speeds of up to 1414mm (56 inches) per second diagonal
- Axial speed
- Up to 4G
- Maximum acceleration
- Up to 5.5G diagonal
- Alignment type
- OPOS CAM: Optional upgrade on all new Summa S Class 2 S75T, S140T and S160T cutters
Barcode job recognition
Up to 2 x 64 marks on the X-Line
Y-Line compensation - Tracking performance
- Within +/- 0.1mm (+/- 0.004 inches) on plits up to 12 meters long (40 feet); on rolls up to 760mm wide/long up to 4 meters long on rolls over 760mm wide
- Accuracy
- 0.2% of movement or 0.25mm, whichever is greater
- Cutting force
- 0-600 grams of down-force, in 5 grams increments
- Display language
- English, French, German, Dutch, Italian, Spanish, Polish, Czech, Latvian, Lithuanian, Portuguese
- Connectivity
- USB, Ethernet
- Power requirements
- 100-120 / 220-240 VAC, 50/60Hz, 85VA maximum
- Dimensions
- S2 T75- 1410mm x 680mm x 1110mm
S2 T120 -1870mm x 680mm x 1110mm
S2 T140- 2000mm x 680mm x 1110mm
S2 T160- 2250mm x 680mm x 1110mm - Shipping weight
- S2 T75- 69kg
S2 T120 -86kg
S2 T140- 90kg
S2 T160- 114kg - Operating temperature
- 59 to 95 F (15to 35 C)
- Standard accessories
- WinPlot or MacSign Cut Software, CutterControl Parameter Software, CD w/ Manuals and Drivers, Quick Start Guide, Power Cable, USB Cable, Media Guide Flanges (set of 2), 1 Spare Fuse, Standard 36 Blade Holder, 2 Standard 36 Blades, Cut-off Knife (Manual Slitter), 2 Cut-off Razor Blades, Pouncing Pin and Holder, Stand and Basket
- Optional accessories
- Roll-up system for Summa S Class 2 140 and Summa S Class 2 160
