UNPARALLELED CUTTING PERFECTION

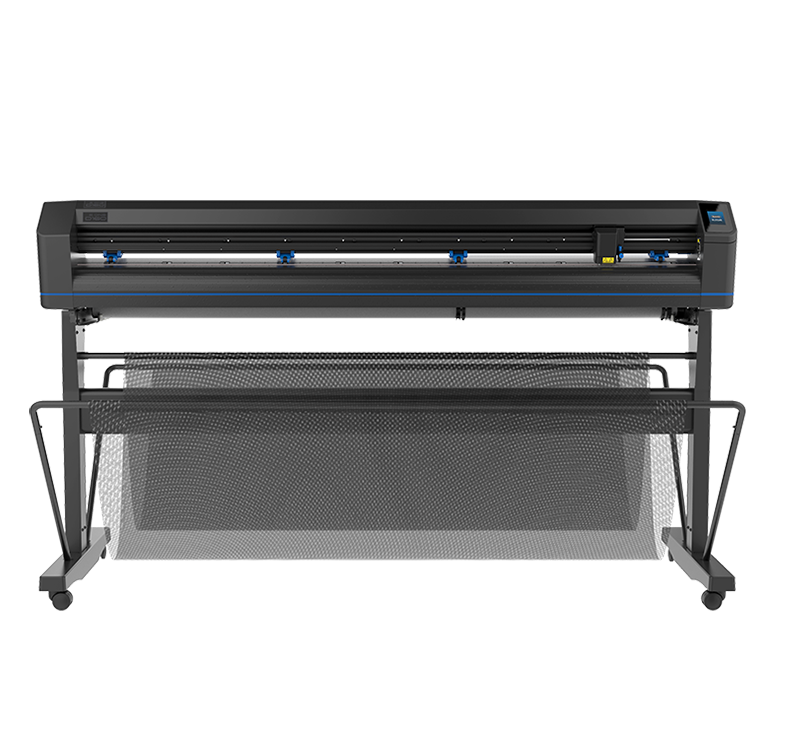

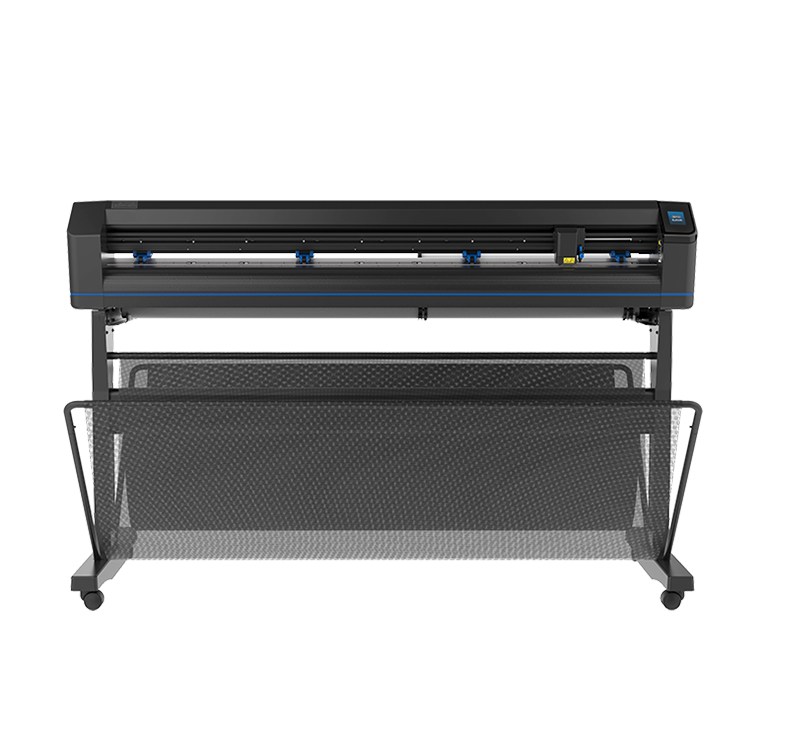

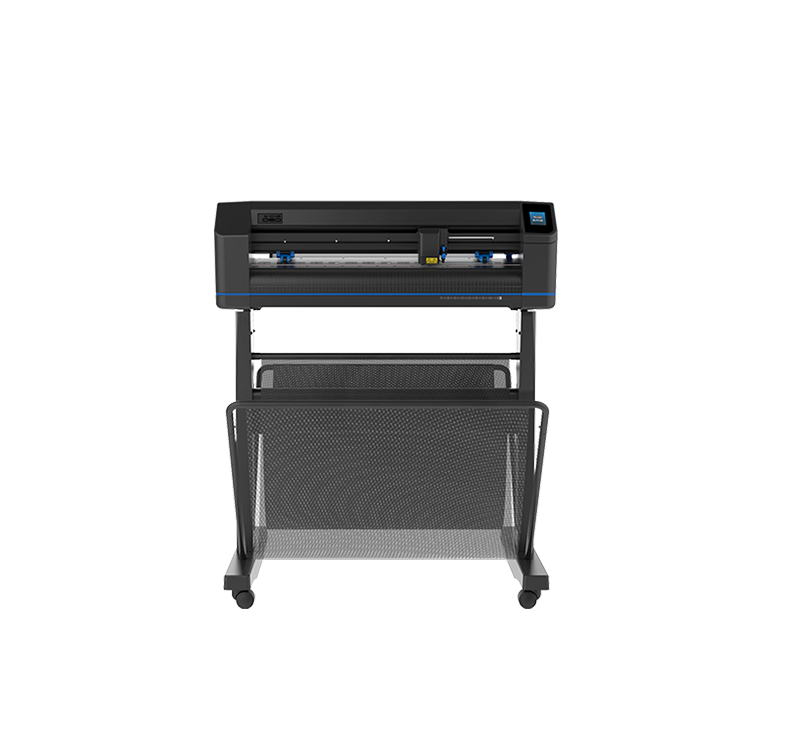

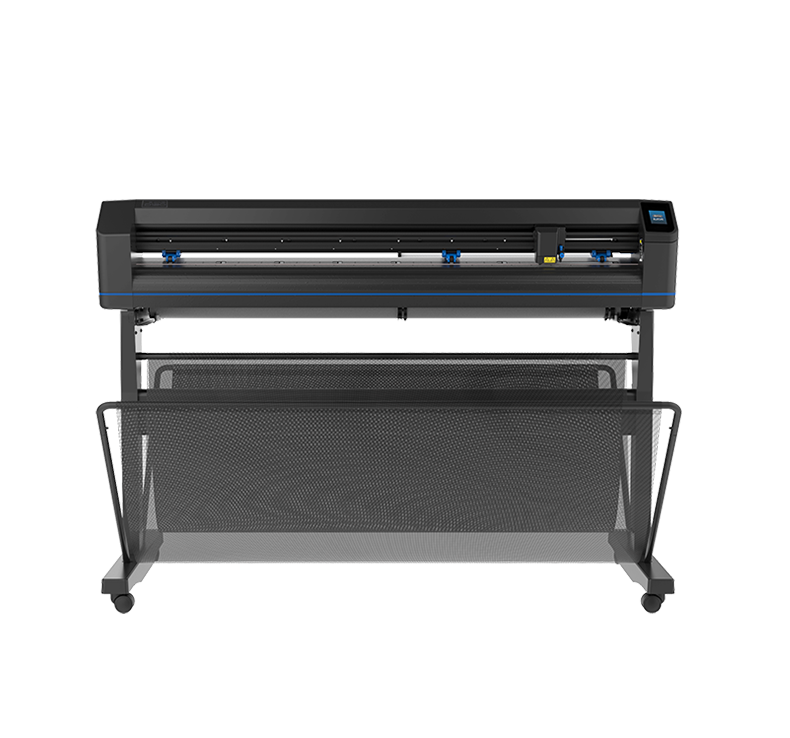

Summa S One Series Cutters
Summa S One cutters are built completely from scratch, based on years of experience and entirely developed with the user in mind. Delivering outstanding and reliable cutting quality over extended lengths of material. The S One cutters offer you that and a whole lot more!
Unmatched cutting precision
Featuring a servo motor drive system, Summa's exclusive MicroSproket drive drum and up to 600 grams of cutting force the Summa S One series delivers jaw-dropping accuracy and spot-on tracking precision up to eight meters long all at high speed.
- Up to 600 grams of cutting force
- 0.25mm cutting accuracy
- Up to 1131mm/sec diagonal cutting speed

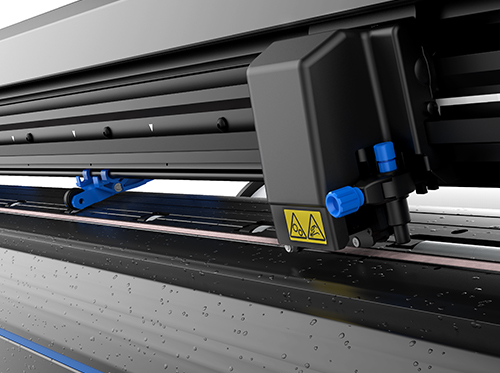

- Drag Cutting Head
Effortless and intuitive operation
The ergonomic designed menu system and full-colour touch interface allow for effortless navigation. Tactile and easy to use, the touch screen displays large amounts of information in an easily accessible format.

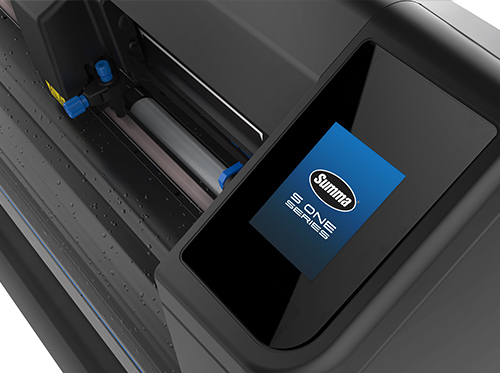

- High resolution touchscreen interface
- Network Connectivity
- USB Connectivity
- WiFi Connectivity
Fully automated workflow
The automated contour alignment system OPOS stands for Optical Positioning System. The OPOS X sensor technology senses 4 to 128 marks on a wide range of materials to automate your cutting workflow enabling you to contour cut multiple jobs without intervention.
- OPOS X Sensor
- Automatic cut off knife
- Catch Basket
AWARDS / REVIEWS
- The S One roll cutter Series is the next step in Summas mid-level cutting machines and replaces the SummaCut Series. By using the experience acquired over many years, with S One we offer you a reliable series that is more powerful and more ergonomic. Ready to enhance your cutting workflow by obtaining unrivalled quality without compromise.
- Erwin Vandousselaere
- General Manager, Summa
- Using the very latest in drag knife cutting technology and rock solid reliability. The Summa S One series cutter delivers unparalleled cutting precision at high speed and is the cornerstone of any signmakers business. Now and for many years to come
- Andrew Hand
- PSW Paper & Print Limited
- The S One roll cutter Series is the next step in Summas mid-level cutting machines and replaces the SummaCut Series. By using the experience acquired over many years, with S One we offer you a reliable series that is more powerful and more ergonomic. Ready to enhance your cutting workflow by obtaining unrivalled quality without compromise.
- Erwin Vandousselaere
- General Manager, Summa
- Using the very latest in drag knife cutting technology and rock solid reliability. The Summa S One series cutter delivers unparalleled cutting precision at high speed and is the cornerstone of any signmakers business. Now and for many years to come
- Andrew Hand
- PSW Paper & Print Limited
- The S One roll cutter Series is the next step in Summas mid-level cutting machines and replaces the SummaCut Series. By using the experience acquired over many years, with S One we offer you a reliable series that is more powerful and more ergonomic. Ready to enhance your cutting workflow by obtaining unrivalled quality without compromise.
- Erwin Vandousselaere
- General Manager, Summa
- Using the very latest in drag knife cutting technology and rock solid reliability. The Summa S One series cutter delivers unparalleled cutting precision at high speed and is the cornerstone of any signmakers business. Now and for many years to come
- Andrew Hand
- PSW Paper & Print Limited
‹
›
SPECIFICATIONS
- Cutting type
- Drag knife with TurboCut and Tangential Emulation Modes
- Tool Compatibility
- Blade, Pen, Pounce Tool
- Media Width
- S1 D60 - 7.9mm to 705mm
- S1 D120 - 13.3mm to 1350mm
- S1 D140 - 18.7mm to 1500mm
- S1 D160 - 18.7mm to 1690mm
- Max Working Width
- S1 D60
590mm x 500mm to 650mm x 50m - S1 D120
1235mm x 500mm to 1295mm x 50m - S1 D140
1385mm x 500mm to 1445mm x 50m - S1 D160
1580mm x 500mm to 1640mm x 50m - Pinch Rollers
- S1 D60 - 2 rollers
- S1 D120 - 3 rollers
- S1 D140 - 4 rollers (3 rollers for FX rdition)
- S1 D160 - 4 rollers
- Alignment type
- OPOS X - OPOS Xtra
- Barcode job recognition
- Up to 2 x 64 marks on the X-Line
- Y-Line compensation
- Tracking performance
- 8 meters max with guaranteed specifications for media less than 762mm
- 4 meters max with guaranteed specifications for media larger than 762mm
- Accuracy
- 0.2% of movement or 0.25mm, whichever is greater
- Speed
- Up to 1131mm/s diagonal
- Acceleration
- Up to 3G diagonal
- Cutting force
- 0-600 grams of down-force, in 5 grams increments
- 0-400 grams of down-force, in 5 grams increments (FX edition)
- Replot Memory
- 10MB
- Other Features
- FlexCut (Cutting Through)
- Display language
- English, French, German, Dutch, Italian, Spanish, Polish, Czech, Latvian, Lithuanian, Portuguese

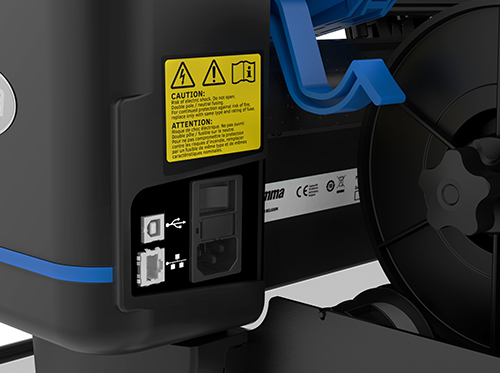

- Connectivity
- USB, Ethernet, WiFi
- Power requirements
- 100-240 VAC, 50/60Hz
- Dimensions
- S1 D60 - 970mm x 406mm x 304mm
- S1 D120 - 1615mm x 704mm x 1112mm
- S1 D140 - 1960mm x 704mm x 1112mm
- S1 D160 - 2250mm x 704mm x 1112mm
- Shipping weight
- S1 D60 - 18kg
- S1 D120 - 43kg
- S1 D140 - 43.5kg
- S1 D160 - 48kg
- Operating temperature
- 59 to 95 F (15 to 35 C)
- Standard accessories
- Summa GoSign software, Summa CutterControl & MacSign plug-ins, Quick Start Guide, Power Cable, USB Cable, Media Guide Flanges (set of 2), Standard 36 Blade Holder, 2 Standard 36 Blades, Cut-off Knife (Manual Slitter), 2 Cut-off Razor Blades.
- Optional accessories
- Floor Stand (S1 D60 only), Catch Basket (S1 D60 only), Floor Stand and Catch Basket (S1 D60 only), Tray One Sheet Feeder (S1 D60 only)
