VERSATILITY AT IT'S BEST
Summa F Series Flatbed Finishing Solutions
Summa’s professional flatbed finishing systems are an award-winning range of solutions capable of producing innovative signage, displays, samples, packaging applications, and more. With an ever increasing arsenal tools and optional add-ons, this is the breakthrough cutting solution you’ve been dreaming about.
Over 20 tools and counting
With over 20 heavy-duty tools and over 70 knives, creasing tools, pens and routing bits the possibility to automate your production workflow is positively endless.
- 20 Tools
- 16 Routing Bits
- 30 Knives
- 5 Creasing Tools

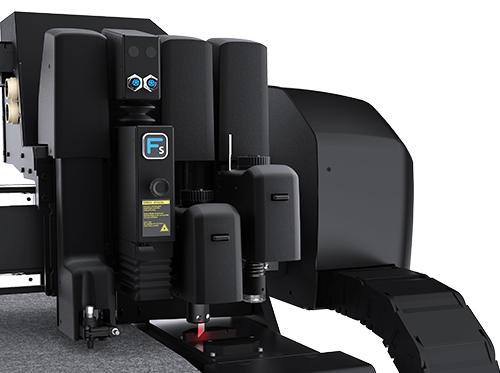

One machine, many functions
No other machine can match the versatility and adaptability of the Summa F Series. Its heavy duty construction, accuracy and multi-functional head allows you to install up to three tools simultaneously.
- Drag Module
- Tangential Module
- Routing Module
- Rotary Module

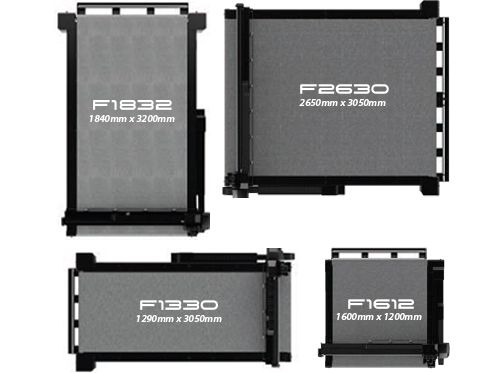

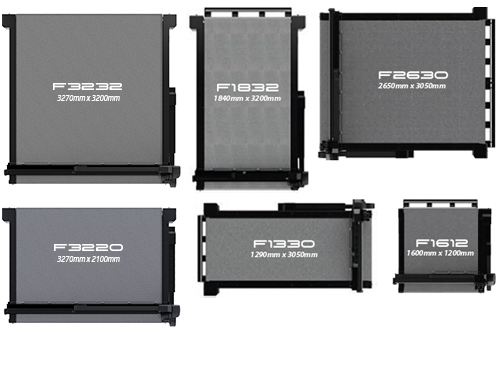

Big, bigger, biggest
Available in six different sizes the Summa F series has been designed to expand your production capabilities whatever the size of production you need.
- 1600mm x 1200mm working area
- 1600mm x 2500mm working area
- 1432mm x 3200mm working area
- 1840mm x 3200mm working area
- 3270mm x 2100mm working area
- 3270mm x 3200mm working area

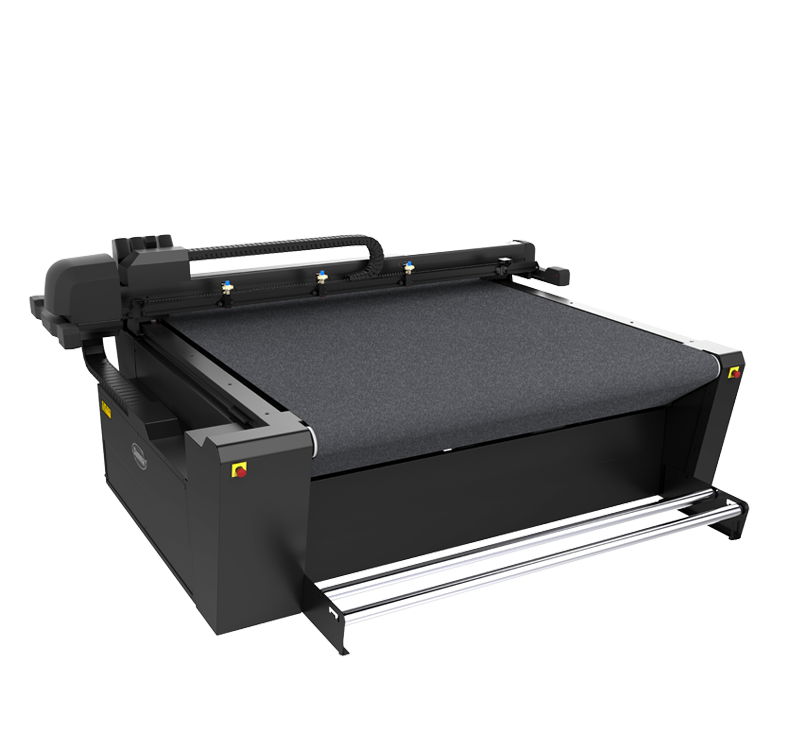

Easy media handling
Multiple material handling options ensure optimum workflow for roll, sheet and board material. Pneumatically driven media advance clamps hold the material down while pulling it forward in order to work continuously in panels or multiple jobs.
- Pneumatically driven media advance clamps
- Conveyor & roll support system
- Front & rear working zones
AWARDS / REVIEWS
- Efficiency, productivity, and sustainability are indispensable features in the sign-making market. However, to achieve a high-quality final product, you also need efficient finishing. Outsourcing finishing is very time-consuming and will delay the production process. Adding a one-fits-all finishing cutter to your print workflow is thus of infinite importance. Coordination of printing and cutting systems is unquestionably a key factor to assure an integrated and smooth workflow
- Andrew Hand
- PSW Paper & Print Limited
- An award-winning finishing solution for producing innovative signage, displays, samples, packaging applications, and more. With an ever-increasing arsenal of tools and optional add-ons, this is the breakthrough cutting solution you have been dreaming about.
- Tom Skinner
- PSW Paper & Print Limited
- A powerhouse in modern finishing, the F Series continues to redefine what professionals can expect from a flatbed cutting system. Its precision, flexibility, and ever-expanding toolset make it the ultimate solution for producing high-impact signage, intricate displays, packaging prototypes, and countless creative applications. This is the kind of breakthrough technology that transforms workflows and elevates businesses.
- Andrew Hand
- PSW Paper & Print Limited
- Developed for professionals who push boundaries, the F Series brings together intelligent automation, high-precision cutting, and unmatched versatility in one robust system. Whether producing custom dcor, shaping complex materials, or crafting premium packaging, it offers a seamlessly scalable solution that grows with your creative ambitions.
- Tom Skinner
- PSW Paper & Print Limited
- Designed with the future of finishing in mind, the F Series delivers a level of power, control, and adaptability that sets it apart in the industry. From demanding, high-volume environments to intricate custom work, it provides exceptional consistency and creative freedom, making it the go-to solution for businesses striving to deliver excellence on every project.
- Andrew Hand
- PSW Paper & Print Limited
SPECIFICATIONS
- Dimensions
- F1612 - 2470mm x 2200mm x 1100mm
(without roll support)
F1625 - 2470mm x 3330mm x 1100mm
(without roll support)
F1432 - 2300mm x 4220mm x 1220mm
(without roll support)
F1832 - 2790mm x 4220mm x 1220mm
(without roll support)
F3220 - 4220mm x 3130mm x 1220mm
(without roll support)
F3232 - 4220mm x 4220mm x 1220mm
(without roll support) - Working Area
- F1612 - 1600mm x 1200mm
(up to 50m long in multi-panel)
F1625 - 1600mm x 2500mm
(up to 50m long in multi-panel)
F1432 - 1360mm x 3200mm
(up to 50m long in multi-panel)
F1832 - 1840mm x 3200mm
(up to 50m long in multi-panel)
F3220 - 3270mm x 2100mm
(up to 50m long in multi-panel)
F3232 - 3270mm x 3200mm
(up to 50m long in multi-panel) - Vacuum
- F1612 - 1.3 kW (50Hz) / 1.75 kW (60Hz)
F1625 - 2 x 1.3 kW (50Hz) / 2 x 2 kW (60Hz)
F1432 - 2.2 kW (50Hz) / 2.55 kW (60Hz)
F1832 - 2 x 2.2 kW (50Hz) / 2 x 2.55 kW (60Hz)
F3220 - 2 x 2.2 kW (50Hz) / 2 x 2.55 kW (60Hz)
F3232 - 2 x 2.2 kW (50Hz) / 2 x 2.55 kW (60Hz) - Vacuum Zones
- F1612 - 4 zones (4 columns)
F1625 - 4 zones (2 rows x 4 columns)
F1432 - 6 zones (2 rows x 3 columns)
F1832 - 8 zones (2 rows x 4 columns)
F3220 - 7 zones (1 row x 7 columns)
F3232 - 14 zones (2 rows x 7 columns)
- Multi panel *
- 5 meters
* Media clamps and roll-feed and/or conveyor belt system are required - Repeatability
- Within +/- 0.05mm on plots
- Accuracy
- 0.05% of move or 0.05mm, whichever is greater
- Speed
- Up to 1000mm/sec
- Acceleration
- Up to 1G
- Clearance *
- 50mm
* Distance between vacuum table and Y-beam. Not taking into account the thickness of a cutting mat or conveyor belt - Maximum Allowed Forces
- Vertical: 200 Newton, Horizontal: 200 Newton
- Maximum Table Load
- 50 kg/m2
- Connectivity
- USB
- Power Requirements
- 3 Phase 208V+N or 3 Phase 230V or 3 Phase 400V+N
- Weight
- F1612 - 500kg
F1625 - 1000kg
F1432 - 1550kg
F1832 - 1680kg
F3220 - 1760kg
F3232 - 1974kg - Warranty
- 2 Years ND OS Warranty
- Standard Accessories
- Drag Knife Module, Conveyor System, Roll-Feed System, Advanced Safety System, Pneumatic Pack, Automatic Depth Control (ADC) (Left & Right), standard 36 blade holder, 1 standard blade, 1 fiber-tip pen, hex screwdriver (4mm), hex screwdriver (2.5mm), USB cable (3 meter), USB extension cable (0.5 meter), media guide flanges (set of 2), Summa GoProduce Software, CD w/ manuals and drivers.
- Optional Accessories
- Tangential Knife Module, Routing System, HF Routing System, High Torque Rotary Module, Electronic Oscillating Tool, Pneumatic Oscillating Tool, Kiss Cutting Tool, Single Edge Cutout Tool, Double Edge Cutout Tool, Heavy Duty Cutout Tool, Creasing Tools, V-Cut Tools, Perforating Tool, Bevel Cut Tool, Corrugated Tool.
