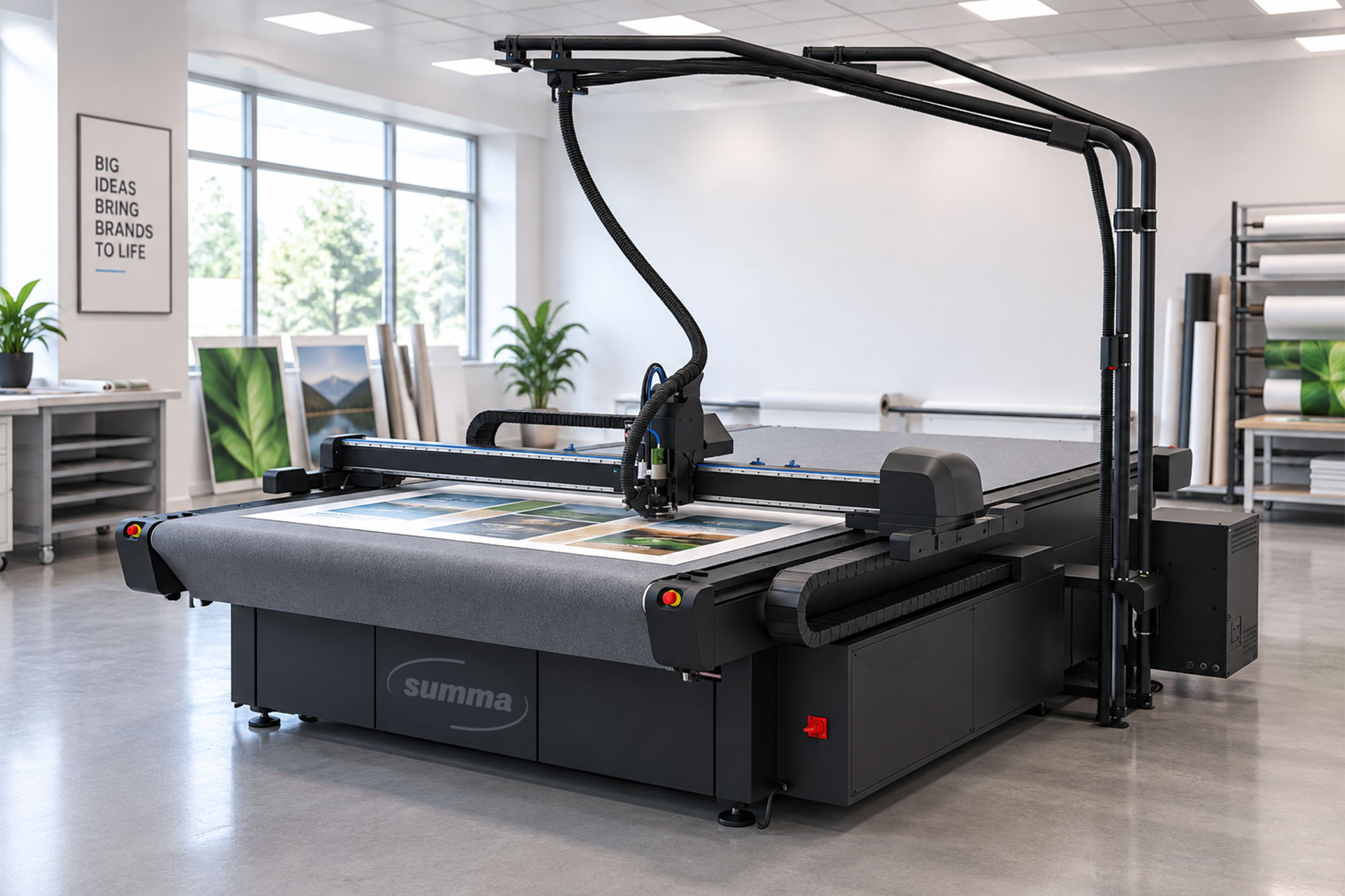

Summa F Series Vantage Flatbed Finishing Solutions

PRECISION MEETS PRODUCTIVITY

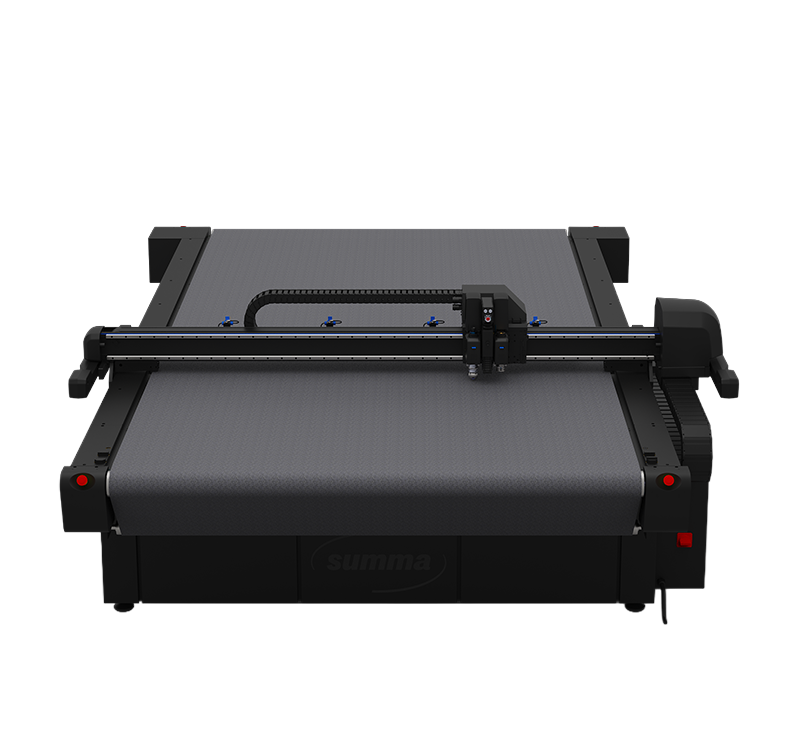

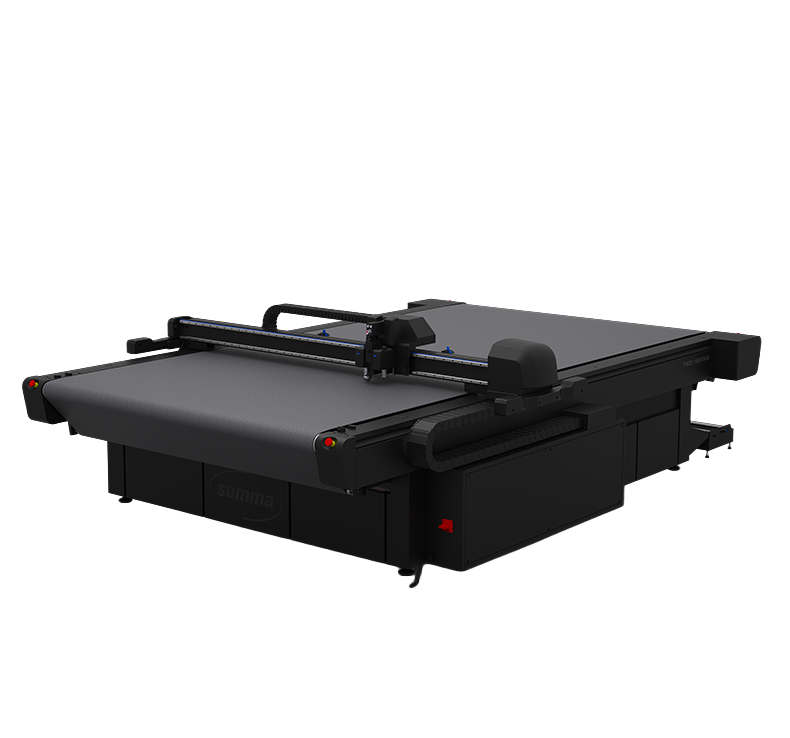

Summa F Series Vantage Flatbed Cutting Systems

The Summa F Series Vantage is the latest generation of professional flatbed cutting systems, combining precision cutting, versatile tooling and intelligent automation. Designed for signage, displays, packaging, textiles and industrial applications, the range offers improved cutting performance, automated setup and a choice of table sizes to suit a wide variety of production requirements.

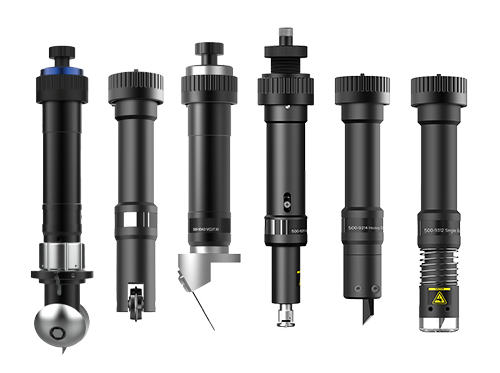

Advanced tooling for every application

The F Series Vantage offers a wide selection of cutting, creasing and routing tools for processing everything from flexible printed media to rigid boards and specialist materials. Its modular tooling system allows operators to switch between applications with ease, while automatic tool and blade recognition helps reduce setup time and simplify job preparation.

  • Fast+ Module
  • Fast+ Module
  • Core+ Module
  • Core+ Module
  • High-Frequency Routing
  • Routing Tools
  • Automated Tool Recognition
  • Specialist Cutting Tools

One machine, many functions

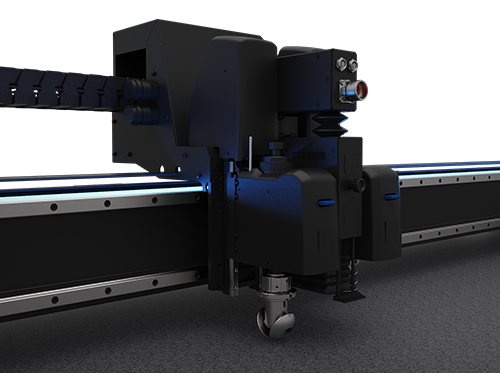

The F Series Vantage combines cutting, creasing and routing in one versatile finishing system, with a multifunctional head accommodating up to three modules simultaneously. A choice of specialist tools allows the machine to be configured for a wide range of applications, from intricate contour cutting to demanding rigid material processing.

  • Precision Cutting
  • Precision Cutting
  • Specialist Cutting Tools
  • Creasing & Folding
  • High-Frequency Routing
  • High-Frequency Routing
  • Automated Tool Recognition
  • Automated Tool Recognition

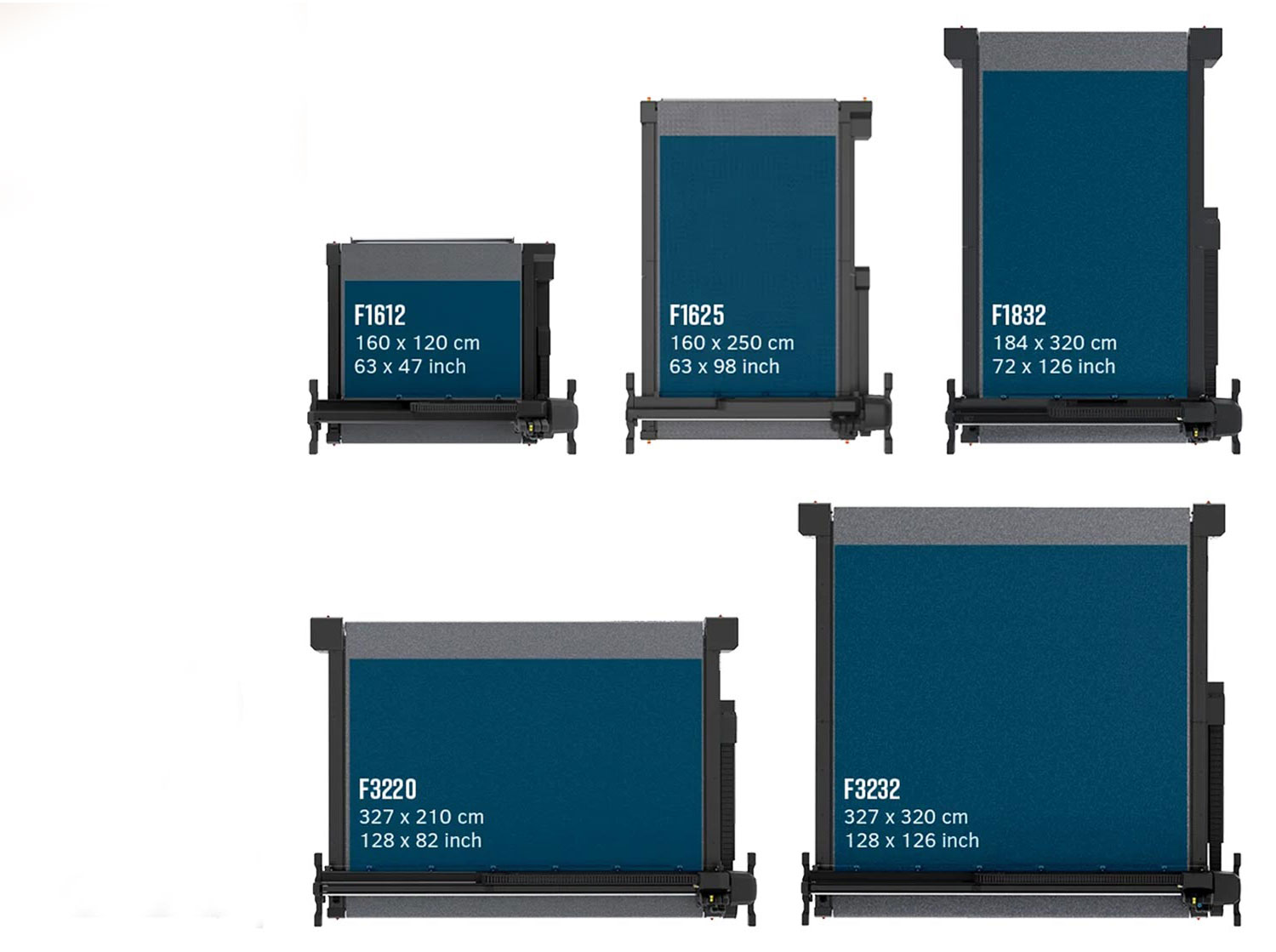

Big, bigger, biggest

Available in five standard sizes, the Summa F Series Vantage offers a flatbed cutting solution for everything from smaller finishing environments to large-scale production. Whether processing individual sheets, full-size rigid boards or wide-format textiles, the range provides the working area and flexibility to suit your production requirements.

  • F1625 - 1625mm x 1200mm working area
  • 1600mm x 1200mm working area
  • F1612 - 1600mm x 2500mm working area
  • 1600mm x 2500mm working area
  • F1832 - 1840mm x 3200mm working area
  • 1840mm x 3200mm working area
  • F3220 - 3270mm x 2100mm working area
  • 3270mm x 2100mm working area
  • F3232 - 3270mm x 3200mm working area
  • 3270mm x 3200mm working area

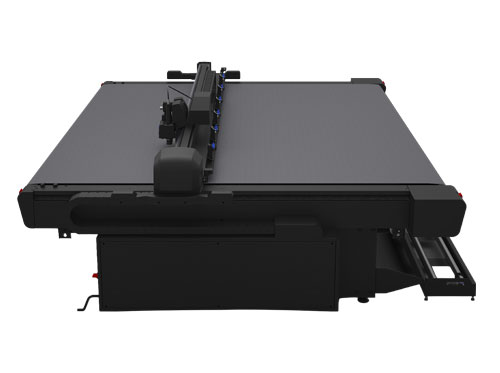

Easy media handling

The F Series Vantage offers a range of material handling options for roll, sheet and board materials, including conveyor and roll support systems that help reduce manual handling and maintain a continuous workflow. Optional heavy-duty roll support and flexible working-zone configurations make it easier to process larger materials and prepare the next job while production continues.

  • Automated Media Advance
  • Automated Media Advance
  • Conveyor & Roll Support Systems
  • Conveyor & Roll Support Systems
  • Flexible Working Zones
  • Flexible Working Zones

AWARDS / REVIEWS

  • "The new F Series Vantage builds on the versatility of the original F Series, with improved automation and a more efficient cutting process. It's a great option for businesses looking to expand their finishing capabilities and take on a wider range of work."
  • Andrew Hand
  • PSW Paper & Print Limited
  • "One of the biggest advantages of the Vantage is the range of materials it can handle. From printed graphics and packaging to rigid boards and textiles, the choice of tooling makes it a very flexible machine for everyday production."
  • Tom Skinner
  • PSW Paper & Print Limited
  • "The automatic tool recognition and calibration features are a welcome addition to the F Series. They help simplify setup and make it easier for operators to move between different jobs without spending unnecessary time adjusting the machine."
  • Andrew Hand
  • PSW Paper & Print Limited
  • "With five table sizes available, there's plenty of choice for businesses working with different materials and sheet sizes. The larger models are particularly interesting for companies looking to increase their production capacity."
  • Tom Skinner
  • PSW Paper & Print Limited
  • "The Vantage offers a good combination of cutting performance, versatile tooling and straightforward operation. For businesses looking to bring more finishing work in-house, it's certainly a range worth considering."
  • Andrew Hand
  • PSW Paper & Print Limited

SPECIFICATIONS

  • Dimensions
    • F1612 - 2470mm x 2200mm x 1100mm
      (without roll support)

      F1625       - 2470mm x 3330mm x 1100mm
      (without roll support)

      F1832 - 2790mm x 4220mm x 1220mm
      (without roll support)

      F3220 - 4220mm x 3130mm x 1220mm
      (without roll support)

      F3232 - 4220mm x 4220mm x 1220mm
      (without roll support)
  • Working Area
    • F1612 - 1600mm x 1200mm
      (up to 50m long in multi-panel)

      F1625       - 1600mm x 2500mm
      (up to 50m long in multi-panel)

      F1832 - 1840mm x 3200mm
      (up to 50m long in multi-panel)

      F3220 - 3270mm x 2100mm
      (up to 50m long in multi-panel)

      F3232 - 3270mm x 3200mm
      (up to 50m long in multi-panel)
  • Vacuum
    • F1612 - 1.3 kW (50Hz) / 1.75 kW (60Hz)

      F1625       - 2 x 1.3 kW (50Hz) / 2 x 2 kW (60Hz)

      F1832- 2 x 2.2 kW (50Hz) / 2 x 2.55 kW (60Hz)

      F3220 - 2 x 2.2 kW (50Hz) / 2 x 2.55 kW (60Hz)

      F3232 - 2 x 2.2 kW (50Hz) / 2 x 2.55 kW (60Hz)
  • Vacuum Zones
    • F1612 - 4 zones (1 x row x 4 columns)

      F1625       - 4 zones (2 rows x 4 columns)

      F1832 - 8 zones (2 rows x 4 columns)

      F3220 - 7 zones (1 row x 7 columns)

      F3232 - 14 zones (2 rows x 7 columns)
  • Multi panel *
    • 5 meters

      * Media clamps and roll-feed and/or conveyor belt system are required
  • Repeatability
    • Within +/- 0.05mm on plots
  • Accuracy
    • 0.05% of move or 0.05mm, whichever is greater
  • Speed
    • Up to 1000mm/sec
  • Acceleration
    • Up to 1G
  • Clearance *
    • 50mm

      * Distance between vacuum table and Y-beam. Not taking into account the thickness of a cutting mat or conveyor belt
  • Maximum Allowed Forces
    • Vertical: 200 Newton, Horizontal: 200 Newton
  • Maximum Table Load
    • 50 kg/m2
  • Connectivity
    • USB
  • Power Requirements
    • 3 Phase 208V+N or 3 Phase 230V or 3 Phase 400V+N
  • Weight
    • F1612- 500kg

      F1625 - 1000kg

      F1832- 1680kg

      F3220- 1760kg

      F3232- 1974kg
  • Warranty
    • 2 Years ND OS Warranty
  • Standard Accessories
    • Drag Knife Module, Conveyor System, Roll-Feed System, Advanced Safety System, Pneumatic Pack, Automatic Depth Control (ADC) (Left & Right), standard 36 blade holder, 1 standard blade, 1 fiber-tip pen, hex screwdriver (4mm), hex screwdriver (2.5mm), USB cable (3 meter), USB extension cable (0.5 meter), media guide flanges (set of 2), Summa GoProduce Software, CD w/ manuals and drivers.
  • Optional Accessories
    • Drag Module, Core+ Module, Fast+ Module, Rotary Module, Standard Router System, 3.7kW HF Router Module, Kiss Cutting Tool, Single Edge Cutout Tool, Heavy Duty Cutout Tool, Perforating Tool, Bevel Cut Tool, High Precision Cutout Tool, Rigid Material Cutout Tool, Electronic Oscillating Tool, Corrugated Tool, Pneumatic Oscillating Tool, Pneumatic Oscillating Tool (Long), Creasing Tools, V Cut Tools, Power EOT
